5-15
5
Inspection machine settings
2.6 Editing signal tower settings
This section describes how to specify signal tower display settings for all machine statuses. Settings are
specified for the first lamp to the third lamp. (The signal tower lamps are arranged in order first lamp, second
lamp, third lamp, from top to bottom.)
Signal tower display settings
Signal tower display settings are specified for all machine statuses. "No Control", "OFF", "BLINK", or "ON" can be set for
each lamp. Refer to the following table for details on the items that can be set.
Buzzer settings
Buzzer ON/OFF settings are specified for all machine statuses.

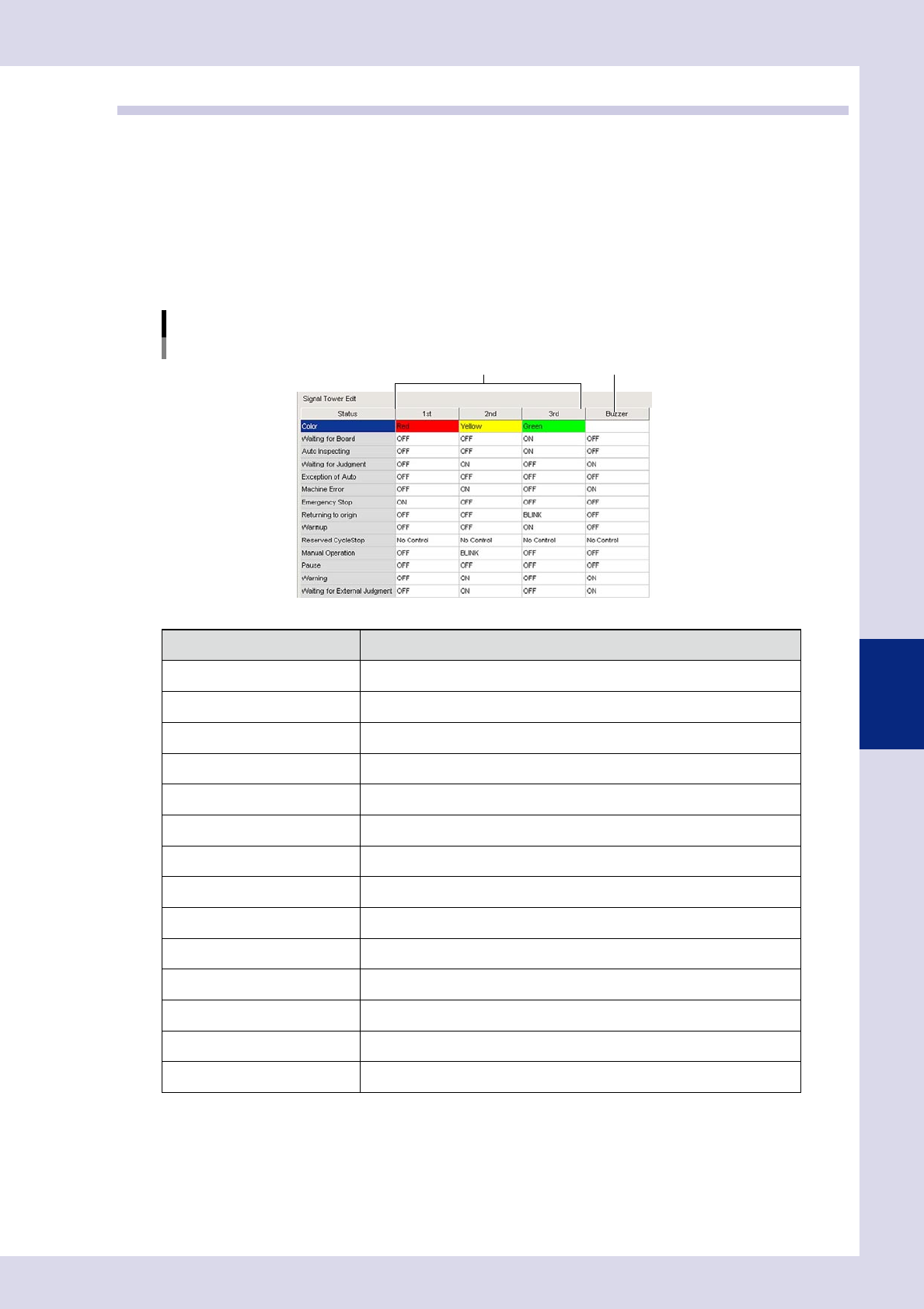

"Machine settings" screen
"Setting" m "Machine Information" m "Signal Tower Edit"
Signal tower display settings Buzzer setting
24516-P6-00
Item Status
Color Lamp color display
Waiting for Board Waiting for board loading
Auto inspecting During automatic inspection
Waiting for Judgment Waiting for judgment from secondary judgment, semi-auto screen
Exception of Auto Other than automatic inspection
Machine Error During machine error
Emergency Stop Emergency stop condition
Returning to origin Returning to origin
Warmup Performing a warmup
Reserved CycleStop Awaiting cycle stop
Manual Operation During manual operation
Pause Operation paused
Warning During machine warning
Waiting for External Judgment Waiting for judgment from Remote Judgment Station (option)
5-16
5
Inspection machine settings
2.7 Data conversion settings
Specifies detailed settings when converting mount data to inspection machine data.
TIP
For details on data conversion operation, see section 2.2, "Data conversion", in Chapter 2.

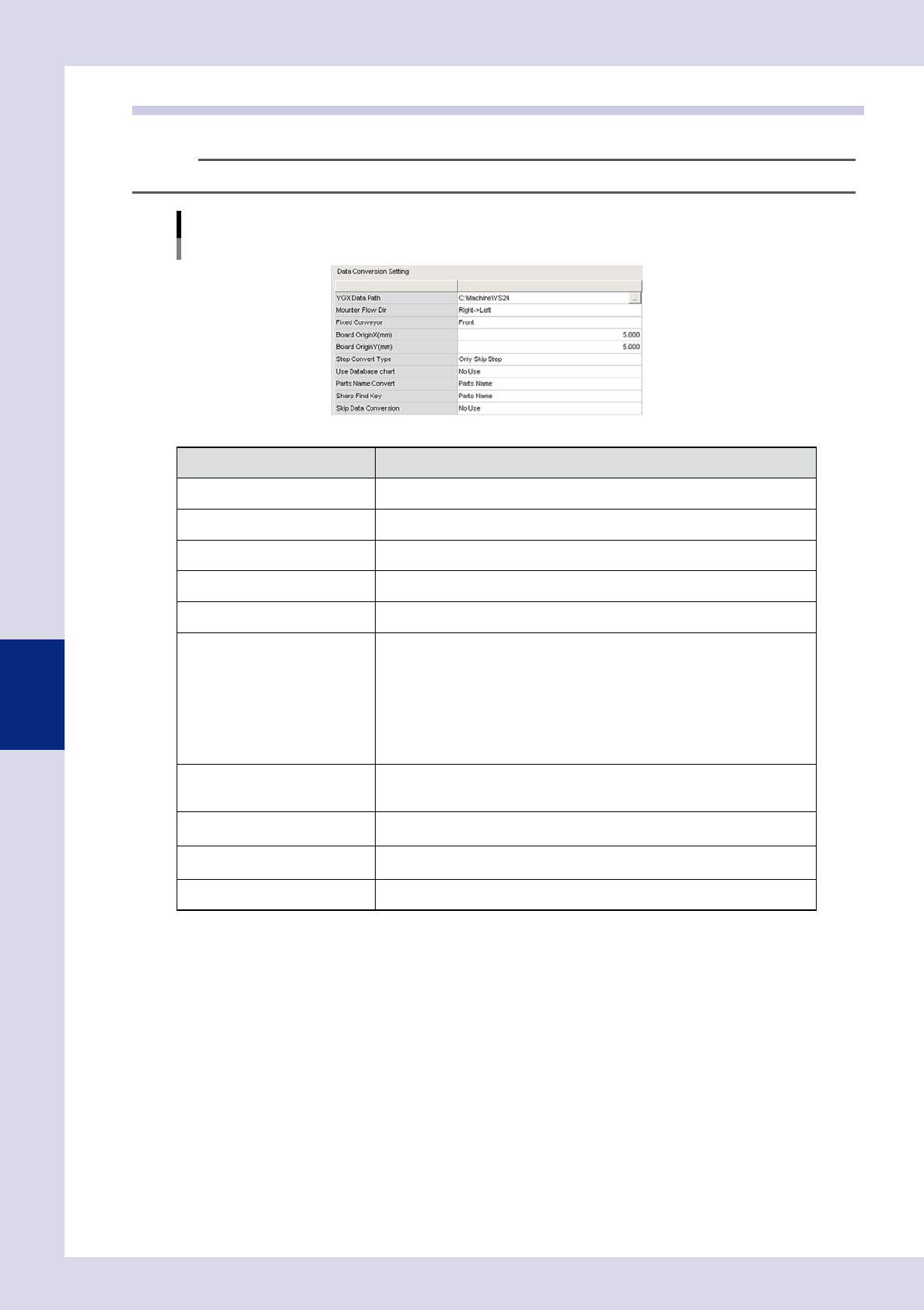

"Machine settings" screen
"Setting" m "Machine Information" m "Data Conversion Setting"
24517-P6-00
Item Details
YGX Data Path Specifies the folder in which the YGX data to be converted is saved.
Mounter Flow Dir Selects the mounter flow direction.
Fixed Conveyor Selects the mounter fixed side conveyor.
Board OriginX(mm) Enter the board origin X coordinate to be converted.
Board OriginY(mm) Enter the board origin Y coordinate to be converted.
Step Convert Type
Selects the step conversion type from the following.
• Only Skip Step
Only reference steps for the parts exterior size are created.
• Inspection Step
Reference steps and parts check steps for the parts exterior size (some steps
will also be OK) are created.
• Inspection + Visual Step"
Reference steps and parts check steps for the parts exterior size (all steps will
be NG) are created.
Use Database chart
If set to "Use", the library parts names set in the library table are set for the step
library parts names when converting data. If set to "No Use", library parts names
are not set when converting data.
Parts Name Convert
Specifies whether to set the YGX data "Parts Name" or "Comment" as the
inspection data parts name when converting data.
Sharp Find Key
Specifies whether to set the library table "Parts Name" or "Comment" as the
inspection data parts name when converting data.
Skip Data Conversion Sets whether to convert parts skipped in YGX data to inspection machine data.
