1.2 Button area's functions
The functions that can be used by pressing each menu button in the "Button area" are described below.
The contents of the "Free area" change according to the selected menu button. Each screen that opens by press-
ing a menu button is described on the following pages.
Button area
1
2
3
4
5
6
7
8
9
10
11
12
13
24102-P6-00
n
Button area
Button name Function
1 Setup
Opens the "Setup" screen used to manage programs. (See 1.3, "Setup screen", in this
chapter.)
2 Data Edit
Opens the "Data Edit" screen used to edit inspection data. (See 1.4, "Data Edit screen",
in this chapter.)
3 Auto
Opens the "Auto Inspection" screen used to perform auto board inspection.
(See 1.5, "Auto Inspection screen", in this chapter.)
4 Unit
Opens the "Unit (manual operation)" screen. (See 1.6, "Unit (manual operation) screen",
in this chapter.)
5 MIS
Displays errors that have occurred and operation history. (See 1.7, "History", in this
chapter.)
6 Save
Saves inspection programs.
After editing data on each screen, pressing this [Save] button opens a confirmation
dialog. Press the [OK] button in the confirmation dialog to save the edited data.
7 Change
Unloads the board in the inspection machine and loads another board into the machine.
Also press this button to load a board into the inspection machine where no board is
loaded.
8 Operator
Selects the operator who will be operating the inspection machine. (See Chapter 5, "1.
Operator management", in this manual.)
9 Machine
Opens a screen used to specify inspection machine settings. (See Chapter 5, "2.
Machine settings", in this manual.)
10 Off Exits the inspection machine software and Windows.
11 Language
Displays the current inspection machine application language. Select from the drop-down
list to change the language.
12 Operation method Displays INLINE/OFFLINE.
13 Version Displays the current inspection machine application version.
* This cannot be used with offline software YSi-OS (option).
1-3
1
asic operation

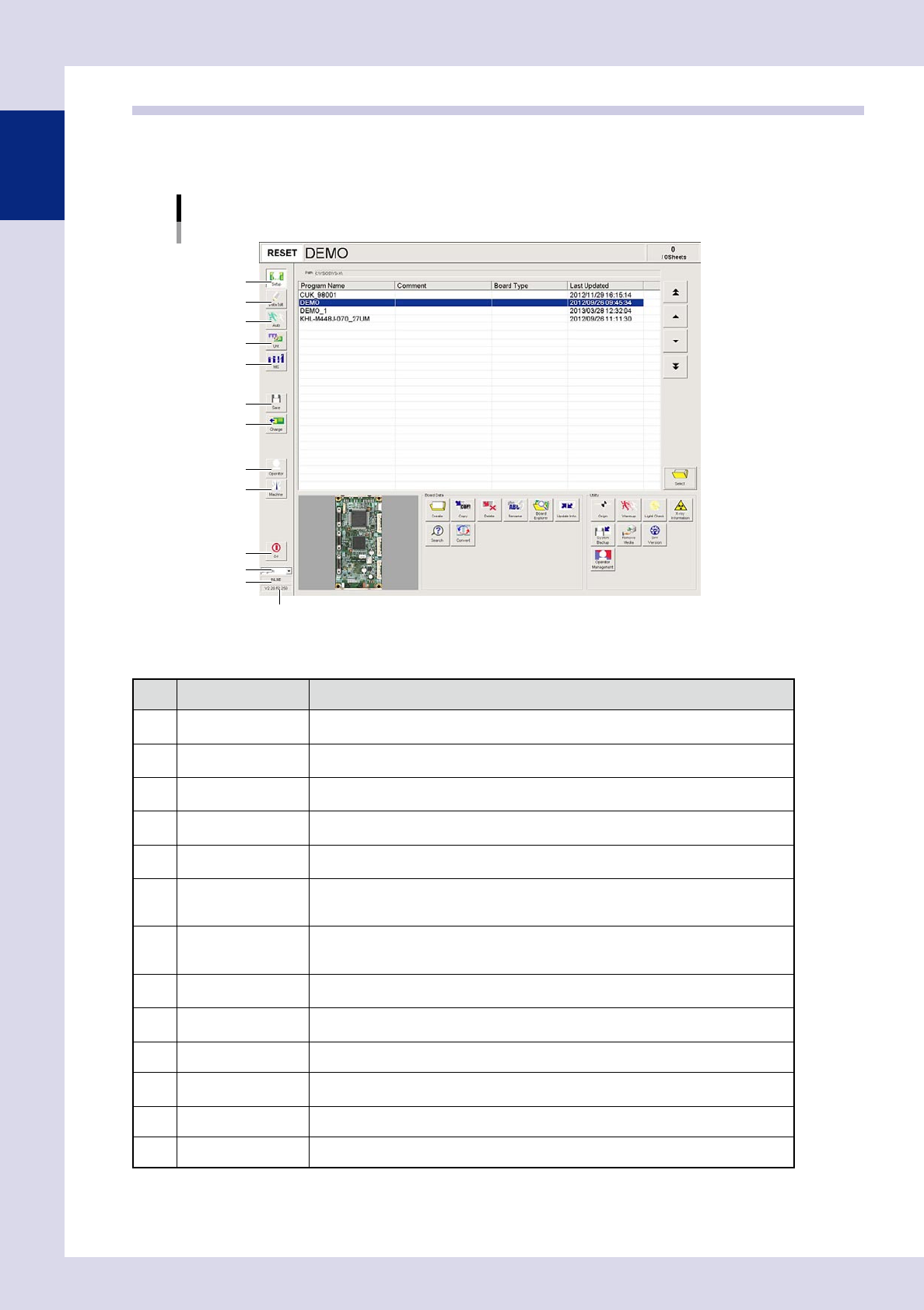

1.3 Setup screen
The "Setup" screen allows you to manage inspection programs and specify settings for all utilities. The items
and buttons displayed on the screen are described below.

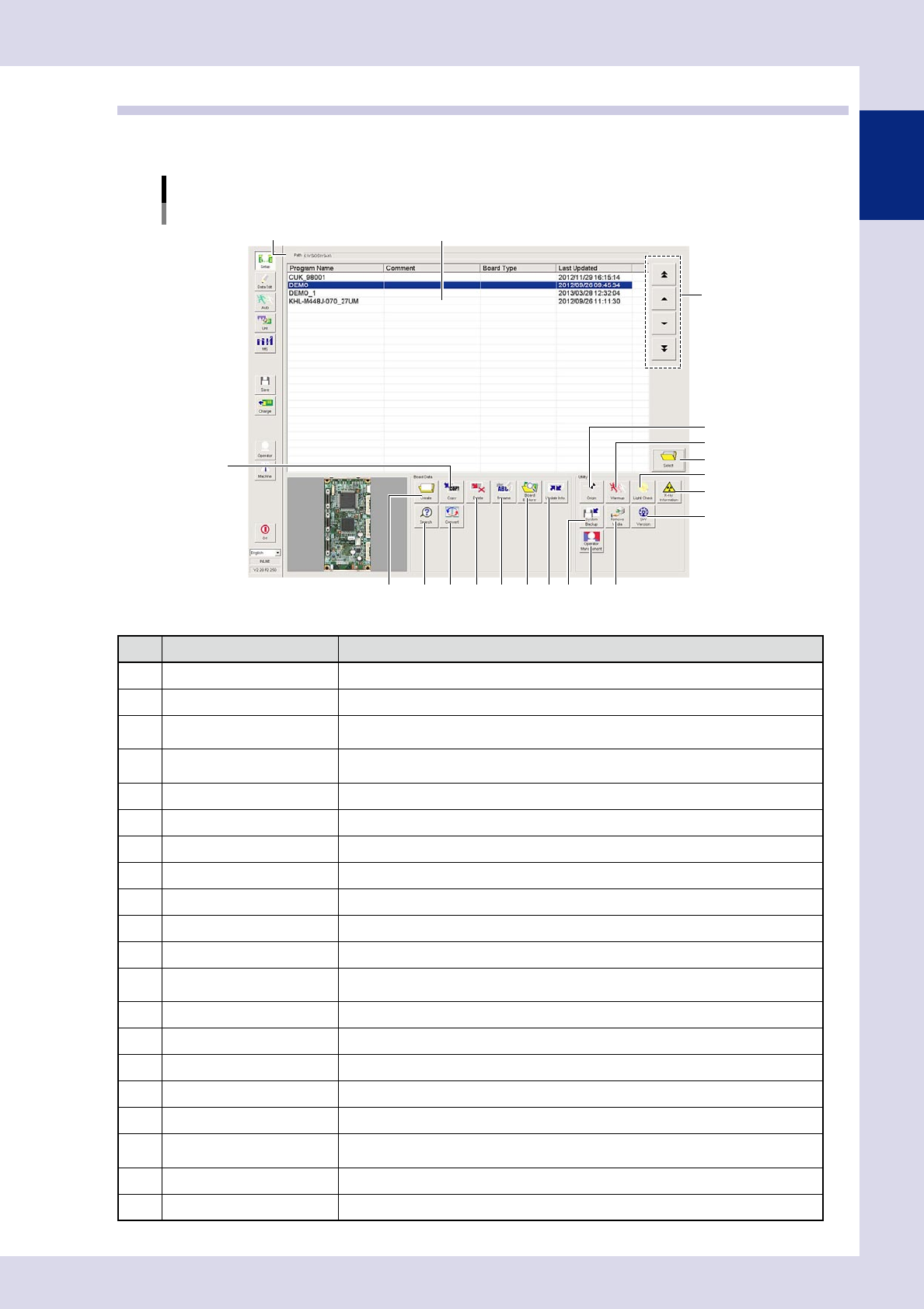

"Setup" screen
YSi-X example
5
3
1
2
4
6
7 8 9 10
13
14
17 18
19
20
15
16
1211
24103-P6-00
Item/button name Function
1 Path Shows the path to the location where inspection programs are stored.
2 Program list Shows a list of inspection programs stored in the machine.
3 Program change
Changes the selected program in the list. Programs can also be selected by directly
clicking programs in the list.
4 Select
Loads the inspection program selected in the program list. Programs can also be loaded
by directly double-clicking programs in the list.
5 Create Press this button to create a new inspection program.
6 Copy Copies the inspection program selected in the program list.
7 Delete Deletes the inspection program selected in the program list.
8 Rename Renames the selected inspection program.
9 Board Explorer Imports or exports inspection programs.
10 Update Info. Re-creates the program list.
11 Search Searches for inspection programs.
12 Convert
Selects mount data (YGX) and converts it to an inspection program. (See Chapter 2,
"2.2 Data conversion", in this manual.)
13 Origin* Moves the inspection head, conveyor, and laser unit to their respective origin positions.
14 Warmup* Opens a dialog box for warming up the servo motor axes.
15 Light Check* Diagnoses the LED lighting intensity.
16 X-ray Information (YSi-X)* Performs an X-ray source status check and self test.
17 System Backup Backs up and restores machine settings.
18 Operator Management
Press this button to register and edit operators, and set passwords and operator levels,
etc. (See Chapter 5, "1. Operator management", in this manual.)
19 Remove Media Allows the connected media to be safely removed.
20 SW Version Displays the software version, running time, machine serial number, etc.
* This cannot be used with offline software YSi-OS (option).
1-4
1
asic operation
1.4 Data Edit screen
The items and buttons displayed on the "Data Edit" screen are described below.
For instructions on how to set inspection data, refer to Chapter 2, "Creating and setting data", in this manual.
1.4.1 "Board" screen
This screen allows setting the basic items needed to perform board inspection and to create entire board
images.

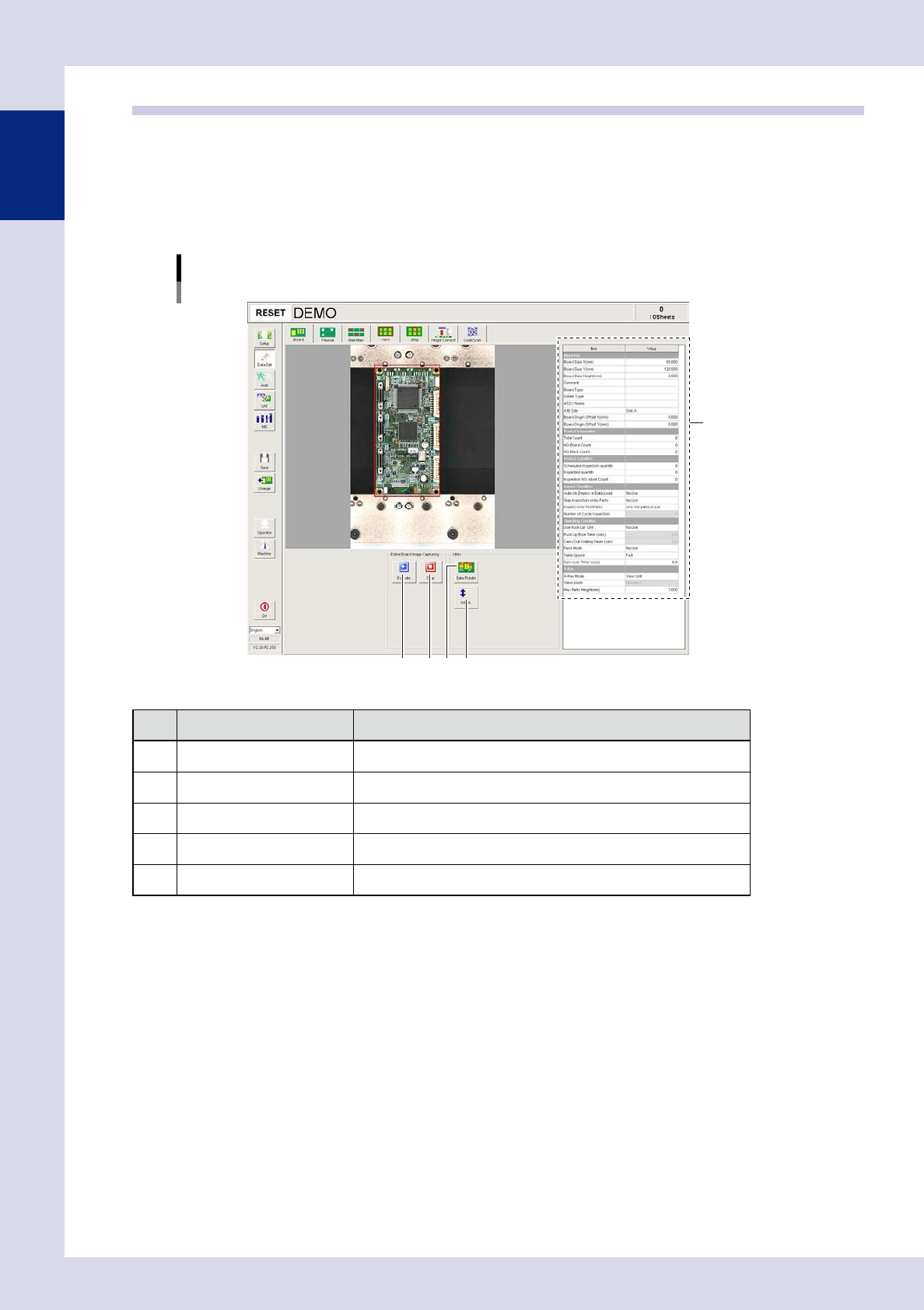

[Data Edit] - [Board] screen
4 52 3
1
24104-P6-00
Item/button name Function
1 Board parameter In this list, set parameter data such as board size to perform inspection.
2 Execute* Captures an entire board image.
3 Stop* Stops capturing an entire board image.
4 Data Rotate* Rotates inspection data by 90°, 180°, or 270°.
5 Width* Displays the screen for changing the conveyor width.
* This cannot be used with offline software YSi-OS (option).
