1-11 1  asic operation 1.4.6 " Height Correct" screen (YSi-X) Height is measured with a laser height sensor , and height is then corrected in order to perform X-r ay inspection correctly . [Data Edit] – [Heigh…

100%1 / 226
1-10
1
asic operation

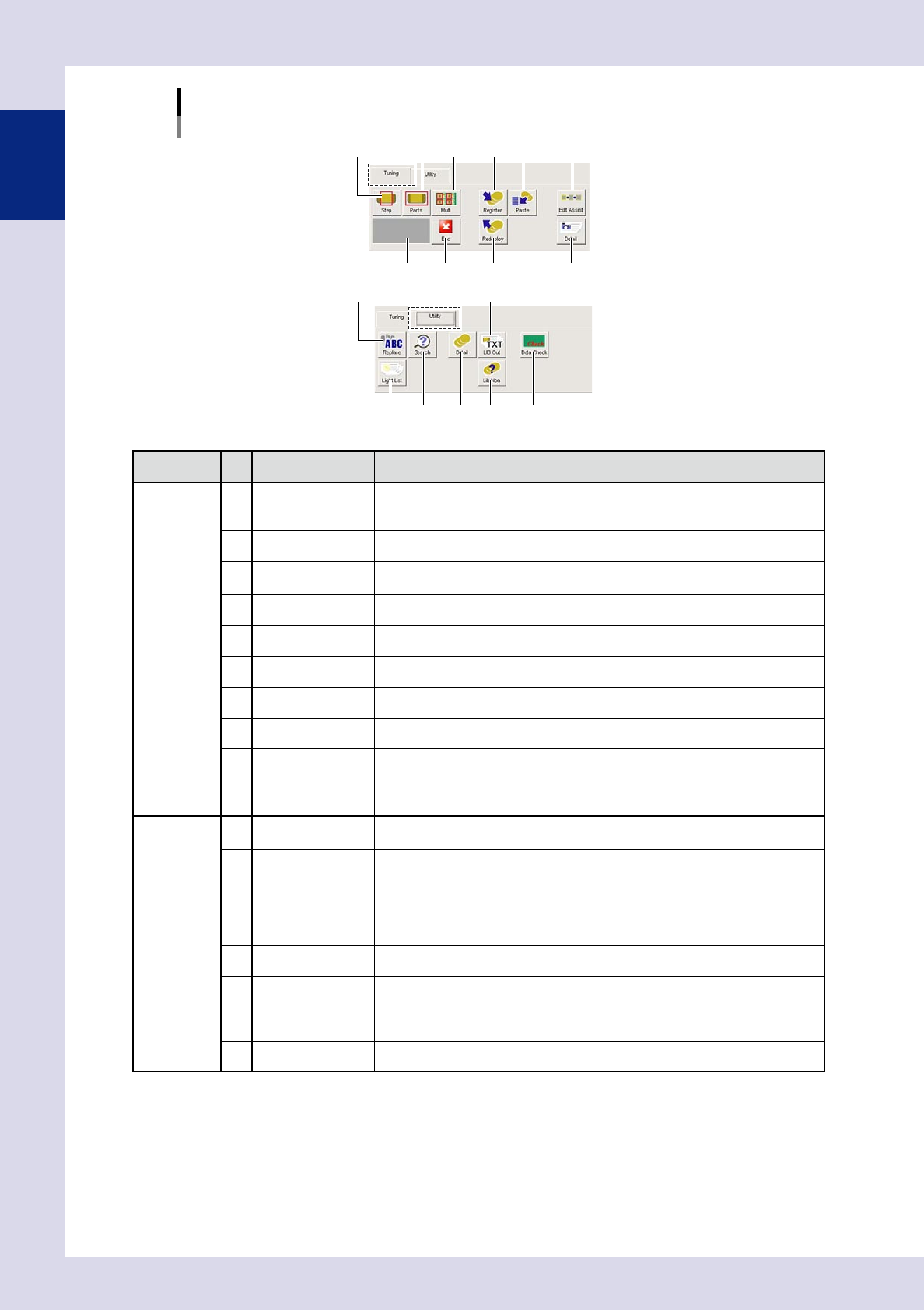

[Data Edit] – [Step] screen
[Tuning] tab、[Utility] tab
7 91 2 3 6
11
1213 14
85
15
[Tuning] tab
[Utility] tab
4 10
1716
24110-P6-00
Parameter Button name Description
Tuning
1 Step
Performs a continuous test of the selected steps, and displays the results.
Performs an inspection until the [End] button is pressed, and displays the test
results in the "Step" screen.
2 Parts Performs a test of all steps for the selected part, and displays the results.
3 Multi
Sets conditions for steps subject to inspection, and performs a test. (See Chapter
3, "2.4.1 Multi-test", in this manual.)
4 Result display Displays the test results.
5 End Ends the test.
6 Register Registers the steps for the selected part in the library.
7 Paste Pastes the selected library to parts on the step image.
8 Redeploy Deploys libraries to inspection data under the set conditions.
9 Edit Assist
Copies steps, adds pin Nos., deploys arrangement and pin information, and
deploys foreign matter checks. (See Chapter 3, "3 Edit assist", in this manual.)
10 Detail
All results can be checked when the test is complete. (See Chapter 3, "2.4.2
Measurement results", in this manual.)
Utility
11 Replace
Sets conditions, and replaces parameters for the relevant step at one time. (See
Chapter 3, "4.1 Replace", in this manual.)
12 Search
Set the type and character string for the inspection object at the "Search" screen,
and press the [Next Search] button to jump to the relevant step. (See Chapter 3,
"4.2 Search", in this manual.)
13 Light List
Displays a list of recognized images with the YAMAHA standard lighting settings.
Furthermore, new lighting settings can be registered, and lighting settings can be
set to steps.
14 Detail Displays details of the selected library.
15 Lib Out Outputs the library in text format.
16 Lib Non
Displays the "Library unset parts" screen, and displays steps to which no library
has been pasted in a list.
17 Data Check Checks for inconsistencies in inspection data.
1-11
1
asic operation
1.4.6 "Height Correct" screen (YSi-X)
Height is measured with a laser height sensor, and height is then corrected in order to perform X-ray inspection
correctly.
[Data Edit] – [Height Correct] screen
2
3
4
5
6
7
1
8
24111-P6-00
Item/button name Function
1 Board/Local
The unit for enabling the height correction function can be selected from board
or local.
2 Image size change
+ : Enlarges the height correction image.
- : Reduces the height correction image.
The image can also be enlarged and reduced by rotating the mouse wheel.
3 Change lighting
Changes the code scan image lighting. Select the lighting that results in the
clearest mark image from U, H, M, and L.
4 0.1mm
Pressing this button changes the pitch for the camera to move when the arrow
buttons on the scroll bars are pressed. (0.01mm, 0.100mm, 0.500mm, 5.000mm)
5 Trace Moves the camera to the mark list XY coordinates.
6 Teach Registers the current coordinates as the position coordinates.
7 Test
By pressing this button, the height of the position selected in the list is measured
and then displayed in the upper right screen.
8 Measure
Pressing this button and moving the mouse to the upper right screen displays
the XY coordinates and height.
TIP
Height correction performed locally becomes valid in view units, and is set in the "Height correct" field in the "View"
screen view data.
1-12
1
asic operation
1.4.7 "Code Scan" screen
The code scan function is used to read QR Codes and so on affixed to boards to identify boards IDs. Board IDs
are used when outputting SPC data, and when outputting results to the Repair Station (option).
This screen allows you to set and edit code scan conditions.
[Data Edit] – [Code Scan] screen
2
3
6
5
1
4
7
8
12109
11
24112-P6-00
Item/button name Function
1 Trace Moves the camera to the mark list XY coordinates.
2 Teach
The center of the recognized mark is registered as the fiducial position
coordinates.
3 Find Searches for and replaces items registered in the mark list.
4 Zoom
+ : Enlarges the code scan image.
- : Reduces the code scan image.
5 Change lighting
Changes the code scan image lighting. Select the lighting that results in the
clearest mark image from U, H, M, and L.
6 Set Mark Registers the selected mark in the library.
7 Library Sets the mark information registered in the library.
8 Light List
Displays a list with the mark image illuminated under each lighting, allowing the
operator to select the most suitable lighting from the list.
9 Insp Img
Displays the code scan image captured with the lighting used to perform
inspection in the code scan position.
10 0.1mm
Pressing this button changes the pitch for the camera to move when the arrow
buttons on the scroll bars are pressed. (0.01mm, 0.100mm, 0.500mm, 5.000m)
11 Result display Displays the code scan test results.
12 Test Performs the code scan test.
