1-34
1
asic operation
2.4 Inspection complete screen
When board inspection is complete, the inspection result appears in the inspection result display field as "OK"
or "NG". When the "Whole" screen is displayed, inspected parts with "OK" result are indicated with blue dots,
and parts with "NG" result are indicated with red dots. By selecting the "Display Type", steps for the selected
inspection result conditions are displayed in the parts inspection results list. By selecting a parts in the parts
inspection results list, the position of the relevant parts is indicated with a cross.

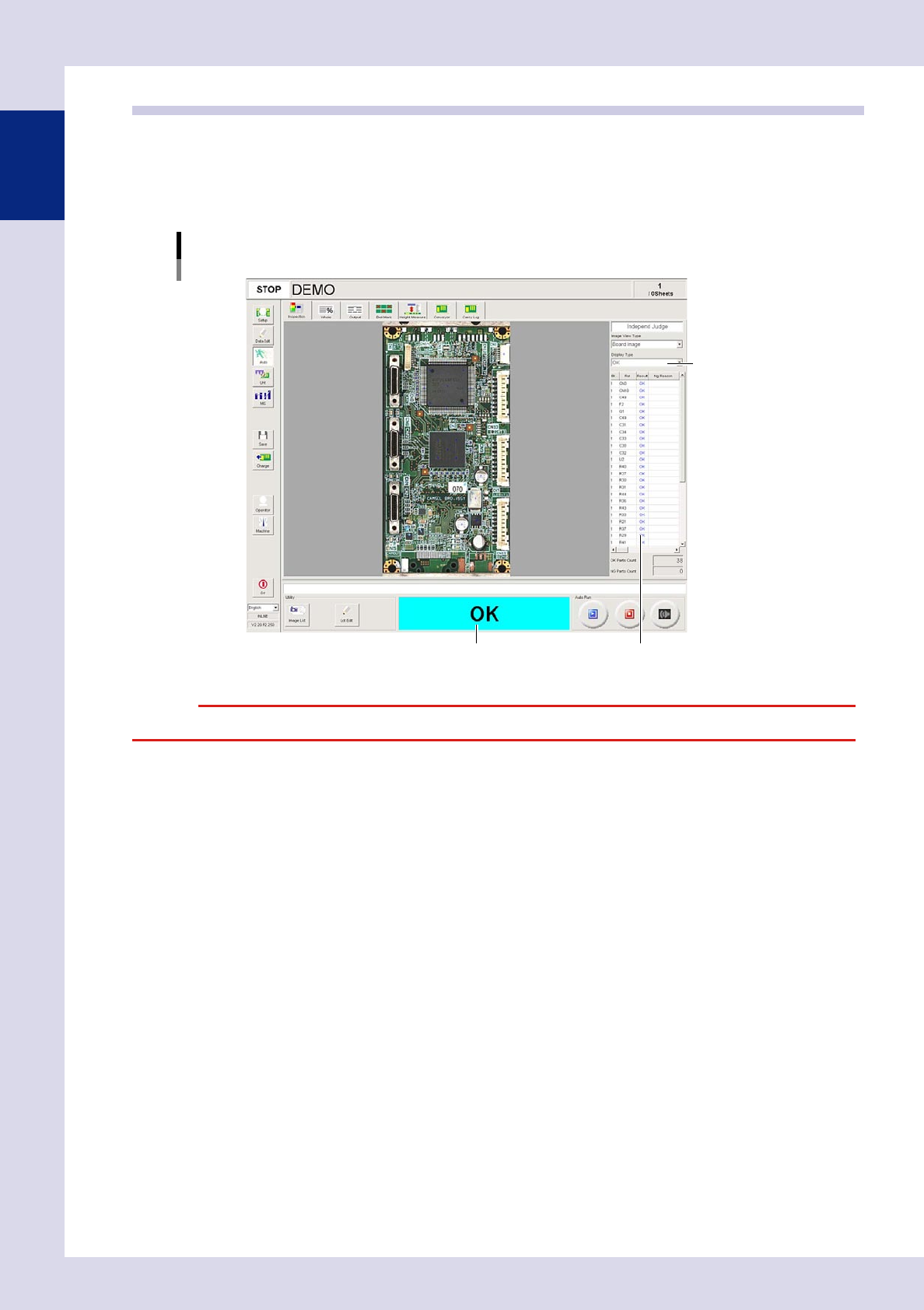

Inspection complete screen
Inspection result display field
Result display type
Parts inspection results list
24135-P6-00
c
1-35
1
asic operation
2.5 Ending the automatic inspection
After board inspections are completed, use the following procedure to exit the automatic inspection mode.
1
Ensure that the status is "waiting".
"Waiting" indicates that inspection is complete, and that the machine is waiting for the next board to be
loaded.
2
In the "Button" area, press the button for the next task.
To end inspection machine operation, press the [Off] button. The following dialog box appears when
the [Off] button is pressed. Follow the instructions on the screen.

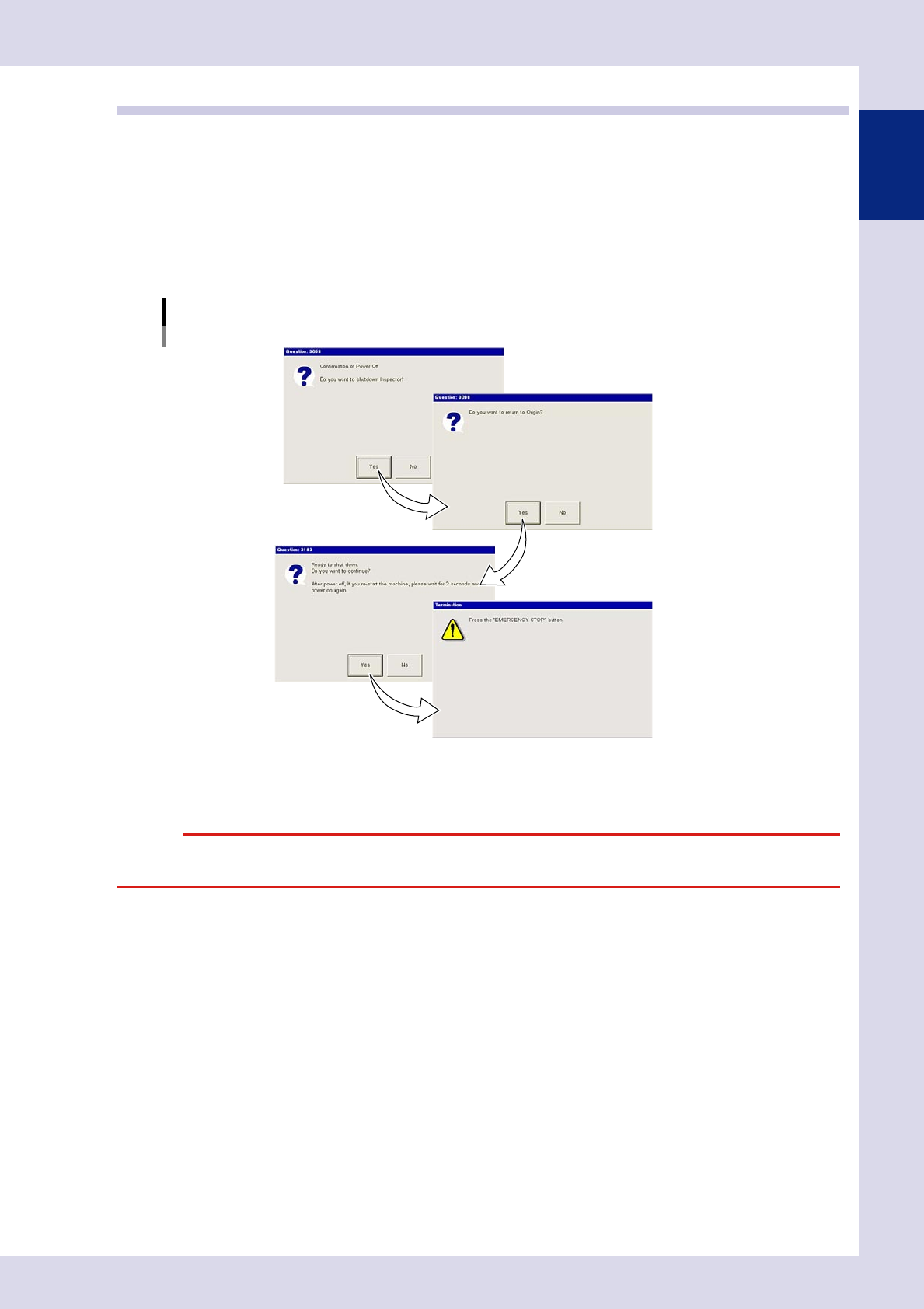

Power off dialog box
24136-P6-00
e
Pressing the emergency stop button exits the inspection machine application and Windows. When it is okay to
turn the power off, turn off the inspection machine main power.
c
Chapter 2 Creating inspection programs
Contents
1
1
1.2 Inspection method 2-2
1.2.1 Optical inspection 2-2
1.2.2 X-ray inspection 2-4
5
1.3.1 Inspection with optical camera 2-5
1.3.2 Inspection with X-ray camera 2-8
2. Creating inspection programs 2-9
9
0
2.3 Creating full board images 2-12
5
2.4.1 Basic parameters 2-16
2.4.2 Fiducial mark settings 2-18
2.4.3 Setting fiducial mark CUSTOM lighting 2-22
4
2.5.1 Basic parameters 2-25
2.5.2 Bad mark settings 2-26
9
2.6.1 Saving view images 2-29
2.6.2 Using view images 2-30
2.6.3 Creating all views and shortening inspection time 2-31
2.6.4 Manual view creation procedure 2-32
2.6.5 Multiple view operations 2-34
2.7 Step settings 2-38
2.7.1 Pasting libraries 2-38
2.7.2 Step creation procedure 2-40
2.7.3 Registering libraries 2-44
2.7.4 Deploying libraries 2-46
2.7.5 Checking libraries 2-48
2.7.6 Saving view images 2-49
2.8 Library details 2-50
