Placement head CPP_20211118_070932 - 第10页
Placement head CPP Page 10 / 13 18.11.2021
Placement head CPP
Page 9 / 13 18.11.2021

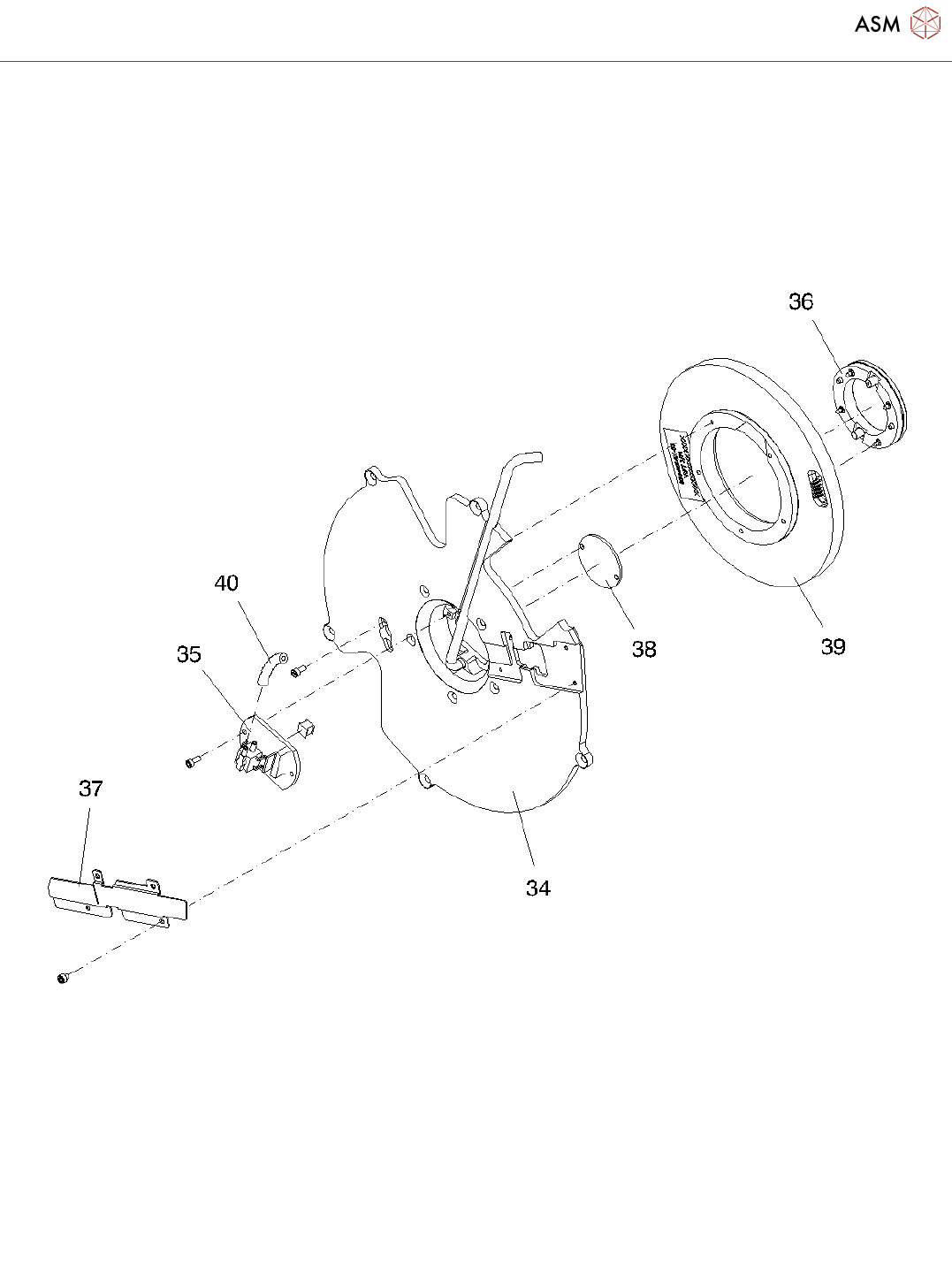

Placement head CPP
Page 10 / 13 18.11.2021
Placement head CPP
Page 11 / 13 18.11.2021
Pos. Item no. Description Part marking
2 03053528S06 PLACEMENT HEAD CPP / WITHOUT
CAMERA
Spare Part
3 03063184S04 STAR DRIVE COMP. / CPP *
4 03061531-03 STAR DRIVE WITHOUT ENCODER /
CPP
5 03039363-01 ROTARY ENCODER STAR DRIVE /
CPP
6 03015702-03 STAR CPL. /CPP
7 03068843S02 ENERGIE TRANSLATOR ROTOR
COM. / CPP
SPARE PART
8 03057044-01 COVER STRAIN RELIEF /CPP
9 03115167S01 VALVE TERMINAL-CPL.CPP SPARE PART
10 03061521-01 STAR SUPPORT CPL. /CPP
11 03054790S02 SCS COMPLETE / CPP SPARE PART
12 03039099S05 SEGMENT GUIDE / CPP SPARE PART
13 03015920S02 HOSE DP / CPP 12X WEAR PART
03080144S02 SWIVEL JOINT CPL. SPARE PART
15 03064436-01 LEAF SPRING /CPP
16 03064455-01 CIRCUIT BOARD CARRIER /CPP
17 03057048-01 FLEXIBLE PRINTED BOARD SCS /
CPP
SPARE PART
18 03057037-01 STRAIN-RELIEF PAD /CPP
19 03081381S04 RETAINING CIRCLE COMPL. / CPP SPARE PART
03086594-02 O-RING D3771 25X1-EPDM 50 WEAR PART
03061431-01 SET OF FLAT SEAL RETAINING
CIRCLE / CPP
22 03050314S04 DP-DRIVE CPL./ CPP SPARE PART
23 03053858-02 PROTECTIVE COVER-CPP
03068513-01 NIPSL 210 KOMBIDICHTRING
(SELEKTIERT)
24 03003053-01 NIPSL 210 COMBINATION SEAL
(COLUMNAR SEAL)
03064410-01 SLIDING RING /CPP
25 03061102S06 FRONT PANEL WITH Z-DRIVE CPL.
/CPP
SPARE PART
03074223-02 LINEAR MOTOR
27 03077287-01 HOLDER COM. / CPP
29 03062868-01 CABLE ASSEMBLY DISCHARGE
