Station Programming 1.1 / Installation Manual 05/2015 Edition
8
4 Installing Station Programming
The required SIPLACE software packages are integrated in Station Programming and will be
installed automatically by the Station Programming installation program.
If you want to update / upgrade to a new Station Programming version this will be performed
automatically when the new setup is executed.
► Log in as administrator using the ASM_Admin account on the station computer.
► Insert the installation DVD into the DVD drive.
► Open Windows Explorer.
Figure 4-1: Opening installation file
► Double-click the Setup.exe file under drive E: to start installing Station Programming.
Station Programming 1.1 / Installation Manual 05/2015 Edition
9
The setup wizard dialog of Station Programming is displayed.
Figure 4-2: Setup wizard
► Click the Next button.
The following dialog is displayed.
Figure 4-3: Accepting license agreement
► Select I accept the terms of the license agreement to accept the licensing conditions.
► Click the Next button.
Station Programming 1.1 / Installation Manual 05/2015 Edition
10
The following dialog is displayed.

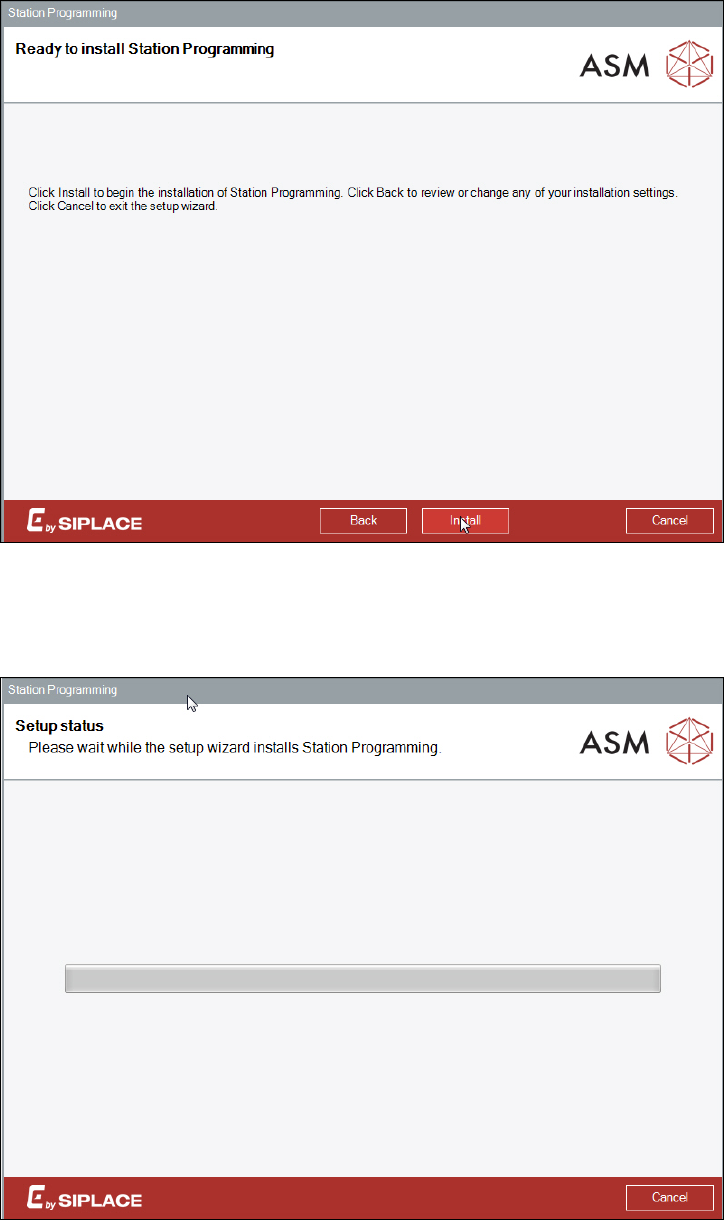

Figure 4-4: Starting installation
► Click the Install button to start the installation.
The following dialog is displayed.
Figure 4-5: Installing Station Programming
The installation of all components may take a while and one system restart will be performed
automatically.
