Continued from
Page 4-1
KW1-M7540-010
KW1-M454A-030
KW1-M754L-000
KW1-M754S-000
No. Part No. Part Name Q'ty Remarks
KW1-M7540-010 TAPE GUIDE UNIT 1
KW1-M754S-000 TAPE GUIDE ASSY 1
KW1-M454A-030 LOCK LEVER ASSY 1
KW1-M754L-000 SHUTTER PLATE ASSY 1
1
2 KW1-M4512-000 KNOCK PIN (FRONT) 1
3 K87-M5513-000 KNOCK PIN (REAR) 1
4
K87-M111G-100
PUSH PIN (L=10) 1
5 K87-M213L-000
GUIDE AXIS 1
6
7
8 KW1-M454D-030 ADJUST PLATE 1
9 KW1-M554P-000 GUIDE AXIS 1
10
11
12
13
14
15 KW1-M4546-000 SHUTTER COVER 1 *Attention
16 KW1-M4544-010 SHUTTER GUIDE PIN 2 *Attention
17 KW1-M554N-000 GUIDE AXIS 1
18
19
20
21 K87-M23BG-000 ELBO CONNECTOR 1
22 K87-M5683-000 AIR HOSE (L240) 1
23 K87-M111P-000 SCREW,FLAT HEAD+ 5
24 K87-M111R-000 SCREW,SET 4
25 K87-M111V-000 SCREW,SET 1
26 K87-M111U-000 SCREW,FLANGE NUT 3
27 KW1-M454E-010 SPRING 1
28 KW1-M45BT-000 SCREW,THIN HEAD 1
KW1-1204
4
2

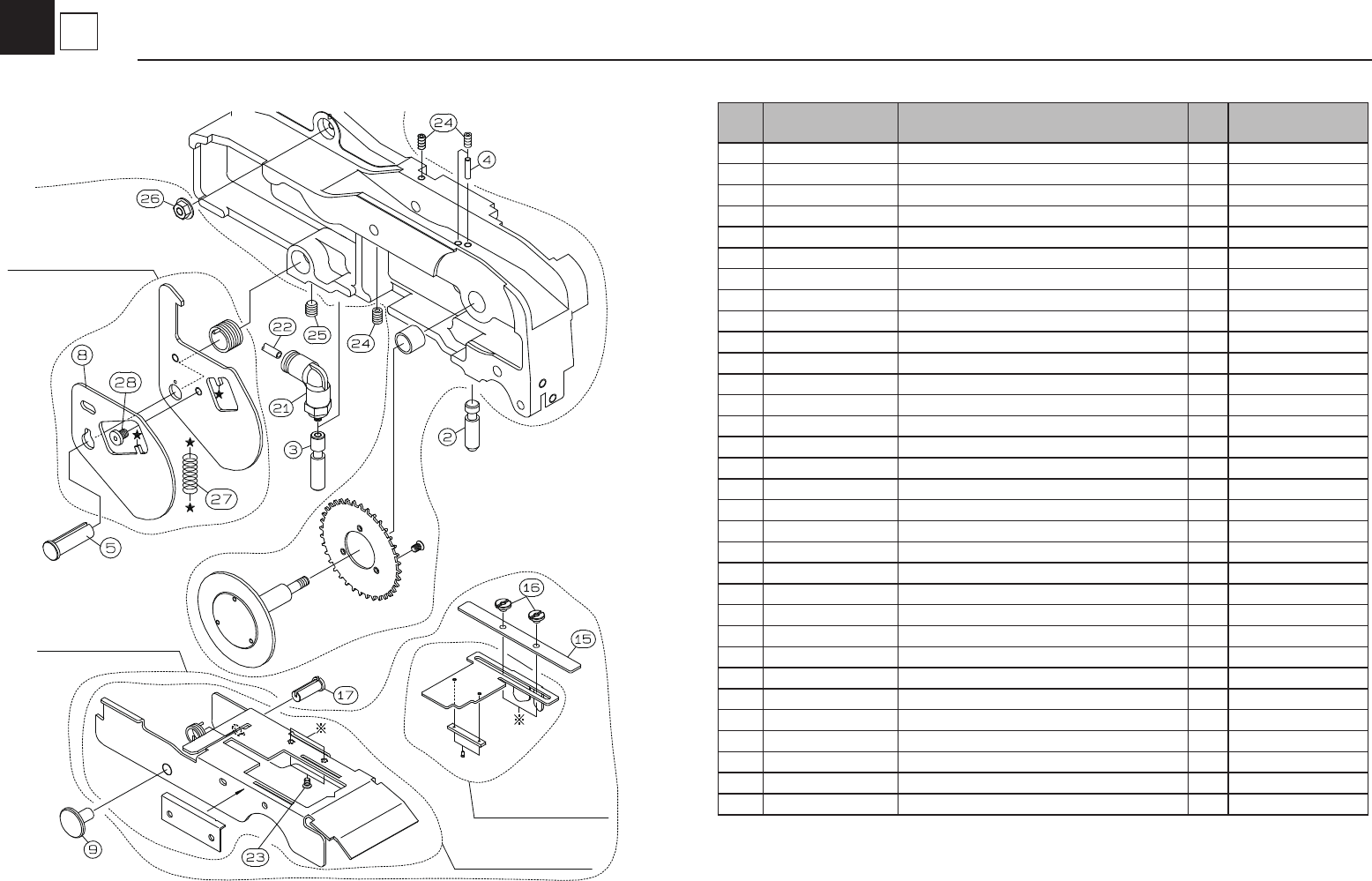

BODY & TAPE GUIDE Assy
CLI-56
CL-56 56mm
*Attention: This parts need thread locker and training.
*Attention:
接着部品のため修理依頼を推奨します。
K87-M2131-001
K87-M213A-000
K87-M2132-100
No. Part No. Part Name Q'ty Remarks
K87-M2131-001 CLAMP LEVER UNIT 1
K87-M2132-100 CLAMP LEVER ASSY 1
K87-M213A-000 CLANK ARM ASSY 1
1
2 K87-M113D-001 ARM 2
3 K87-M113E-000 HINGE PIN 2 1
4
5
6 K87-M213M-000
AXIS PIN
1
7 K87-M213L-100 CLAMP LEVER AXIS 1
8
9
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111Y-000 SCREW,SET 1
12 K87-M111V-000 SCREW,SET 1
13
K87-M11D7-000 CIRCLIP E 2
KW1-1204
4
3

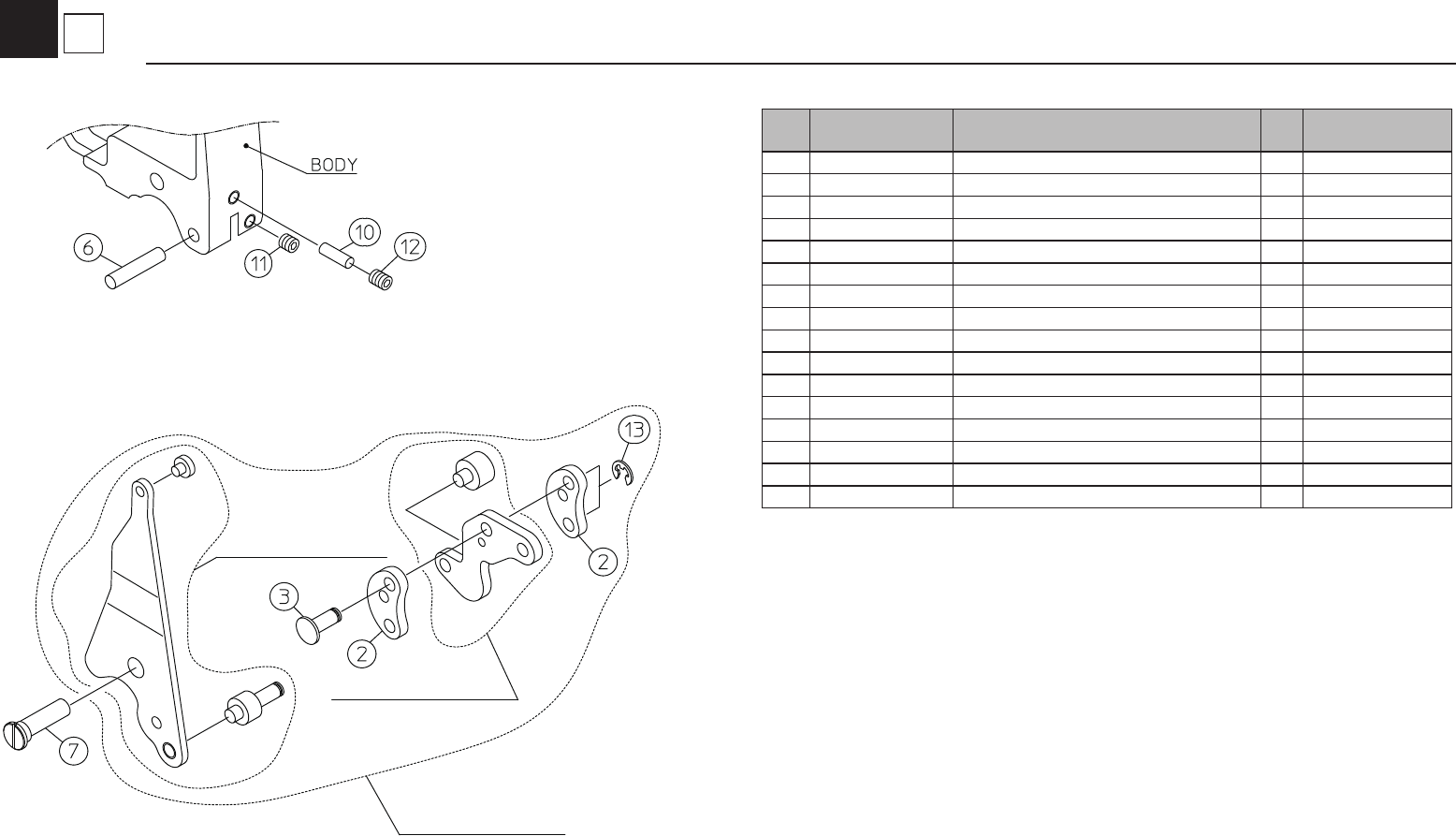

TOGGLE CLAMP Assy
CLI-56
CL-24 / 32 / 44 / 56 / 72 24mm~72mm
K87-M559A-000
KW1-M4592-000
KW1-M5593-000
KW1-M759N-001
KW1-M459G-000
No. Part No. Part Name Q'ty Remarks Change
Compati.
KW1-M4592-000 INDENTATION LEVER ASSY 1
KW1-M459G-000 SUB LEVER ASSY 1
KW1-M5593-000 REEL SHAFT ASSY 1
KW1-M759N-001 METAL ASSY 1
K87-M559A-000 DRIVE GEAR ASSY 1
1
2
KW1-M459Y-000
PLANE WASHER 1
3
KW1-M459M-000 SPRING
1 S.T.D
KW1-M459M-100
SPRING
1 Hard
(2009/9/10) SET A
4 K87-M119J-000 THRUST WASHER 3
5 K87-M559K-000 INDEX GEAR 1
6
7 KW1-M459L-000 SUB ARM 1
8 KW1-M459V-000 REEL FLANGE 1
9
10
11
12
13
KW1-M457B-000
PLANE WASHER 1
14
15
16 KW1-M759U-000 REEL PLATE 1
17
18
19
20
21 K87-M11BB-000 SCREW,FLAT HEAD+ IB 5
22 KW1-M45BF-000 SCREW,FLAT HEAD+ 2
23 K87-M111S-000 SCREW,FLAT HEAD+ 1
24 K87-M11B9-000 CIRCLIP E 1
25
KW1-1204
4
4

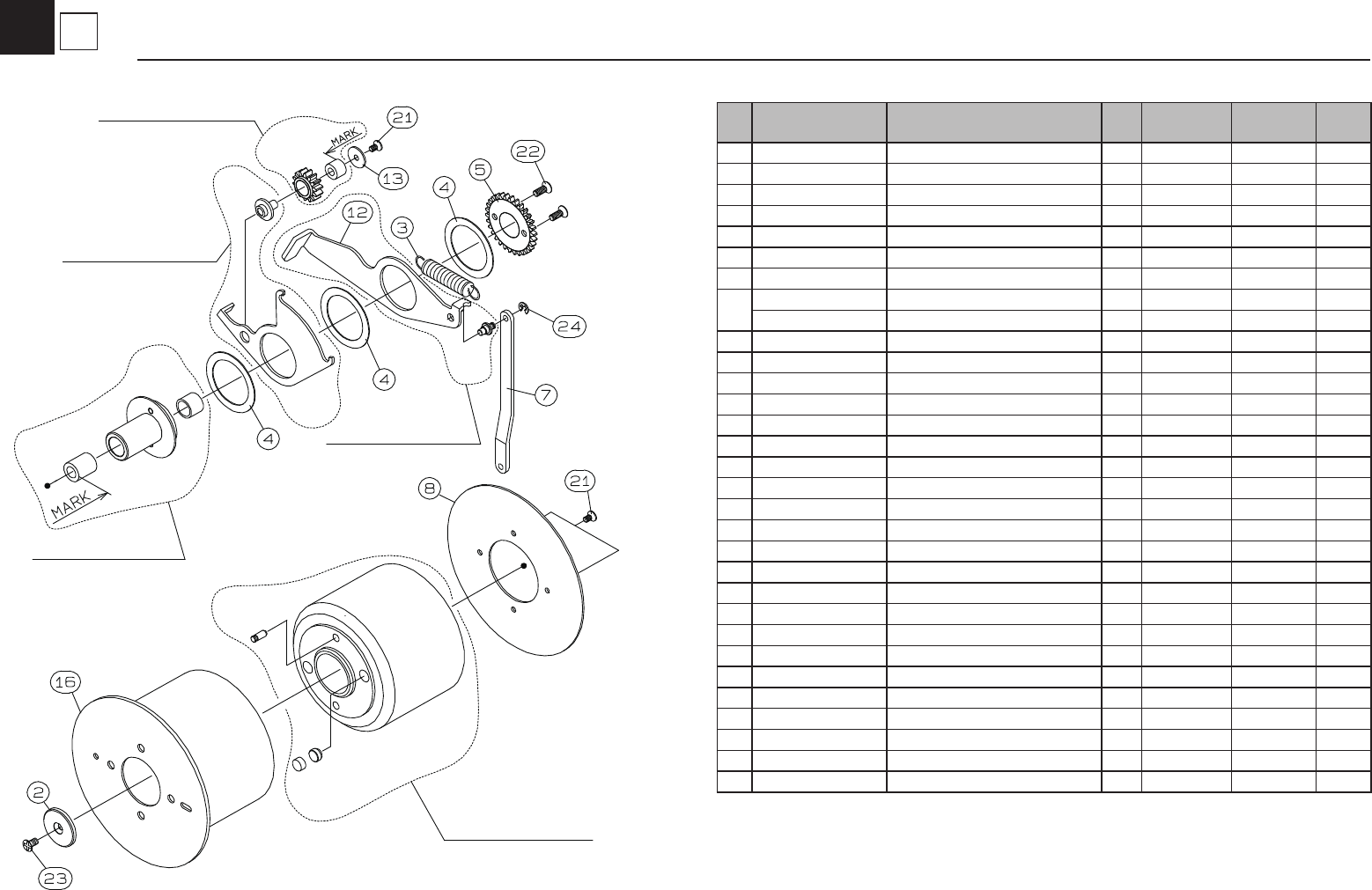

ROOL UP Assy
CLI-56
CL-56 56mm
