MODEL TCM-3600J 981 1-001 電気制御部 ELECTRICAL SECTION Fig.1 1-18 コンベア駆動回路Ｌ Conveyor Driver Circuit L 97 96 98 99 7 8 9 7 8 10 See Fig.7-1 Key No.2 42 41 6 See Fig.1-1 Key No.11 1 5 4 3 2 62 61 66 65 61 63 64 26 27 28 29 26-…
MODEL TCM-3600J
9811-001
11-17
Key No. PART No. PART NAME Q'ty REMARKS
1 630 060 9318 BOX 1 703FB-01V-021
2 630 004 6496 CONNECTOR 1 703FB-01D-130
3 630 004 6274 CONNECTOR 1 703FB-01D-129
4 411 034 7208 SCR FLT 3X8 6 M3X8 FLT
5 630 054 8778 CONNECTOR 1 703FB-01D-103
10 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
11 630 060 4771 COVER 1 703FB-01V-023
12 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
21 630 060 9301 BOX 1 703FB-01V-020
22 630 004 6496 CONNECTOR 1 703FB-01D-130
23 630 004 6274 CONNECTOR 1 703FB-01D-129
24 411 034 7208 SCR FLT 3X8 6 M3X8 FLT
25 630 054 8778 CONNECTOR 1 703FB-01D-103
30 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
31 630 060 4764 COVER 1 703FB-01V-022
32 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
NOTE
MODEL TCM-3600J
9811-001
電気制御部 ELECTRICAL SECTION

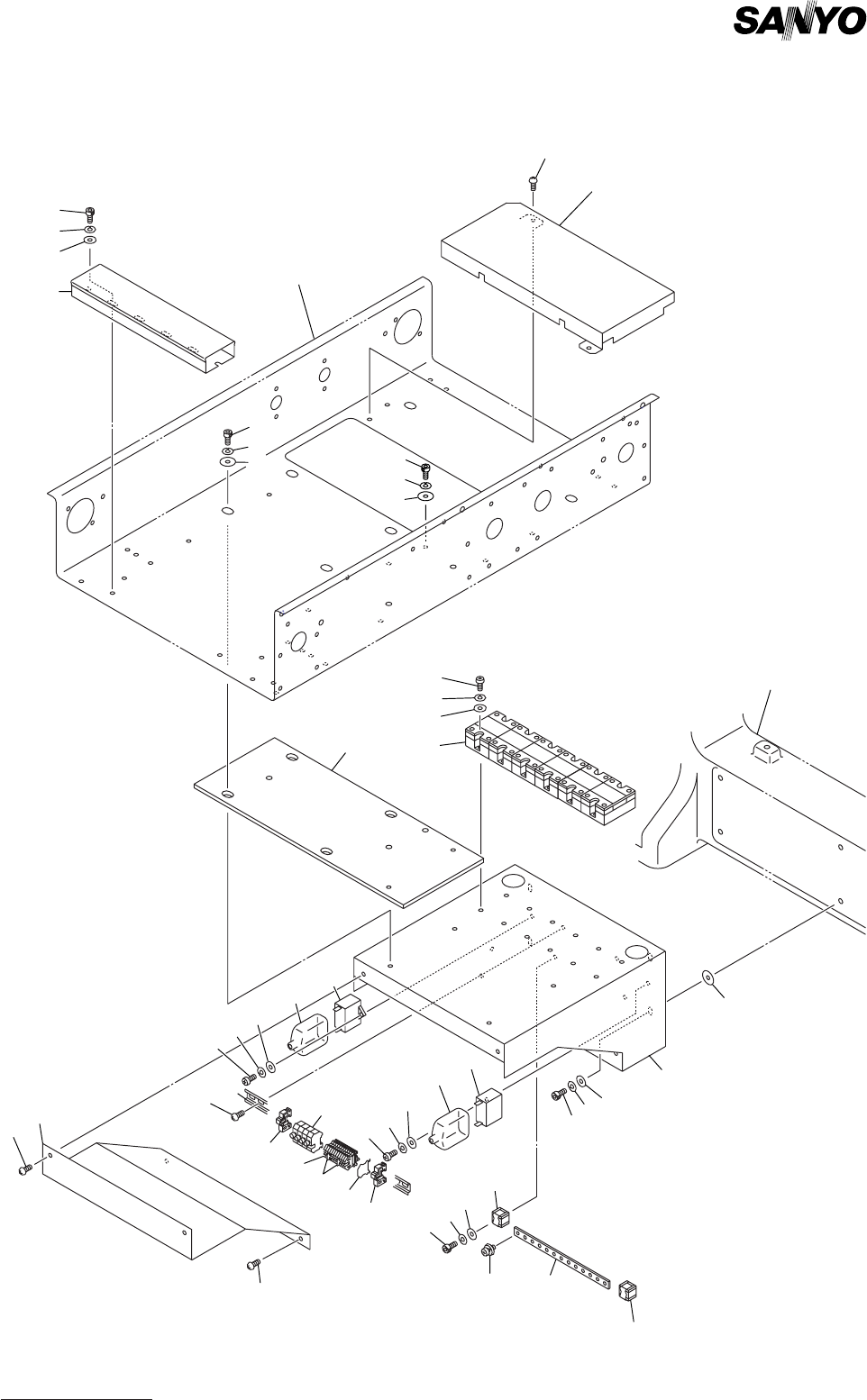

Fig.11-18コンベア駆動回路Ｌ Conveyor Driver Circuit L
97
96
98
99
7
8
9
7
8
10
See Fig.7-1
Key No.2
42
41
6
See Fig.1-1
Key No.11
1
5
4
3
2
62
61
66 65
61
63
64
26
27
28
29
26-1
25
27
28
29
25-1
52
52-1
.
51
50
54
53
55
57
91
92
92
57
4796R
.
56
24
23
22
21
MODEL TCM-3600J
9811-001
11-18
Key No. PART No. PART NAME Q'ty REMARKS
1 630 001 0237 WASHER 4 703G--01H-025
2 630 074 6730 BRACKET(TB) 1 703G--01B-045
3 630 001 0220 WASHER 4 BW5
4 411 141 6705 WASHER SPR 5 4 SW5
5 630 000 7770 BOLT,HEX-SCT 4 M5X20
6 630 074 6761 PLATE 1 703G--01B-053
7 630 001 0237 WASHER 6 BW6
8 411 141 3001 WASHER SPR 6 6 SW6
9 630 000 7893 BOLT,HEX-SCT 4 M6X20
10 630 000 7886 BOLT,HEX-SCT 2 M6X16
21 630 049 1210 RELAY 6 703FD-01D-001
22 411 119 2104 WASHER V 4X9X0.8 12 FW4 F
23 411 008 1706 WASHER SPR 4 12 SW4 F
24 411 042 3001 SCR PAN 4X10 12 M4X10 PAN
27 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
28 411 008 1706 WASHER SPR 4 2 SW4 F
29 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
41 630 064 8201 COVER(L) 1 703G--01B-024
42 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
51 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
52 630 049 1173 FUSE HOLDER 4 703FD-01D-012
52 -1 423 022 8203 FUSE 250V 3.15A 4 703FD-01D-013
53 630 049 3801 TERMINAL 10 703FD-01D-008
54 630 049 3702 ACCESSORY,WIRING 2 703FD-01D-006
55 630 049 3733 ACCESSORY,WIRING 1 703FD-01D-005
57 630 049 3672 BRACKET,WIRING 2 703FD-01D-007
61 630 051 5763 WIRE PARTS 2 703FD-01D-020
62 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
63 411 008 1706 WASHER SPR 4 2 SW4 F
64 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
66 411 036 8609 SCR PAN+SW+W 5X12 9
91 630 074 6747 COVER(TB) 1 703G--01B-046
92 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
97 411 141 4008 WASHER V 4X9X0.8 2 FW4
98 411 141 2905 WASHER SPR 4 2 SW4
99 630 000 7619 BOLT,HEX-SCT 2 M4X8
NOTE
