Vision Teach Station User Manual 8 Starting the vision teach station
05/2014 Edition 8.5 Installing the interface cards
163
8.5 Installing the interface cards
If an interface card has to be replaced, you will then have to install the drivers as follows:
8.5.1 CAN card
When the computer is restarted, Windows indicates that a new hardware component was detec-
ted. Follow the dialog.
If the driver is not automatically detected, follow the instructions in section 8.3.5, page 160.
8.5.2 Camera interface card
When you install the card, remember to plug in the floppy power supply connector again. When
the computer is restarted, Windows indicates that a new hardware component was detected.
Follow the dialog.
If the driver is not automatically detected, insert the "Software Vision Teach Station" installation
CD and enter the path for the boifcxdrv.inf file manually:
\CameraDriver. 8
Reboot the computer after installing the driver.
9 Using the vision teach station on the SIPLACE LAN Vision Teach Station User Manual
9.1 Connecting the computer to the SIPLACE LAN 05/2014 Edition
164
9 Using the vision teach station on the SIPLACE
LAN
From vision teach station version 3.51 onwards, the software is able to access the databases on
other SIPLACE Pro computers. For this to be possible, the computers concerned must be running
SIPLACE Pro 5.0 SP1 or later.
9.1 Connecting the computer to the SIPLACE LAN
Connect the LAN connection on the network card (see Fig. 4.3 - 2, page 117) using a switch on
the SIPLACE LAN. If the computer does not have a separate network card, please read section
9.4, page 166.
9.2 Accessing other SIPLACE Pro computers from the VTS computer
From the "SIPLACE Pro SIPLACE Pro Connection …" menu start the following dialog:

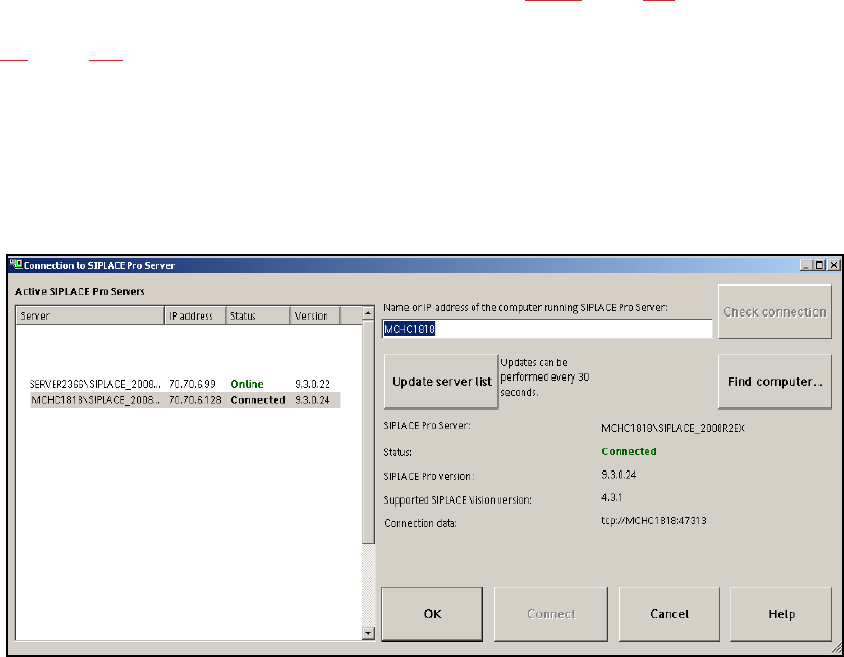

Fig. 9.2 - 1 Dialog: SIPLACE Pro Connection data
Vision Teach Station User Manual 9 Using the vision teach station on the SIPLACE LAN
05/2014 Edition 9.3 Running multiple VTSs on a SIPLACE LAN
165
The current connection data is displayed:
Tab. 9.2 - 1 Current connection data
9
To set a new SIPLACE Pro server, either enter the IP address or the computer name in the input
box or select a server from the server list.
Via the "Update server list" button a broadcast is sent in the local network. All servers that are
online respond to it and the server list gets updated.
If you click on the "Check connection" button a check is performed, whether it is possible to
connect to the specified computer.
If you click on the "Connect" button, an attempt is made to establish a connection. Once you have
successfully established a connection, the data is displayed.
If an error occurs while the connection is being established, it is signaled with a dialog. Click the
"Find Computer..." button to display a Windows standard dialog in which you can look for com-
puters on the network.
Click on the "OK" button to accept the currently selected connection. If you do not want to change
the SIPLACE Pro server, click the "Cancel" button.
9.3 Running multiple VTSs on a SIPLACE LAN
When it is supplied, a VTS with software version 3.51/ SIPLACE Pro 5.0 SP1 has the SIPLACE
LAN network configuration shown in line 1 of table 9.3 - 2.
Tab. 9.3 - 2 Network parameters for further vision teach stations on a SIPLACE LAN
SIPLACE Pro server: Name of the current SIPLACE Pro server
SIPLACE Pro version: Version of the current SIPLACE Pro server
SIPLACE Vision version:
(Highest) SIPLACE Vision version that the SIPLACE Pro server supports
with its package form data.
Connection data: Connection data for the current SIPLACE Pro server
IP address
Workgroup
Name
Host name
Default
Gateway
Subnet
Mask
SN no. or
comment
172.22.172.187 SIPLACE PLK1395A empty 255.255.0.0 VTS1
172.22.172.186 SIPLACE PLK1396A empty 255.255.0.0 VTS2
172.22.172.185 SIPLACE PLK1397A empty 255.255.0.0 VTS3
172.22.172.184 SIPLACE PLK1398A empty 255.255.0.0 VTS4
172.22.172.183 SIPLACE PLK1399A empty 255.255.0.0 VTS5
