GL-541E PARTS LIST

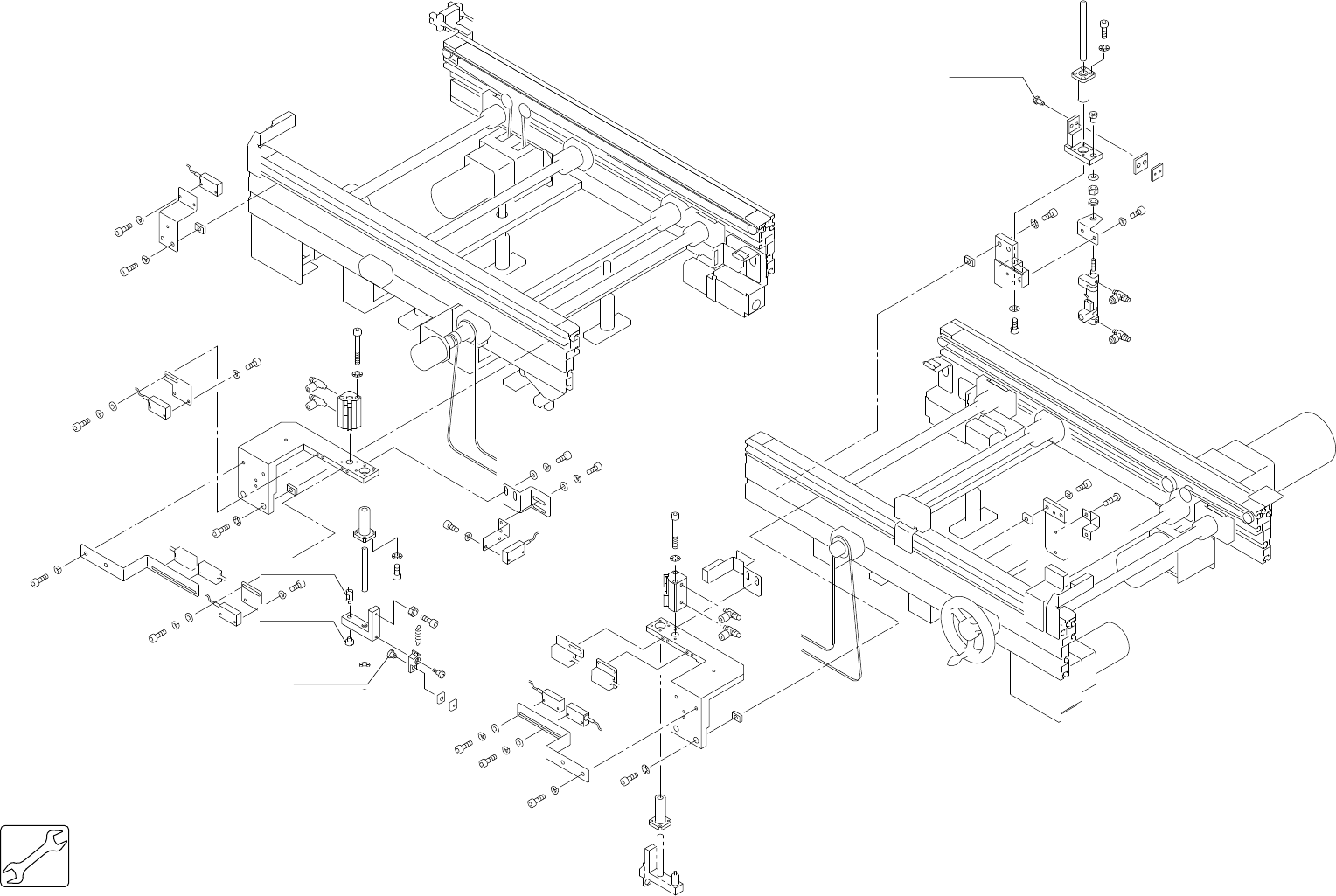

27.イン、アウトコンベア(正逆流れ)(オプション)(BTQC)
27.In,Out conveyor(Board flow changeover manual)(Option)(BTQC)
27 - 1
27.イン、アウトコンベア(正逆流れ)(オプション)(BTQC)
27.In,Out conveyor(Board flow changeover manual)(Option)(BTQC)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x7
39
39
57
39
54
55
44
48
43
39
1
33
2
41
43
44
5
35
36
36
37
44
46
6
34
11
34
12
13
14
15
16
17
18
19
28
30
30
22
34
23
24
41
52
53
52
40
56
57
57
52
40
56
50
51
52
43
40
40
43
52
52
49
59
47
56
44
40
41
3
42
34
33
4
35
36
36
46
44
7
8
9
10
20
21
30
30
29
31
32
25
26
37
27
38
36
36
58
57
39
53
41
45
55
60
50
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
GL-541E PARTS LIST
27.イン、アウトコンベア(正逆流れ)(オプション)(BTQC)
27.In,Out conveyor(Board flow changeover manual)(Option)(BTQC)
27 - 2
27.イン、アウトコンベア(正逆流れ)(オプション)(BTQC)
27.In,Out conveyor(Board flow changeover manual)(Option)(BTQC)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x7
B
A
LOCTITE222
LOCTITE242
LOCTITE242
LOCTITE222
27.イン,アウトコンベア(正逆流れ)(オプション)(BTQC)
27.In,Out conveyor(Board flow changeover manual)(Option)(BTQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 BTQC0300 1 BKT, SW BKT SW FE
2 BTQC2010 1 BKT BKT FE
3 BTQC2020 1 BKT BKT FE
4 BTQC2030 1 BKT BKT FE
5 BTQC2040 1 BKT BKT FE
6 NQC0201 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
7 NQC0290 2 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ FE
8 NQC0370 1 NUT ﾅｯﾄ FE
9 NQC0380 1 COLLAR ｶﾗｰ FE
10 NQC0390 1 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ OT
11 NQC0471 1 BKT BKT FE
12 NQC0500 1 PIN ﾋﾟﾝ FE
13 NQC0510 1 HOLDER ﾎﾙﾀﾞ FE
14 NQC0520 1 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ OT
15 NQC0530 1 NUT ﾅｯﾄ FE
16 NQC0540 1 JOINT ｼﾞｮｲﾝﾄ FE
17 NQC0640 1 STOPPER, RUBBER ｽﾄｯﾊﾟ ﾗﾊﾞｰ OT
18 NQC0650 1 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ FE
19 NQC0660 1 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ FE
20 NQC3100 1 STOPPER ｽﾄｯﾊﾟ OT
21 NQC3140 1 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ FE
22 NQC5020 1 BKT BKT FE
23 NQC5040 1 BKT BKT FE
24 NQC5050 1 STOPPER ｽﾄｯﾊﾟ FE
25 NQC5070 1 STOPPER ｽﾄｯﾊﾟ FE
26 NQC5080 1 STOPPER ｽﾄｯﾊﾟ FE
27 NQC5090 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
28 IQC0950 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
29 IQC6062 2 NUT ﾅｯﾄ FE
30 IQC6072 6 NUT ﾅｯﾄ FE
31 JQC2640 1 PLATE ﾌﾟﾚｰﾄ FE
32 MQC1490 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え FE
33 S3122Z 2
SW, PHOTOELECTRIC
SW 光電 E3S-LS3RC4 OT
34 S3122A 4
SW, PHOTOELECTRIC
SW 光電 E3S-LS3C1D OT
35 S21045 2
CYLINDER, AIR
ｼﾘﾝﾀﾞ ｴｱｰ CDQ2B12-20D-A73HL OT
36 K5325A 6
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ M4R-M5-O OT
37 H4277A 2
BEARING, SLIDE
ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ SMK8WUU FE
GL-541E PARTS LIST
27 - 3
27.イン,アウトコンベア(正逆流れ)(オプション)(BTQC)
27.In,Out conveyor(Board flow changeover manual)(Option)(BTQC)
