4.X軸スライド(BTPA) 4.X axis slide(BTPA) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Materials 77 H3084Y 1 BUSHING, RUBBER ﾌﾞｯｼｭ ｺﾞﾑ NG-79-P OT 78 N4023A 4 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴…

100%1 / 104
4.X軸スライド(BTPA)
4.X axis slide(BTPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating
Materials
39 N4012A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X8L FE
40 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
41 K5206A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X4L FE
42 H5296A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X6L FE
43 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
44 H5302A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X20L FE
45 H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X25L FE
46 H5305A BOLT, HEX ﾎﾞﾙﾄ 六角 M5X30L FE
47 H5320A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X10L FE
48 H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L FE
49 H5330A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X40L FE
50 H5344A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X35L FE
51 H5346A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X45L FE
52 H5194A BOLT, HEX ﾎﾞﾙﾄ 六角 M8X20L FE
53 H5248A BOLT, HEX ﾎﾞﾙﾄ 六角 M16X50L FE
54 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
55 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
56 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
57 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
58 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
59 W1029A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 16M/M FE
60 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L FE
61 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
62 W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H FE
63 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
64 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
65 W1046A WASHER, FLAT ﾜｯｼｬ 平 4W-8 FE
66 N1082A NUT, HEX ﾅｯﾄ 六角 M5P=0.8 FE
67 H3064A 1 BUSHING ﾌﾞｯｼｭ KG-012 OT
69 H2088A 2 PIN, TAPER ﾋﾟﾝ ﾃｰﾊﾟ 1P M8X50 FE
70 SAM6211 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ OT
71 BTPA0160 1 FLANGE ﾌﾗﾝｼﾞ FE
72 BTPA2020 1 BKT BKT FE
73 BTPA2031 1 BKT BKT FE
74 BTPA2040 1 BKT BKT FE
75 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L FE
76 H3084L 1 BUSHING, RUBBER ﾌﾞｯｼｭ ｺﾞﾑ NG-79-L OT
GL-541E PARTS LIST
4 - 4
4.X軸スライド(BTPA)
4.X axis slide(BTPA)
4.X軸スライド(BTPA)
4.X axis slide(BTPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating
Materials
77 H3084Y 1 BUSHING, RUBBER ﾌﾞｯｼｭ ｺﾞﾑ NG-79-P OT
78 N4023A 4 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X10L ･ FE
GL-541E PARTS LIST
4 - 5
4.X軸スライド(BTPA)
4.X axis slide(BTPA)
GL-541E PARTS LIST

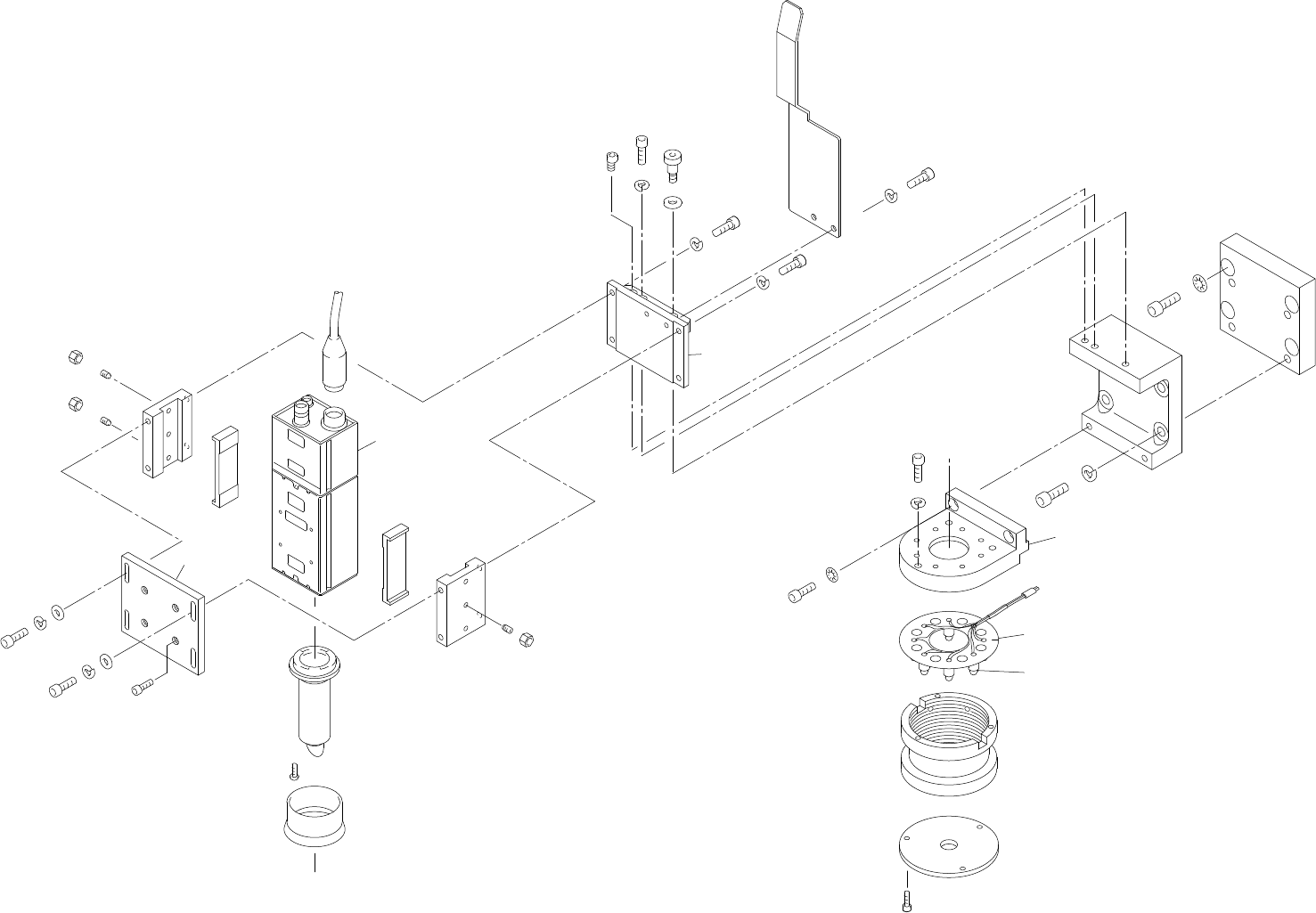

5.オプチカルコレクション(BTRG)
5.Optical correction(BTRG)
5 - 1
5.オプチカルコレクション(BTRG)
5.Optical correction(BTRG)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x2.9
14
35
23
35
23
15
39
29
36
16
10
19
6
7
7
8
27
32
27
32
9
38
35
25
38
35
25
22
11
8
27
32
30
34
18
17
31
37
20
12
26
35
33
28
1
2
3
4
5
21
23
35
A
A
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
