GL-541E PARTS LIST

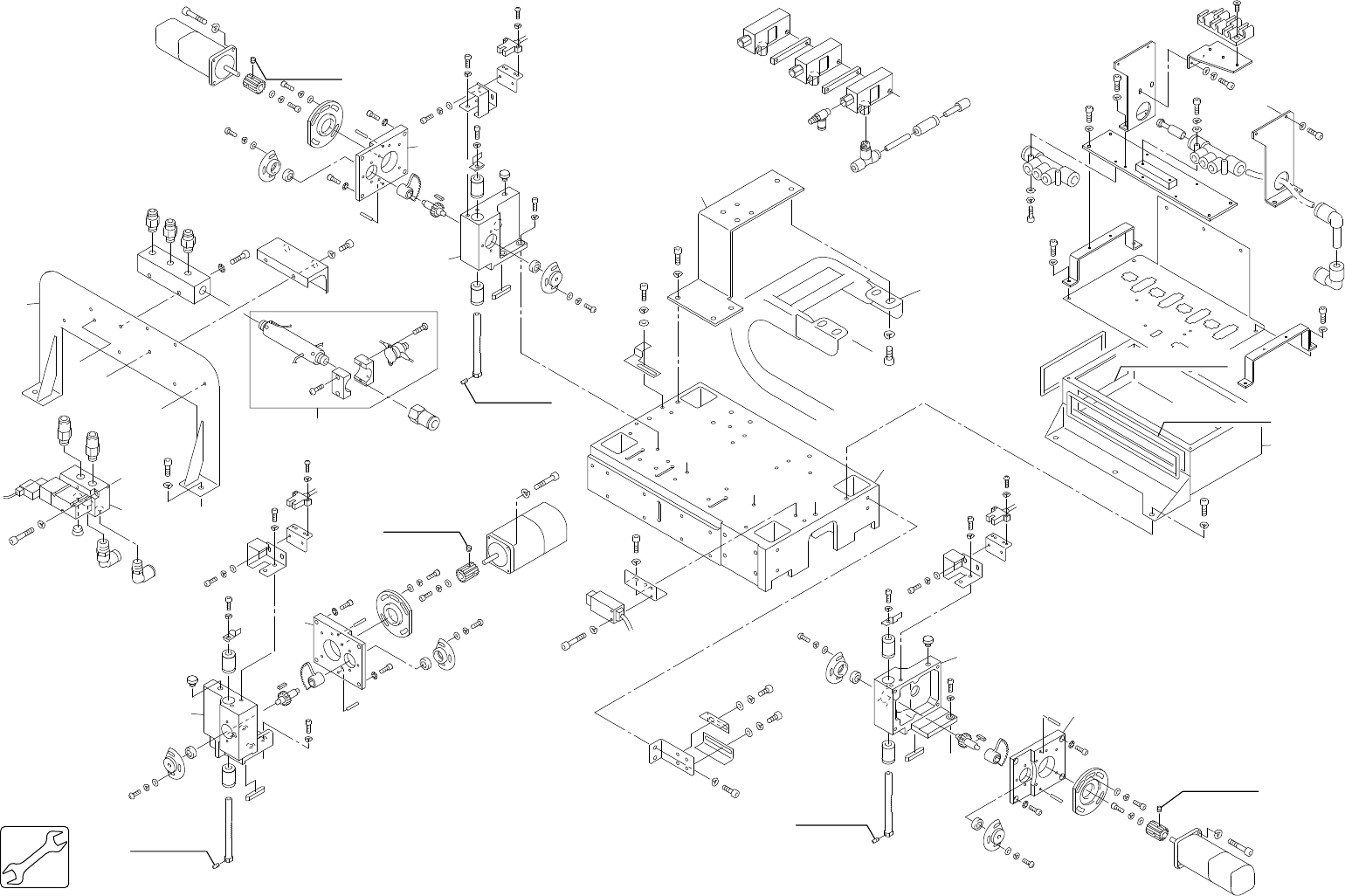

6.ヘッド(スライドベース)(BTRG)
6.Head(Slide base)(BTRG)
6 - 2
6.ヘッド(スライドベース)(BTRG)
6.Head(Slide base)(BTRG)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
C
E
A
A
A
D
Z
Z
D
A
E
C
B
A
LOCTITE222
LOCTITE222
LOCTITE222
LOCTITE222
LOCTITE222
LOCTITE222
konishi G clear
konishi G clear
6.ヘッド(スライドベース)(BTRG)
6.Head(Slide base)(BTRG)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 BTRG0030 1 BOX, GEAR BOX ｷﾞﾔ AL
2 BTRG0040 1 BOX, GEAR BOX ｷﾞﾔ AL
3 BTRG0050 1 BOX, GEAR BOX ｷﾞﾔ AL
4 BTRG0011 1 SLIDE, X-AXIS ｽﾗｲﾄﾞ X軸 AL
5 BTRG0683 1 BOX BOX FE
6 BTRG0142 3 GEAR ｷﾞﾔ FE
7 BTRG0150 1 RING, ECCENTRIC ﾘﾝｸﾞ偏心 FE
8 BTRG0160 2 RING, ECCENTRIC ﾘﾝｸﾞ偏心 FE
9 BTRG0171 3 GEAR ｷﾞﾔ FE
10 BTRG0180 1 RETAINER ﾘﾃｰﾅ AL
11 BTRG0190 1 RETAINER ﾘﾃｰﾅ AL
12 BTRG0200 1 RETAINER ﾘﾃｰﾅ AL
13 BTRG0210 3 SHAFT ｼｬﾌﾄ FE
14 BTRG0220 1 DOG ﾄﾞｯｸﾞ FE
15 BTRG0730 2 BKT, SENSOR BKT ｾﾝｻ FE
16 BTRG0740 1 BKT, SENSOR BKT ｾﾝｻ FE
17 BTRG0261 1 DOG ﾄﾞｯｸﾞ FE
18 BTRG0271 1 DOG ﾄﾞｯｸﾞ FE
19 JRG0490 6 GUIDE ｶﾞｲﾄﾞ OT
20 JRG0391 3 KEY ｷｰ FE
21 JRG0400 3 KEY ｷｰ FE
22 JRG0531 3 GEAR ｷﾞﾔ FE
23 JRG0540 3 CAP ｷｬｯﾌﾟ AL
24 NRG0200 2 COLLAR ｶﾗｰ FE
25 NRG0210 2 RING, ECCENTRIC ﾘﾝｸﾞ偏心 FE
26 H4115A 6 BEARING ﾍﾞｱﾘﾝｸﾞ R-1450ZZ FE
27 NRG0580 1 RING, ECCENTRIC ﾘﾝｸﾞ偏心 FE
28 NRG0590 1 RING, ECCENTRIC ﾘﾝｸﾞ偏心 FE
29 NRG0600 3 WASHER ﾜｯｼｬ FE
30 R5013A 6 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ ゜3X17.8L OT
31 SAM1531 2 MOTOR ﾓｰﾀ OT
32 S4040X 3 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A OT
33 BTRG0451 1 BKT BKT FE
34 S21588 1 JOINT ｼﾞｮｲﾝﾄ PKG10-6 OT
35 S2159A 1 JOINT ｼﾞｮｲﾝﾄ PKG10-8 OT
36 H3128A 1 PLUG ﾌﾟﾗｸﾞ PP-10 OT
38 K4146W 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 25.5-055-16-20A OT
GL-541E PARTS LIST
6 - 3
6.ヘッド(スライドベース)(BTRG)
6.Head(Slide base)(BTRG)
6.ヘッド(スライドベース)(BTRG)
6.Head(Slide base)(BTRG)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
39 BTRG0461 1 DOG ﾄﾞｯｸﾞ FE
40 BTRG0470 1 DOG ﾄﾞｯｸﾞ FE
41 BTRG0480 1 BKT BKT FE
42 NRG0190 1 DOG ﾄﾞｯｸﾞ FE
43 BTRG0492 1 STAND, VALVE ｽﾀﾝﾄﾞ ﾊﾞﾙﾌﾞ FE
45 H2009Z 1 HEATER ﾋｰﾀ SAH-1PH 100V 350W OT
46 S2157Z 1 JOINT ｼﾞｮｲﾝﾄ PCF10-02 OT
48 H1121N 3 VALVE, SOL ﾊﾞﾙﾌﾞ SOL AXT309-5G-02-X11 OT
49 K51698 SCREW, C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M3X8L FE
50 H3153D 3 PLUG, HEX SOCKET ﾌﾟﾗｸﾞ六角穴 PT1/8(1ｼｭ) OT
51 A4046A 3 ELBOW ｴﾙﾎﾞ PL8-02 OT
52 A4043A 3 ELBOW ｴﾙﾎﾞ PL6-01 OT
53 NRG0430 1 BKT, SW BKT SW FE
54 A1065T 1 AMPLIFIER, SENSOR ｱﾝﾌﾟ ｾﾝｻ FE5F-1MC6G OT
55 H5273T BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X4L FE
56 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L FE
57 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L FE
58 H5279A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X20L FE
59 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L FE
60 H5283H BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X40L FE
61 K5256A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X8L FE
62 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L FE
63 N4018A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X3L FE
64 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L FE
65 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
66 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
67 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
68 H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L FE
69 H5292A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X20L FE
70 H5293A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X25L FE
71 N4027A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X5L FE
74 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L FE
75 H5320A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X10L FE
76 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
77 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
78 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
79 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
GL-541E PARTS LIST
6 - 4
6.ヘッド(スライドベース)(BTRG)
6.Head(Slide base)(BTRG)
