GL-541E-09 PART LIST - 第89页
22.イン,アウトコンベア(逆流れ)(ｵﾌﾟｼｮﾝ)(BTQC) 22.In,OUT conveyor(Right-to-left board flow)(Option)(BTQC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 38 H5288A BOLT, HEX SOCKET…
22.イン,アウトコンベア(逆流れ)(ｵﾌﾟｼｮﾝ)(BTQC)
22.In,OUT conveyor(Right-to-left board flow)(Option)(BTQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 NQC5010 1 BKT BKT FE
2 NQC5020 1 BKT BKT FE
3 NQC5040 1 BKT BKT FE
4 NQC5050 1 STOPPER ｽﾄｯﾊﾟ FE
5 NQC5060 1 BKT BKT FE
6 NQC5070 1 STOPPER ｽﾄｯﾊﾟ FE
7 NQC5080 1 STOPPER ｽﾄｯﾊﾟ FE
8 NQC5090 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
9 NQC0201 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
10 NQC0500 1 PIN ﾋﾟﾝ FE
11 NQC0510 1 HOLDER ﾎﾙﾀﾞ FE
12 NQC0520 1 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ OT
13 NQC0530 1 NUT ﾅｯﾄ FE
14 NQC0540 1 JOINT ｼﾞｮｲﾝﾄ FE
15 NQC0640 1 STOPPER ｽﾄｯﾊﾟ OT
16 NQC0650 1 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ FE
17 NQC0660 1 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ FE
18 IQC0950 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
19 S3122Z 2 SW, PHOTOELECTRIC SW 光電 E3S-LS3RC4 OT
20 S3122A 3 SW, PHOTOELECTRIC SW 光電 E3S-LS3CID OT
21 K5325A 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ M4R-M5-0 OT
22 S21045 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQ2B12-20D-A73HL OT
23 H4277A 2 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ SMK8WUU FE
24 IQC6072 4 NUT ﾅｯﾄ FE
25 NQC0390 1 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ OT
26 NQC3100 1 STOPPER ｽﾄｯﾊﾟ OT
27 NQC3140 1 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ FE
28 IQC6062 2 NUT ﾅｯﾄ FE
29 NQC0370 1 NUT ﾅｯﾄ FE
30 NQC0380 1 COLLAR ｶﾗｰ FE
31 NQC0290 2 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ FE
32 S2097E 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDJ2B10-35R-C73 OT
33 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L FE
34 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L FE
35 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L FE
36 H5284A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X50L FE
37 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
GL-541E PARTS LIST
22 - 3
22.イン,アウトコンベア(逆流れ)(オプション)(BTQC)
22.In,Out conveyor(Right-to-left board flow)(Option)(BTQC)
22.イン,アウトコンベア(逆流れ)(ｵﾌﾟｼｮﾝ)(BTQC)
22.In,OUT conveyor(Right-to-left board flow)(Option)(BTQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
38 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
39 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
40 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
41 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L FE
42 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L FE
43 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L FE
44 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-L FE
45 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
46 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
47 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
48 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
49 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
50 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
51 N1076A NUT, HEX ﾅｯﾄ 六角 M3P=0.5 FE
52 BTQC0300 1 BKT, SW BKT, SW ･ FE
GL-541E PARTS LIST
22 - 4
22.イン,アウトコンベア(逆流れ)(オプション)(BTQC)
22.In,Out conveyor(Right-to-left board flow)(Option)(BTQC)
GL-541E PARTS LIST

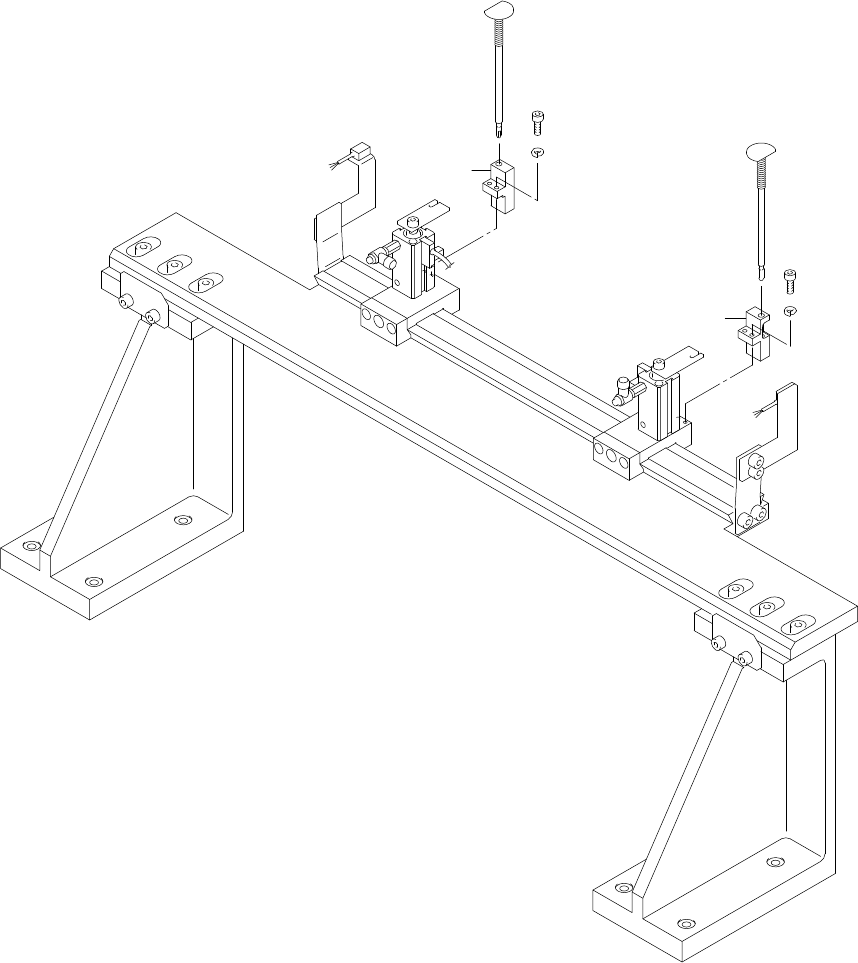

23.ピン基準ユニット(逆流れ)(オプション)(BTPQ)
23.Reference pin unit(Right-to-left board flow)(Option)(BTPQ)
23 - 1
23.ピン基準ユニット(逆流れ)(オプション)(BTPQ)
23.Reference pin unit(Right-to-left board flow)(Option)(BTPQ)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x4.5
1
2
3
4
3
4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
