1 2 3 4 YS YG 5 KHY/KJV-1111 9 4 Dust Box FDR
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1
KHJ-MK001-10 MAIN FRAME 1
/
39
2
KHJ-MK002-00 FEEDER-48 PLATE (12) 3
/
40
3
KHJ-MK003-00 BRACKET, 1 3
/
41
4
KHJ-MK004-00 BRACKET, 2 3
/
42
5
KHJ-MK005-00 STAY, FEEDER 3
/
43
6
KHY-M371R-00 RAIL GUIDE 12P 12
/
44
7
KM0-M3741-00 CASTER 63 4
/
45
8
92907-04200
WASHER, PLAIN 30
/
46
9
98707-03006
SCREW, FLAT HEAD 120
/
47
10
91317-04008 BOLT HEX. SOCKET HEAD 43 M4X8
/
48
11
91317-06008 BOLT HEX. SOCKET HEAD 16 M6X8
/
49
12
KHY-M373C-10 CHAIN 1
50
13
KHJ-MK007-00 STOPPER 2
/
51
14 52
15 53
16 54
17 55
18 56
19 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
KHY/KJV-1111
9
3
FDR Stand Type144
FDR
1 2
3
4
YS
YG
5
KHY/KJV-1111
9
4
Dust Box
FDR
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q'ty Remarks Rev. Rank Level No. Part No. Part Name Q'ty Remarks Rev. Rank Level

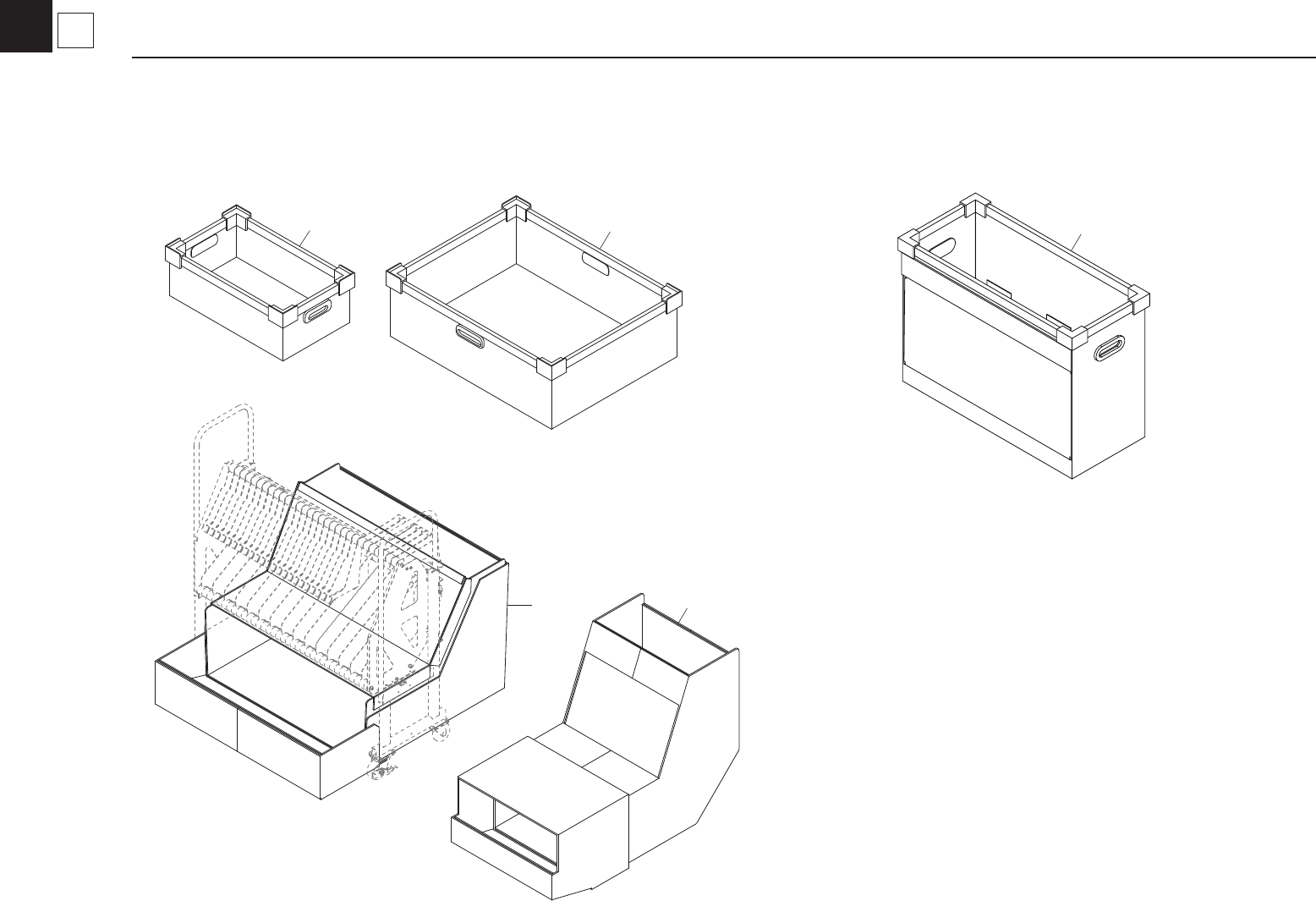

1 KHY-M3600-02
DUST BOX ASSY.
1
in Tape Cutter
/
35
(FES24 X 12P)
36
2 KHY-M3600-11
DUST BOX
1
in Tape Cutter
/
37
(FIX60,24)
38
3 KHY-M3600-A2
DUST BOX ASSY,720
1
non Tape Cutter
/
39
(FIX60,24)
40
4 KHY-M3600-B0 DUST BOX ASSY,288 1
non Tape Cutter
/
41
(FES24 X 12P)
42
5
KJV-M3600-00
DUST BOX
1
for YG
/
43
6
44
7
45
8
46
9
47
10
48
11
49
12
50
13
51
14
52
15
53
16
54
17
55
18
56
19
57
20
58
21
59
22
60
23
61
24
62
25
63
26
64
27
65
28
66
29
67
30
68
31
69
32
70
33
71
34
72
