2 Retrofit instructions for single plug solution for component trolleys on S/F machines (item no.: 00166164-01) Special Design
10/2005 Edition
30
: Run the signal cable (00377716-xx) through the back panel of the housing and into the com-
munication interface. Fix it using the cable gland on the housing.

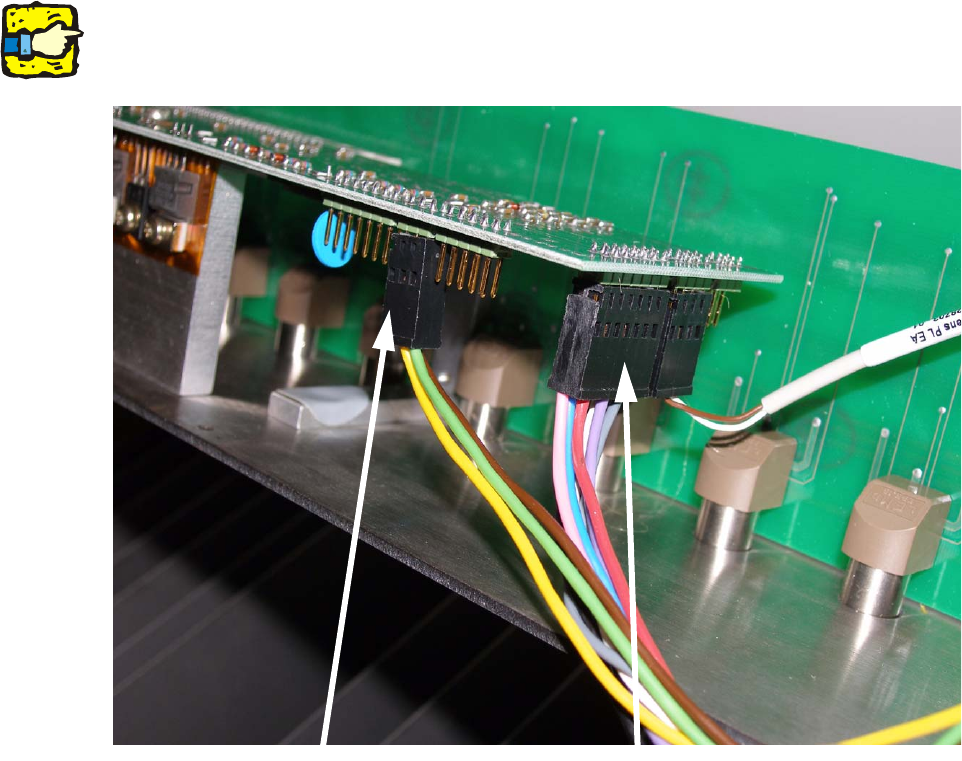

: Attach connectors X4 and X7.
2
Make sure that the polarisation in the connector is correct. 2
2
2
2
2
2
2
2
2
2
2
Connector X4
Connector X7
Special Design 2 Retrofit instructions for single plug solution for component trolleys on S/F machines (item no.: 00166164-01)
10/2005 Edition
31
: Fix the signal cable using a cable tie and refit the front panel using six screws.
2

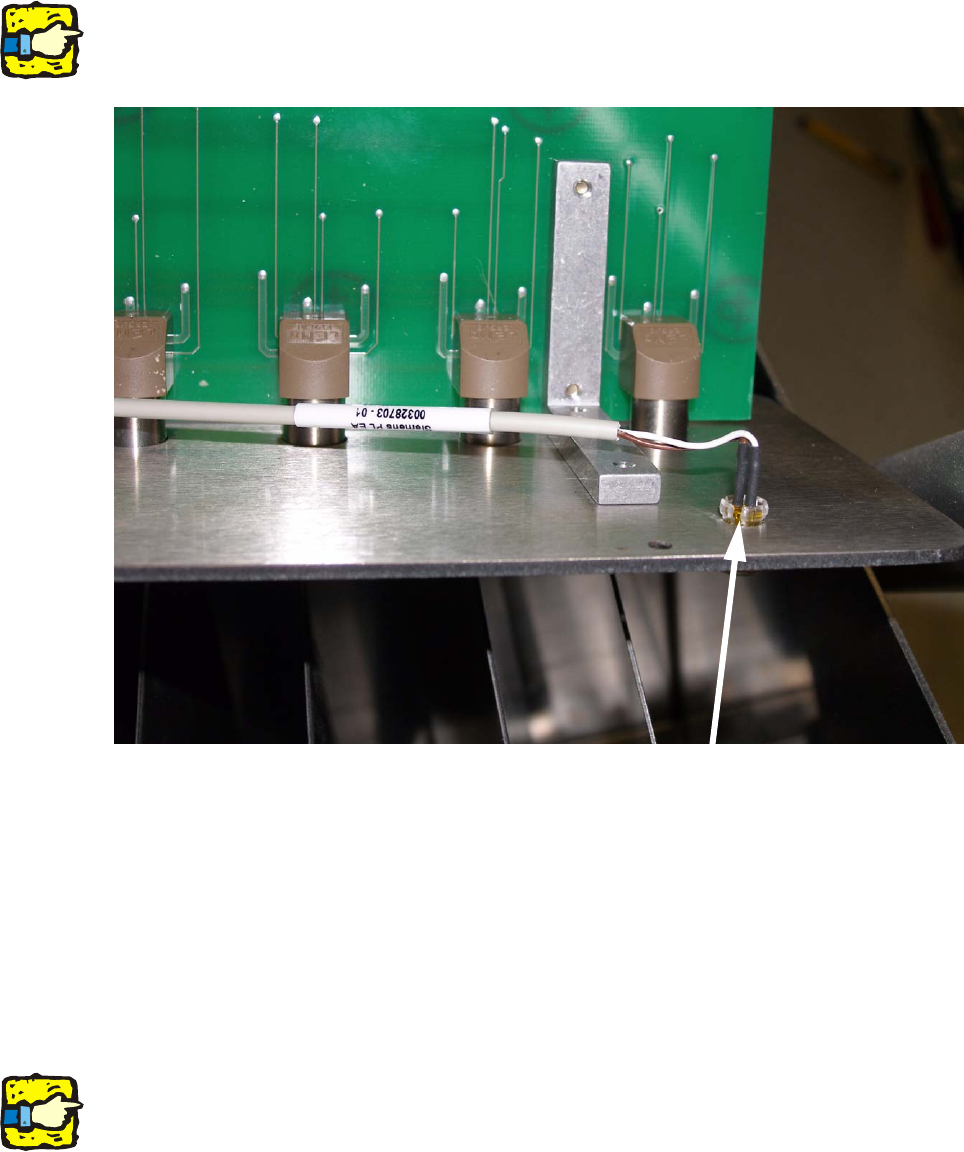

Make sure that the LED (SW MN; 00328703-xx) fits into the front panel. 2
2
2
2
: Remove the table adapter from the previous air hose.
2
: Run the new air hose beside the cables so that the air hose is connected, beneath the table
bed, with the existing, shortened air hose.
: Fix the cables and the air hose beneath the table bed using a cable tie.
2
Do not overtighten the cable tie - leave a little slack. 2
2
2
LED
2 Retrofit instructions for single plug solution for component trolleys on S/F machines (item no.: 00166164-01) Special Design
10/2005 Edition
32
2.7 Work on the machine
2.7.1 Fitting the adapter

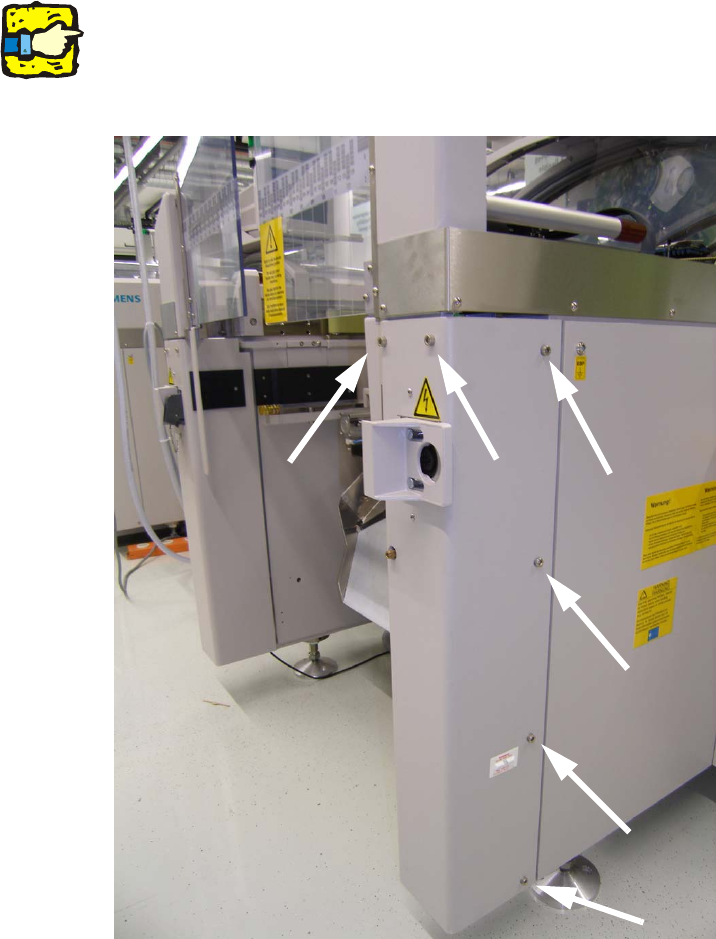

: Remove the cover plate and drill 4 holes. Cut an M5 thread. The dimensions are shown on the
enclosed drilling pattern.
2
The holes must be drilled and the thread cut with the cover plate removed, otherwise cables be-
hind it may be damaged. 2
2
2
2
2
