P-0185-003 - 第133页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0306-001 131 JD-2 101 630 088 2285 PULLEY 4 801JD-1 10-101 102 630 093 5745 PULLEY 2 801JD-1 10-102 103 630 076 2792 ROD 4 801JD-1 10-103 104 630 076 2808 R…
MODEL TCM-X210
0306-001
130
XY
テーブル部
XY TABLE SECTION

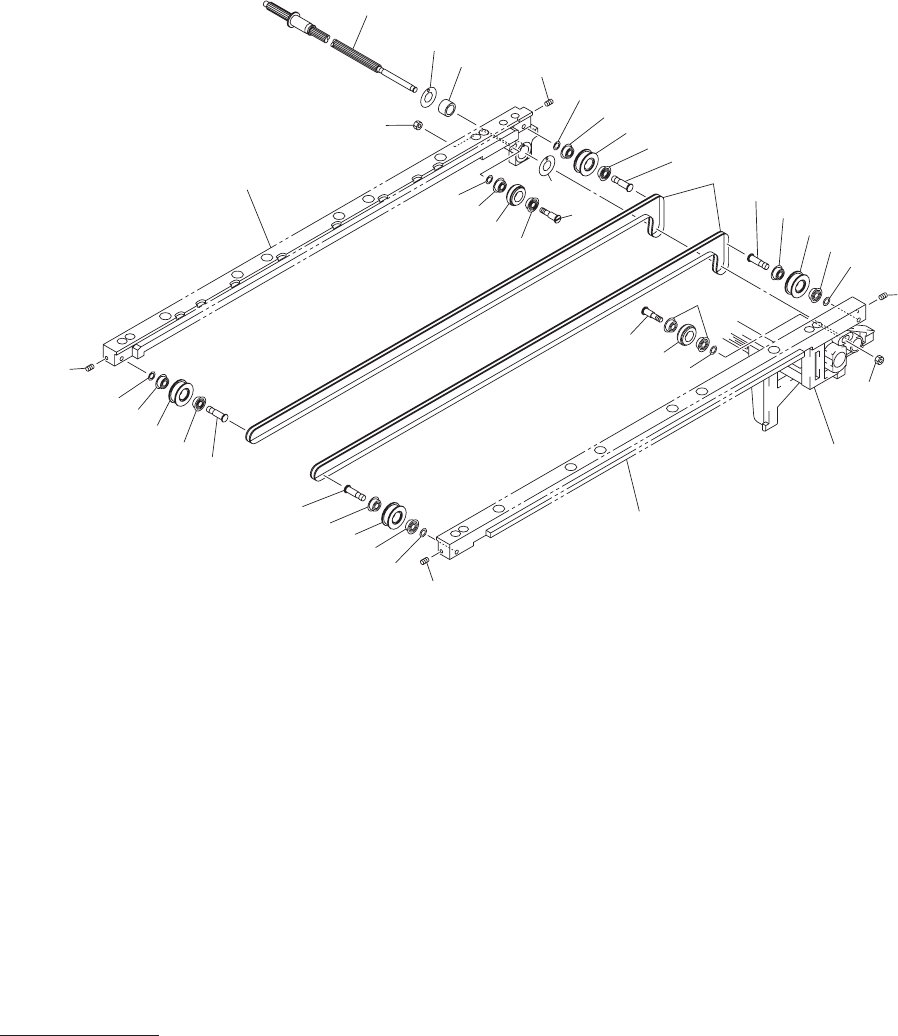

Fig. JD-2 XY
シュートベルト
XY Chute Belt
109
11
0
108
105
107
101
107
103
103
107
101
107
105
103
107
101
107
105
11
2
105
11
2
107
101
107
103
11
2
11
3
106
107
11
0
104
105
107
102
107
104
102
105
112
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JD-4
Key No.306
11
3
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
131
JD-2
101 630 088 2285 PULLEY 4 801JD-110-101
102 630 093 5745 PULLEY 2 801JD-110-102
103 630 076 2792 ROD 4 801JD-110-103
104 630 076 2808 ROD 2 801JD-110-104
105 630 076 2815 COLLAR 6 801JD-110-105
106 630 120 1030 BELT,FLAT 2 801JD-110-106
107 630 001 1586 BEARING,RADIAL 12 LF-1050ZZ 801JD-110-107
108 630 076 8848 BEARING,RADIAL 1 TLA1210Z 801JD-110-108
109 630 093 5752 SHAFT,LINEAR 1 801JD-110-109
110 630 051 6166 MECH PARTS(DRYMET WASHER) 2 801JD-110-120
112 630 008 2296 SET SCREW 4 801JD-110-112
113 411 141 0307 NUT HEX 4 2 801JD-110-113
MODEL TCM-X210
0306-001
132
XY
テーブル部
XY TABLE SECTION
Fig. JD-4 XY
シュートベース
XY Chute Base
310
313
315
303
304
310
313
315
305
318
314
317
321
301
315
313
309
302
308
307
306
See Fig.JC-1
Key No.10
See Fig.JD-7
Key No.622
See Fig.JD-7
Key No.622
See Fig.JD-1
Key No.33
See Fig.JC-1
Key No.10
See Fig.JC-1
Key No.9
See Fig.JC-1
Key No.9
315
311
313
309
308
311
311
311
312
321
305
318
314
317
312
