MODEL TCM-X210 0306-001 118 XY トップベース部 XY TOP BASE SECTION Fig. JC-1 バックアップベース Back-up Base 8 See Fig.JC-4 Key No.302 See Fig.JB-4 Key No.314 See Fig.JB-4 Key No.302 8 13 BACK-UP PIN R1 3 12 2 12 1 14 10 9 17 20 1 1 16 1…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
117
JB-5
401 630 067 0004 BRACKET 1 801JB-110-401
402 630 066 1217 BRACKET 1 801JB-110-402
403 630 064 5699 PLATE 1 801JB-110-403
405 630 000 0252 SENSOR,PHOTO 3 BPH44,BPH45,BPH46,EE-SX671
801JB-110-405
406 630 000 0269 SENSOR,PHOTO(CONNECTOR) 3 EE-1001 801JB-110-406
407 630 000 7633 BOLT,HEX-SCT 2 801JB-110-407
408 630 000 7640 BOLT,HEX-SCT 4 801JB-110-408
409 411 113 0502 SCR PAN 3X14 6 801JB-110-409
410 411 141 0000 NUT HEX 3 6 801JB-110-410
411 411 141 2905 WASHER SPR 4 6 801JB-110-411
412 411 086 4408 WASHER SPR 3 6 801JB-110-412
413 411 141 4008 WASHER V 4X9X0.8 6 801JB-110-413
414 411 088 9005 WASHER F 3X6X0.5 6 801JB-110-414

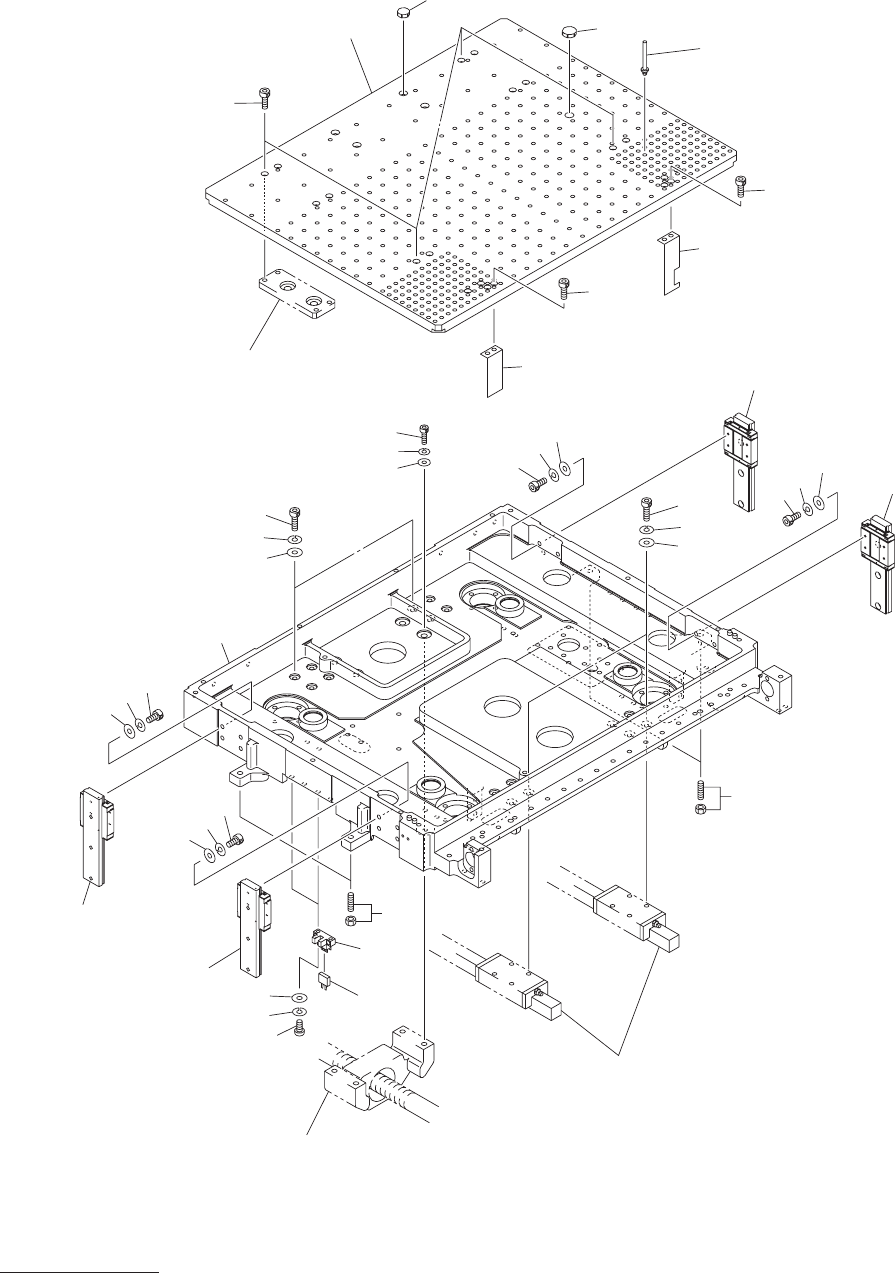

MODEL TCM-X210
0306-001
118
XY
トップベース部
XY TOP BASE SECTION
Fig. JC-1
バックアップベース
Back-up Base
8
See Fig.JC-4
Key No.302
See Fig.JB-4
Key No.314
See Fig.JB-4
Key No.302
8
13
BACK-UP PIN R1
3
12
2
12
1
14
10
9
17
20
11
16
19
11
16
19
6
10
9
19
16
11
19
16
11
7
21
18
22
14
17
20
23
24
25
33
32
4
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
119
JC-1
1 630 064 5767 PLATE 1 801JC-110-001
2 630 064 5774 PLATE 1 801JC-110-002
3 630 122 7689 BASE 1 801JC-110-003
4 630 093 5660 FRAME 1 801JC-110-004
6 630 000 0252 SENSOR,PHOTO 2 BPH60,BPH61,EE-SX671
801JC-110-006
7 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 EE-1001 801JC-110-007
8 630 065 8996 MECH PARTS(SCREW STOPPERS 4 801JC-110-008
9 630 118 4593 GUIDE,LINEAR 2 801JC-110-009
10 630 118 4609 GUIDE,LINEAR 2 801JC-110-010
11 630 000 7527 BOLT,HEX-SCT 16 801JC-110-011
12 630 000 7633 BOLT,HEX-SCT 4 801JC-110-012
13 630 000 7640 BOLT,HEX-SCT 16 801JC-110-013
14 630 000 7657 BOLT,HEX-SCT 16 801JC-110-014
16 411 141 2806 WASHER SPR 3 16 801JC-110-016
17 411 141 2905 WASHER SPR 4 16 801JC-110-017
18 411 086 4408 WASHER SPR 3 4 801JC-110-018
19 411 141 3902 WASHER V 3X7X0.5 16 801JC-110-019
20 411 141 4008 WASHER V 4X9X0.8 16 801JC-110-020
21 411 088 9005 WASHER F 3X6X0.5 4 801JC-110-021
22 411 040 7803 SCR PAN 3X12 4 801JC-110-022
23 630 000 7909 BOLT,HEX-SCT 4 801JC-110-023
24 411 141 3001 WASHER SPR 6 4 801JC-110-024
25 411 141 4305 WASHER V 6X12.5X1.6 4 801JC-110-025
32 630 109 2522 MECH PARTS(CAPS HALL) 4 801JC-110-032
33 630 122 4763 MECH PARTS(CAPS HALL) 1 801JC-110-033
