MODEL TCM-X210 0306-001 120 XY トップベース部 XY TOP BASE SECTION Fig. JC-2 バックアップ上下検出部 Back-up Leveller Detector 105 See Fig.JC-1 Key No.4 1 1 3 1 1 1 109 106 106 105 1 1 3 1 1 1 109 104 1 10 1 1 2 107
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
119
JC-1
1 630 064 5767 PLATE 1 801JC-110-001
2 630 064 5774 PLATE 1 801JC-110-002
3 630 122 7689 BASE 1 801JC-110-003
4 630 093 5660 FRAME 1 801JC-110-004
6 630 000 0252 SENSOR,PHOTO 2 BPH60,BPH61,EE-SX671
801JC-110-006
7 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 EE-1001 801JC-110-007
8 630 065 8996 MECH PARTS(SCREW STOPPERS 4 801JC-110-008
9 630 118 4593 GUIDE,LINEAR 2 801JC-110-009
10 630 118 4609 GUIDE,LINEAR 2 801JC-110-010
11 630 000 7527 BOLT,HEX-SCT 16 801JC-110-011
12 630 000 7633 BOLT,HEX-SCT 4 801JC-110-012
13 630 000 7640 BOLT,HEX-SCT 16 801JC-110-013
14 630 000 7657 BOLT,HEX-SCT 16 801JC-110-014
16 411 141 2806 WASHER SPR 3 16 801JC-110-016
17 411 141 2905 WASHER SPR 4 16 801JC-110-017
18 411 086 4408 WASHER SPR 3 4 801JC-110-018
19 411 141 3902 WASHER V 3X7X0.5 16 801JC-110-019
20 411 141 4008 WASHER V 4X9X0.8 16 801JC-110-020
21 411 088 9005 WASHER F 3X6X0.5 4 801JC-110-021
22 411 040 7803 SCR PAN 3X12 4 801JC-110-022
23 630 000 7909 BOLT,HEX-SCT 4 801JC-110-023
24 411 141 3001 WASHER SPR 6 4 801JC-110-024
25 411 141 4305 WASHER V 6X12.5X1.6 4 801JC-110-025
32 630 109 2522 MECH PARTS(CAPS HALL) 4 801JC-110-032
33 630 122 4763 MECH PARTS(CAPS HALL) 1 801JC-110-033
MODEL TCM-X210
0306-001
120

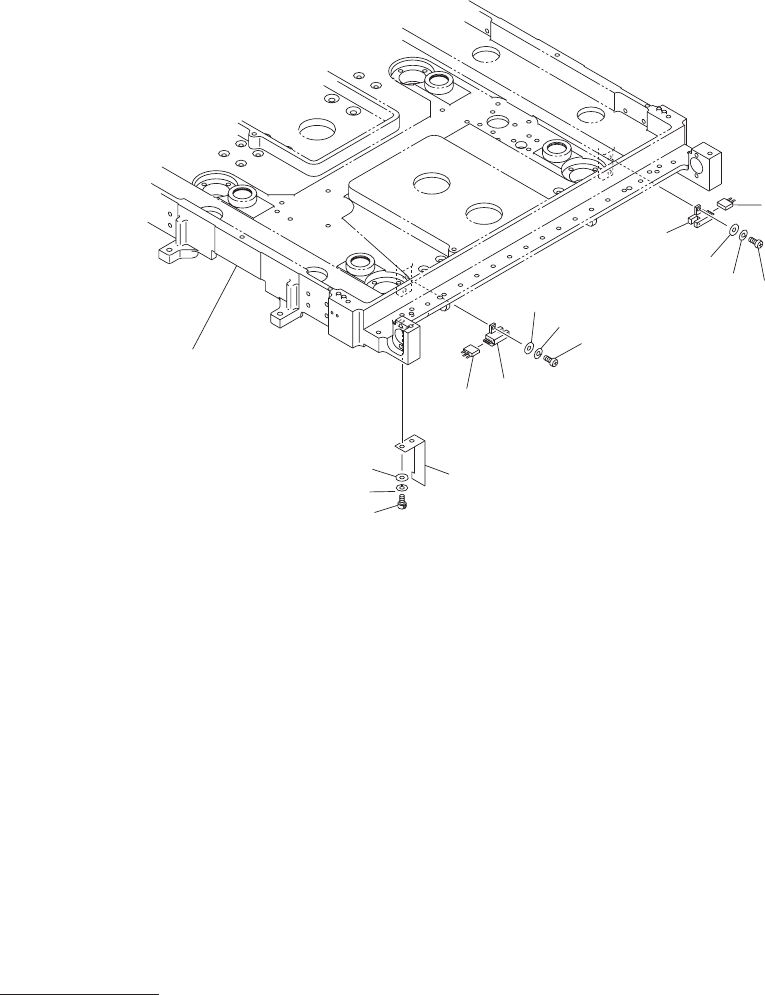

XY
トップベース部
XY TOP BASE SECTION
Fig. JC-2
バックアップ上下検出部
Back-up Leveller Detector
105
See Fig.JC-1
Key No.4
11
3
111
109
106
106
105
11
3
111
109
104
110
11
2
107
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
121
JC-2
104 630 064 5835 PLATE 1 801JC-110-104
105 630 032 5287 SENSOR,PHOTO 2 BPH85,BPH86,EE-SX672
801JC-110-105
106 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 EE-1001 801JC-110-106
107 630 000 7626 BOLT,HEX-SCT 2 801JC-110-107
109 411 040 6202 SCR PAN 3X10 4 801JC-110-109
110 411 141 2905 WASHER SPR 4 2 801JC-110-120
111 411 086 4408 WASHER SPR 3 4 801JC-110-111
112 411 141 4008 WASHER V 4X9X0.8 2 801JC-110-112
113 411 119 1909 WASHER V 3X7X0.5 4 801JC-110-113
