MODEL TCM-X210 0506-002 146 XY テーブル配管、配線 XY T ABLE PIPING,WIRING Fig. JE-4 Z クランプ配管 - ２ Z Clamp Piping-2 See Fig.L-1 Key No.9 308 309 310 306 31 1 307 309 312 304 302 303 305
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
145
JE-3
201 630 086 7961 BRACKET 1 801JE-110-201
202 630 066 1385 BRACKET 1 801JE-110-202
203 630 066 1392 BRACKET 1 801JE-110-203
204 630 079 0375 PLATE 1 801JE-110-204
205 630 118 9376 PLATE 1 801JE-110-205
206 630 112 7217 MECH PARTS(GUIDE CABLE) 1 801JE-110-206
208 630 076 8916 PIPE FITTINGS 3 801JE-110-208
209 630 112 7231 MECH PARTS(GUIDE CABLE) 2 801JE-110-209
211 630 000 7626 BOLT,HEX-SCT 2 801JE-110-211
212 630 000 7763 BOLT,HEX-SCT 4 801JE-110-212
213 411 050 5004 SCR TRS 3X6 4 801JE-110-213
216 411 140 8007 SCR TRS 5X6 8 801JE-110-216
218 411 141 2905 WASHER SPR 4 2 801JE-110-218
219 411 141 6705 WASHER SPR 5 4 801JE-110-219
221 411 141 4008 WASHER V 4X9X0.8 2 801JE-110-221
222 411 141 4107 WASHER V 5X10X1 4 801JE-110-222
224 630 000 7503 BOLT,HEX-SCT 4 801JE-110-224
225 411 141 2806 WASHER SPR 3 4 801JE-110-225
226 411 141 3902 WASHER V 3X7X0.5 4 801JE-110-226
227 630 079 8432 AIR LINE EQPT 6 801JE-110-227
233 630 076 8824 BOLT,HEX-SCT(BUTTON HEAD) 12 801JE-110-233
MODEL TCM-X210
0506-002
146
XY
テーブル配管、配線
XY TABLE PIPING,WIRING

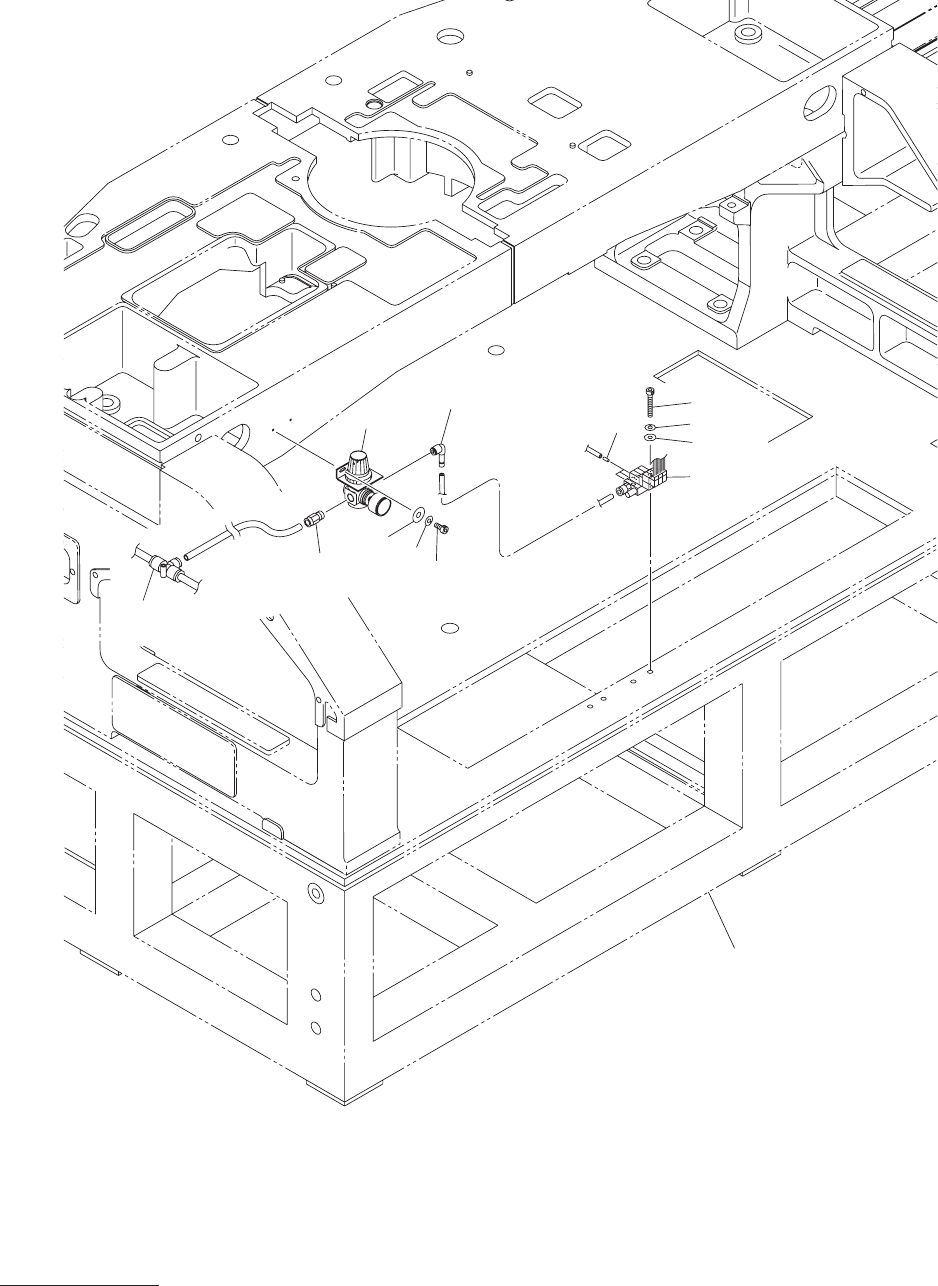

Fig. JE-4 Z
クランプ配管 - ２
Z Clamp Piping-2
See Fig.L-1
Key No.9
308
309
310
306
311
307
309
312
304
302
303
305
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
147
JE-4
302 630 003 7005 PIPE FITTINGS 1 801JE-110-302
303 630 080 1439 PIPE FITTINGS 1 801JE-110-303
304 630 123 3260 AIR LINE EQPT 1 801JE-110-304
305 630 003 7302 PIPE FITTINGS 1 801JE-110-305
306 630 076 9005 VALVE 1 YSV54,YSV55,YSV56 801JE-110-306
307 630 000 7633 BOLT,HEX-SCT 2 801JE-110-307
308 630 000 7688 BOLT,HEX-SCT 2 801JE-110-308
309 411 141 2905 WASHER SPR 4 4 801JE-110-309
310 411 141 4008 WASHER V 4X9X0.8 2 801JE-110-310
311 630 079 8432 AIR LINE EQPT 3 801JE-110-311
312 630 001 0213 WASHER 2 801JE-110-312
