MODEL TCM-X210 0306-001 168 ヘッド駆動ユニット HEAD DRIVING UNIT Fig. KB-2 吸着上下部 Pick-up Leveller 131 133 135 134 128 136 132 1 14 1 1 2 1 1 1 1 1 0 123 108 1 1 7 127 126 125 124 1 1 8 1 1 9 120 121 122 1 1 5 1 16 105 106 107 108…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE

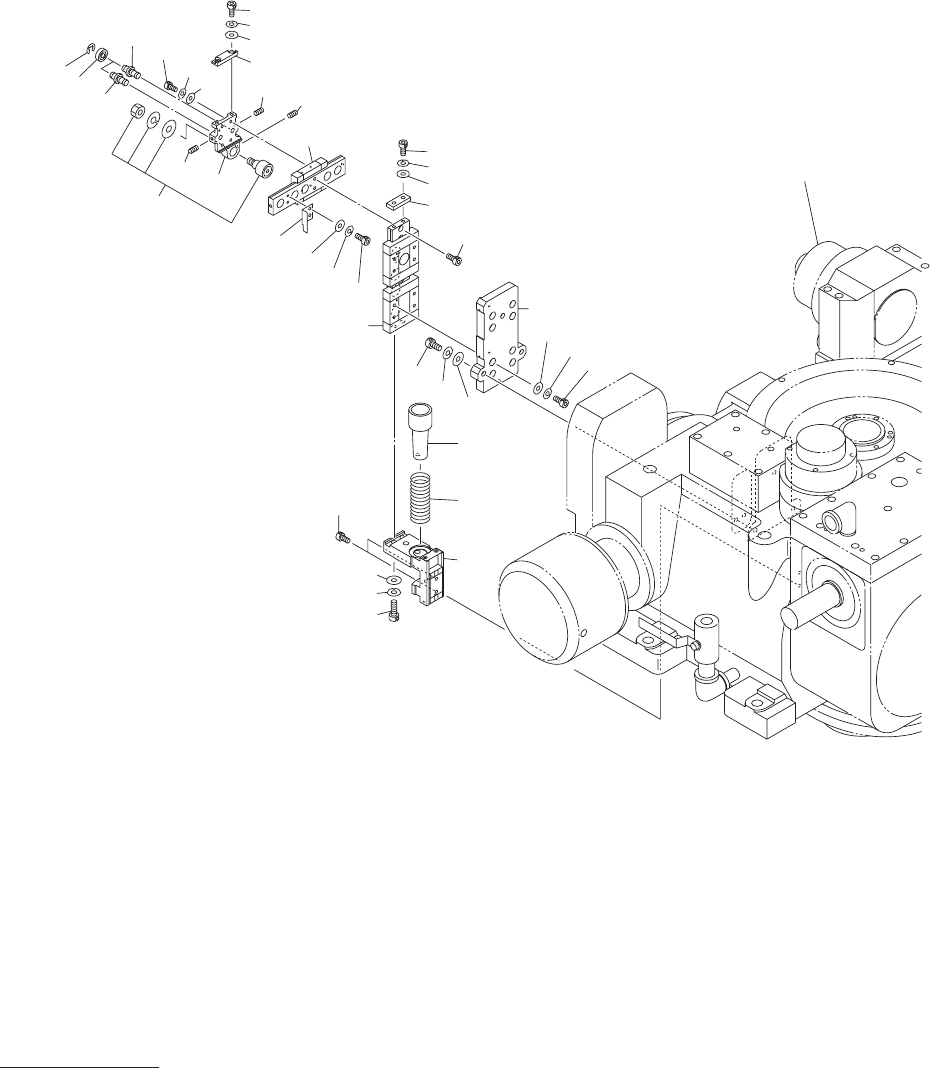

MODEL TCM-X210
0306-001
167
KB-1
2 630 093 0467 GUIDE,LINEAR 1 801KB-110-002
3 630 093 1457 PLATE,LOCATE 1 801KB-110-003
4 630 038 5663 PIN,LOCATE 1 801KB-110-004
5 630 038 5687 PIN,LOCATE 1 801KB-110-005
6 630 001 1241 BEARING,RADIAL 2 R-1560ZZ 801KB-110-006
7 411 001 0003 RING E 4 2 801KB-110-007
8 630 000 8920 SET SCREW 2 801KB-110-008
9 630 084 5792 CAM FOLLOWER 1 #99401-083 801KB-110-009
10 411 141 4008 WASHER V 4X9X0.8 2 801KB-110-010
11 411 141 2905 WASHER SPR 4 2 801KB-110-011
12 630 000 7619 BOLT,HEX-SCT 2 801KB-110-012
13 630 000 8944 SET SCREW 1 801KB-110-013
14 411 141 4701 WASHER V 10X21X2 1 801KB-110-014
15 411 141 3209 WASHER SPR 10 1 801KB-110-015
16 411 141 1106 NUT HEX 10 1 801KB-110-016
17 630 093 0221 GUIDE,LINEAR 1 801KB-110-017
18 630 000 7626 BOLT,HEX-SCT 2 801KB-110-018
19 630 092 9935 PLATE 1 801KB-110-019
20 411 141 4008 WASHER V 4X9X0.8 10 801KB-110-020
21 411 141 2905 WASHER SPR 4 10 801KB-110-021
22 630 000 7640 BOLT,HEX-SCT 8 801KB-110-022
23 630 092 9959 PLATE 1 801KB-110-023
24 630 092 9867 BLOCK 1 801KB-110-024
25 630 093 3192 BOLT,HEX-SCT 2 801KB-110-025
26 411 141 4107 WASHER V 5X10X1 2 801KB-110-026
27 411 141 6705 WASHER SPR 5 2 801KB-110-027
28 630 048 7787 BOLT 2 801KB-110-028
29 630 007 2501 CAM FOLLOWER 1 CF8BUU 801KB-110-029
31 630 098 5405 COLLAR 1 801KB-110-031
32 630 093 5332 SPRING,COMP 1 801KB-110-032
33 630 099 1055 GUIDE,LINEAR 1 801KB-110-033
34 411 141 4305 WASHER V 6X12.5X1.6 5 801KB-110-034
35 411 141 3001 WASHER SPR 6 5 801KB-110-035
36 630 000 7909 BOLT,HEX-SCT 2 801KB-110-036
37 630 093 2690 PIPE 1 801KB-110-037
38 630 000 7664 BOLT,HEX-SCT 2 801KB-110-038
39 411 141 0901 NUT HEX 8 1 801KB-110-039
40 411 141 3100 WASHER SPR 8 1 801KB-110-040
41 411 141 4503 WASHER V 8X17X1.6 1 801KB-110-041
42 630 029 6389 PIPE FITTINGS 1 801KB-110-042
43 630 086 4120 PLATE 1 801KB-110-043
44 411 141 3902 WASHER V 3X7X0.5 2 801KB-110-044
45 411 141 2806 WASHER SPR 3 2 801KB-110-045
46 630 000 7503 BOLT,HEX-SCT 2 801KB-110-046
47 630 000 7886 BOLT,HEX-SCT 3 801KB-110-047
48 411 141 3902 WASHER V 3X7X0.5 4 801KB-110-048
49 411 141 2806 WASHER SPR 3 4 801KB-110-049
50 630 000 7510 BOLT,HEX-SCT 4 801KB-110-050
MODEL TCM-X210
0306-001
168
ヘッド駆動ユニット
HEAD DRIVING UNIT
Fig. KB-2
吸着上下部
Pick-up Leveller
131
133
135
134
128
136
132
114
11
2
111
11
0
123
108
11
7
127
126
125
124
11
8
11
9
120
121
122
11
5
116
105
106
107
108
144
143
145
146
102
149
148
147
103
109
104
See Fig.B-1
Key No.1
113
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
169
KB-2
102 630 091 4023 GUIDE,LINEAR 1 801KB-110-102
103 630 092 9942 PLATE,LOCATE 1 801KB-110-103
104 630 038 5663 PIN,LOCATE 1 801KB-110-104
105 630 038 5687 PIN,LOCATE 1 801KB-110-105
106 630 001 1241 BEARING,RADIAL 2 R-1560ZZ 801KB-110-106
107 411 001 0003 RING E 4 2 801KB-110-107
108 630 000 8920 SET SCREW 2 801KB-110-108
109 630 084 5792 CAM FOLLOWER 1 #99401-083 801KB-110-109
110 411 141 4008 WASHER V 4X9X0.8 2 801KB-110-120
111 411 141 2905 WASHER SPR 4 2 801KB-110-111
112 630 000 7619 BOLT,HEX-SCT 2 801KB-110-112
113 630 000 8944 SET SCREW 1 801KB-110-113
114 411 141 3902 WASHER V 3X7X0.5 4 801KB-110-114
115 411 141 2806 WASHER SPR 3 4 801KB-110-115
116 630 000 7510 BOLT,HEX-SCT 4 801KB-110-116
117 630 093 0214 GUIDE,LINEAR 1 801KB-110-117
118 630 000 7626 BOLT,HEX-SCT 2 801KB-110-118
119 630 092 9881 PLATE 1 801KB-110-119
120 411 141 4008 WASHER V 4X9X0.8 8 801KB-110-120
121 411 141 2905 WASHER SPR 4 8 801KB-110-121
122 630 000 7626 BOLT,HEX-SCT 8 801KB-110-122
123 630 092 9959 PLATE 1 801KB-110-123
124 630 086 4113 PLATE 1 801KB-110-124
125 411 141 4008 WASHER V 4X9X0.8 2 801KB-110-125
126 411 141 2905 WASHER SPR 4 2 801KB-110-126
127 630 000 7633 BOLT,HEX-SCT 2 801KB-110-127
128 630 048 7787 BOLT 2 801KB-110-128
131 630 098 5399 COLLAR 1 801KB-110-131
132 630 116 7404 SPRING,COMP 1 801KB-110-132
133 630 099 1062 GUIDE,LINEAR 1 801KB-110-133
134 411 141 4305 WASHER V 6X12.5X1.6 2 801KB-110-134
135 411 141 3001 WASHER SPR 6 2 801KB-110-135
136 630 000 7909 BOLT,HEX-SCT 2 801KB-110-136
143 630 086 4144 PLATE 1 801KB-110-143
144 411 141 3902 WASHER V 3X7X0.5 2 801KB-110-144
145 411 141 2806 WASHER SPR 3 2 801KB-110-145
146 630 000 7503 BOLT,HEX-SCT 2 801KB-110-146
147 411 141 4305 WASHER V 6X12.5X1.6 3 801KB-110-147
148 411 141 3001 WASHER SPR 6 3 801KB-110-148
149 630 000 7886 BOLT,HEX-SCT 3 801KB-110-149
