Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0306-001 203 MA-2 102 630 1 16 9774 ST A Y 1 801MA-1 10-102 103 630 1 16 9781 ST A Y 1 801MA-1 10-103 104 630 1 16 9798 ST A Y 1 801MA-1 10-104 105 630 1 16…
MODEL TCM-X210
0306-001
202
カバー部
COVER SECTION

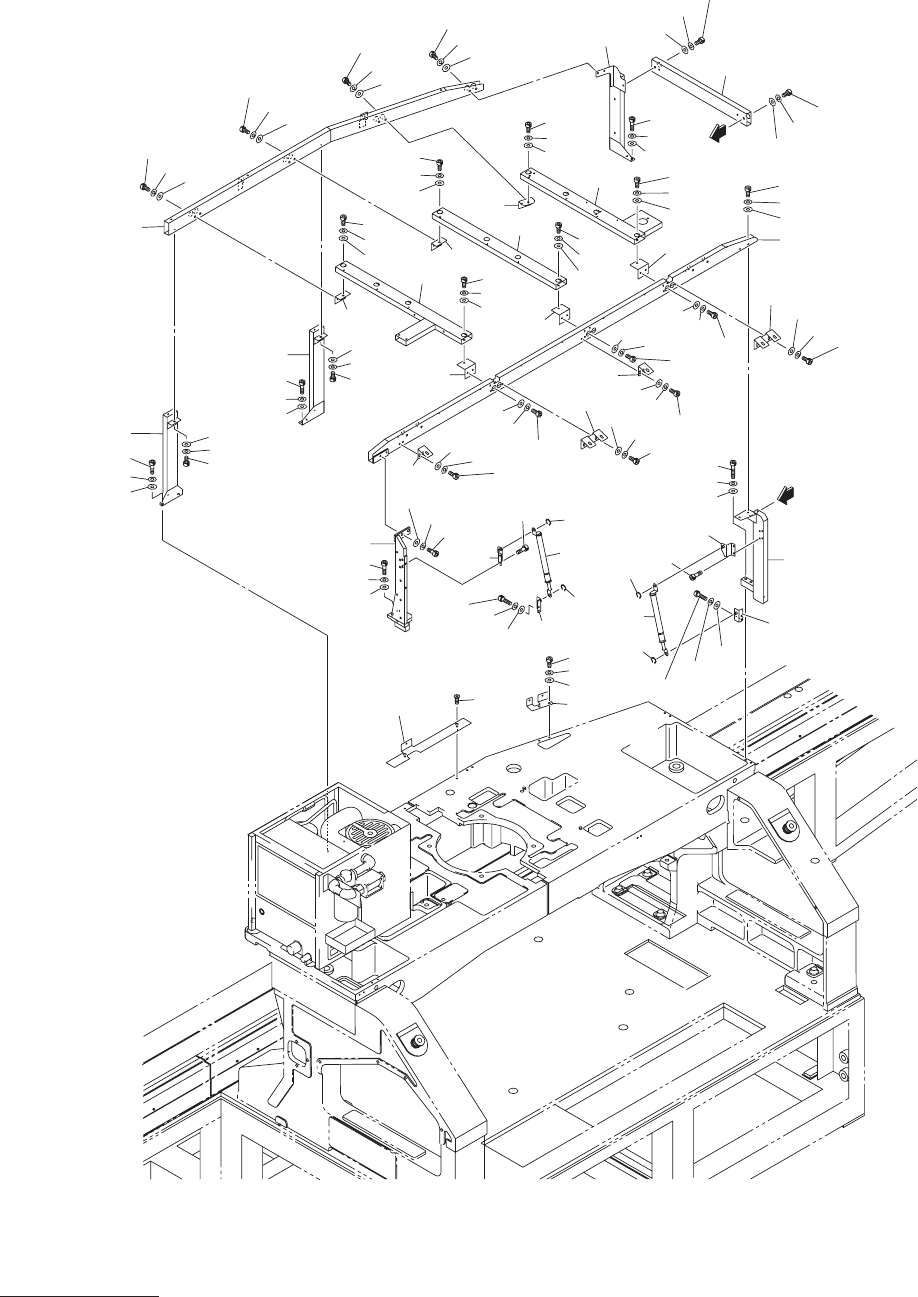

Fig. MA-2
上部フレーム
Upper Frame
147
135
148
149
140
146
147
140
11
3
146
147
109
140
146
147
140
108
11
5
146
147
140
11
8
140
146
147
140
146
147
140
146
147
140
146
147
107
11
8
146
147
147
146
140
147
146
140
135
104
148
149
135
105
148
149
140
146
147
127
147
146
140
147
146
140
128
133
146
140
129
133
146
140
128
133
146
102
138
147
146
122
140
135
148
149
120
139
123
148
135
131
149
138
146
147
132
146
140
126
147
11
2
133
146
129
11
9
140
147
146
141
139
123
11
6
123
11
6
121
147
146
140
127
127
140
146
147
A
A
111
146
140
147
103
146
140
106
123
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
203
MA-2
102 630 116 9774 STAY 1 801MA-110-102
103 630 116 9781 STAY 1 801MA-110-103
104 630 116 9798 STAY 1 801MA-110-104
105 630 116 9804 STAY 1 801MA-110-105
106 630 116 9811 FRAME 1 801MA-110-106
107 630 116 9828 FRAME 1 801MA-110-107
108 630 122 7610 FRAME 1 801MA-110-108
109 630 116 9842 FRAME 1 801MA-110-109
111 630 116 9859 FRAME 1 801MA-110-111
112 630 119 6626 BRACKET 1 801MA-110-112
113 630 119 8644 FRAME 1 801MA-110-113
115 630 119 6633 BRACKET 1 801MA-110-115
116 630 035 6694 SPRING 2 2004 801MA-110-116
118 630 119 6640 BRACKET 2 801MA-110-118
119 630 115 4268 BLOCK 1 801MA-110-119
120 630 115 4275 BLOCK 1 801MA-110-120
121 630 115 4282 BLOCK 1 801MA-110-121
122 630 115 4343 BLOCK 1 801MA-110-122
123 630 008 1985 RING 4 801MA-110-123
126 411 002 4307 SCR FLT 5X10 2 801MA-110-126
127 630 119 6657 BRACKET 3 801MA-110-127
128 630 119 6664 BRACKET 2 801MA-110-128
129 630 119 6688 BRACKET 2 801MA-110-129
131 630 098 7126 FRAME 1 801MA-110-131
132 630 119 6701 BRACKET 1 801MA-110-132
133 630 029 1391 WASHER 8 801MA-110-133
135 630 000 7893 BOLT,HEX-SCT 10 801MA-110-135
138 630 000 7787 BOLT,HEX-SCT 4 801MA-110-138
139 630 000 7770 BOLT,HEX-SCT 4 801MA-110-139
140 630 000 7756 BOLT,HEX-SCT 35 801MA-110-140
141 630 000 7763 BOLT,HEX-SCT 2 801MA-110-141
146 411 141 6705 WASHER SPR 5 41 801MA-110-146
147 411 141 4107 WASHER V 5X10X1 33 801MA-110-147
148 411 141 3001 WASHER SPR 6 10 801MA-110-148
149 411 141 4305 WASHER V 6X12.5X1.6 10 801MA-110-149
MODEL TCM-X210
0306-001
204
カバー部
COVER SECTION

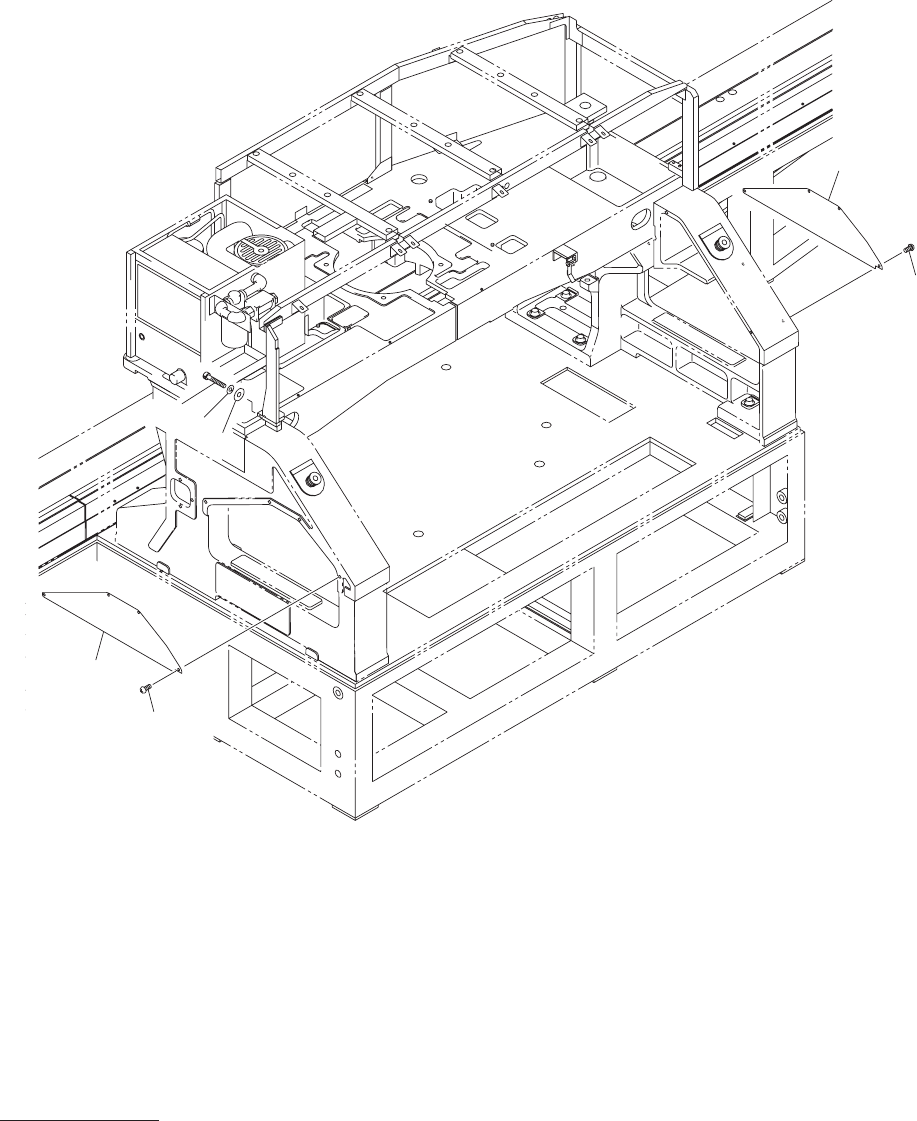

Fig. MA-3
保護カバー
Protection Cover
239
245
246
224
22
5
224
225
