P-0185-003 - 第223页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0506-002 221 MB-1 1 630 1 19 7302 FRAME 1 801MB-1 10-001 2 630 1 19 7319 FRAME 1 801MB-1 10-002 4 630 1 19 7104 FRAME 1 801MB-1 10-004 5 630 1 19 71 1 1 FRA…
MODEL TCM-X210
0306-001
220
フィーダキャリッジカバー部
FEEDER CARRIAGE COVER SECTION

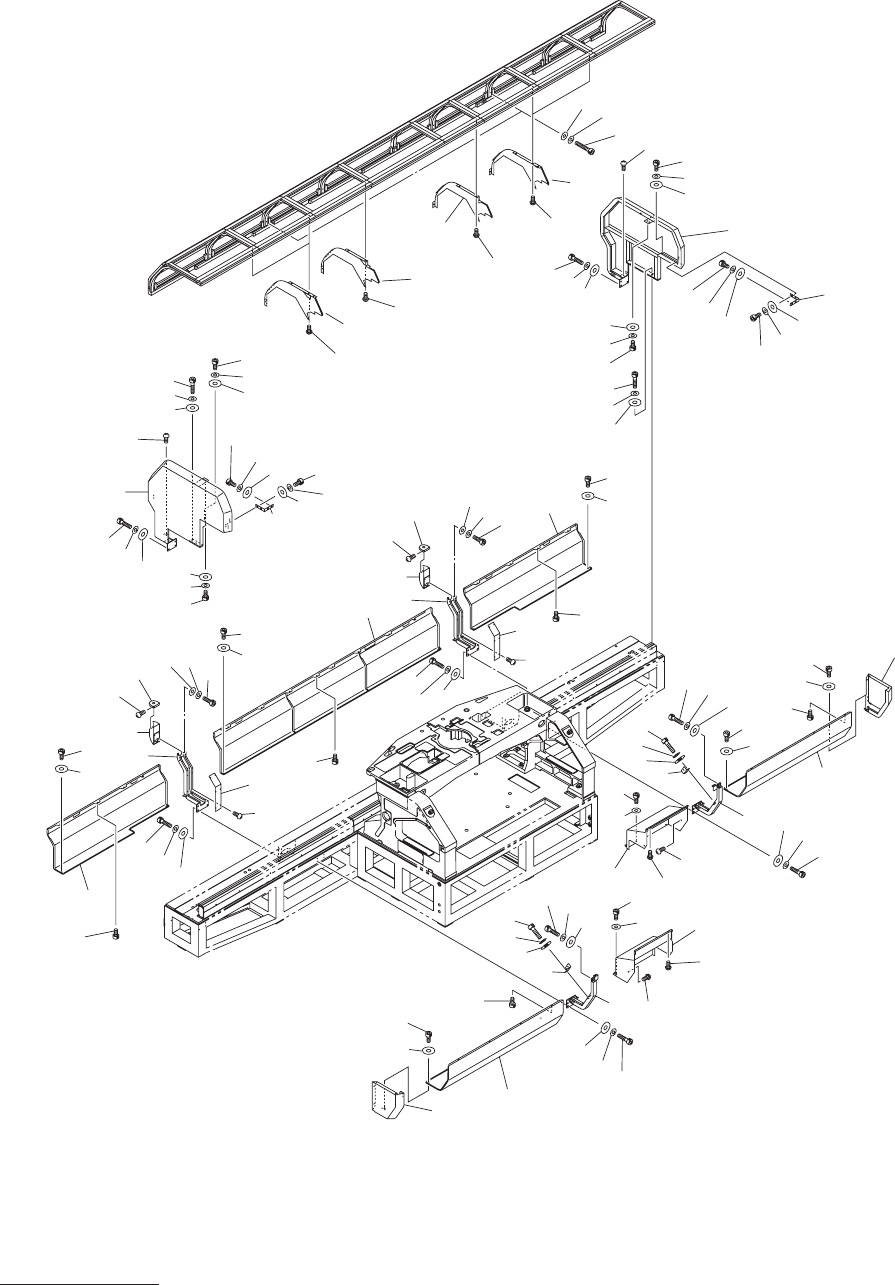

Fig. MB-1
後面カバー
Rear Cover
49
45
39
18
44
19
44
20
38
49
45
43
21
46
29
30
32
6
7
21
6
7
21
8
38
40
41
42
21
46
21
46
21
21
46
17
21
42
48
48
45
46
34
45
46
5
48
45
46
34
16
12
21
46
21
48
45
46
4
41
40
13
45
43
49
38
20
8
38
42
40
41
36
44
35
44
21
46
47
24
46
45
47
46
45
47
40
41
42
40
41
42
45
46
44
43
45
46
2
21
46
44
27
38
44
38
42
41
40
26
46
21
40
41
42
1
47
45
46
46
45
47
40
41
42
46
24
45
47
44
43
45
46
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
221
MB-1
1 630 119 7302 FRAME 1 801MB-110-001
2 630 119 7319 FRAME 1 801MB-110-002
4 630 119 7104 FRAME 1 801MB-110-004
5 630 119 7111 FRAME 1 801MB-110-005
6 630 102 4998 FRAME 2 801MB-110-006
7 630 097 0944 FRAME 2 801MB-110-007
8 630 097 1019 COVER 2 801MB-110-008
12 630 119 7357 FRAME 1 801MB-110-012
13 630 119 7364 FRAME 1 801MB-110-013
16 630 097 4386 COVER 1 801MB-110-016
17 630 097 4393 COVER 1 801MB-110-017
18 630 120 7551 PLATE(R) 2 801MB-110-018
19 630 120 7568 PLATE(L) 2 801MB-110-019
20 630 102 5476 BRACKET(STOP) 2 801MB-110-020
21 630 000 8456 BOLT,HEX-SCT 37 801MB-110-021
24 630 119 6985 SUPPORT 2 801MB-110-024
26 630 117 5874 COVER 1 801MB-110-026
27 630 119 6503 COVER 1 801MB-110-027
29 630 097 7455 COVER(R) 1 801MB-110-029
30 630 117 6055 COVER 1 801MB-110-030
32 630 097 7462 COVER(L) 1 801MB-110-032
34 630 119 8637 BRACKET 2 801MB-110-034
35 630 120 7575 PLATE(L) 1 801MB-110-035
36 630 120 7582 PLATE(R) 1 801MB-110-036
38 411 113 9000 SCR TRS 5X8 14 801MB-110-038
39 630 000 7794 BOLT,HEX-SCT 4 801MB-110-039
40 630 000 7893 BOLT,HEX-SCT 26 801MB-110-040
41 411 141 3001 WASHER SPR 6 26 801MB-110-041
42 630 001 0237 WASHER 26 801MB-110-042
43 630 000 7756 BOLT,HEX-SCT 12 801MB-110-043
44 411 113 9109 SCR TRS 5X10 40 801MB-110-044
45 411 141 6705 WASHER SPR 5 32 801MB-110-045
46 630 001 0220 WASHER 37 801MB-110-046
47 630 000 7763 BOLT,HEX-SCT 12 801MB-110-047
48 630 000 7770 BOLT,HEX-SCT 4 801MB-110-048
49 411 141 4107 WASHER V 5X10X1 8 801MB-110-049
MODEL TCM-X210
0306-001
222
フィーダキャリッジカバー部
FEEDER CARRIAGE COVER SECTION
Fig. MB-2
F
軸冷却ファン
F Axis Cooling Fan
See Fig.MB-3
Key No.221
107
11
0
138
108
130
133
132
135
137
136
134
132
132
131
134
133
132
108
130
133
132
107
See Fig.MB-3
Key No.222
132
131
134
133
132
134
132
110
138
135
137
136
