P-0185-003 - 第251页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0506-002 249 RC-3 251 630 127 0913 TERMINAL 9 801RC-1 10-251 252 630 127 0968 ACCESSORY ,WIRING 1 801RC-1 10-252 253 630 127 1019 ACCESSORY ,WIRING 3 801RC-…
MODEL TCM-X210
0306-001
248
200V
電源部１
200V POWER SUPPLY SECTION 1

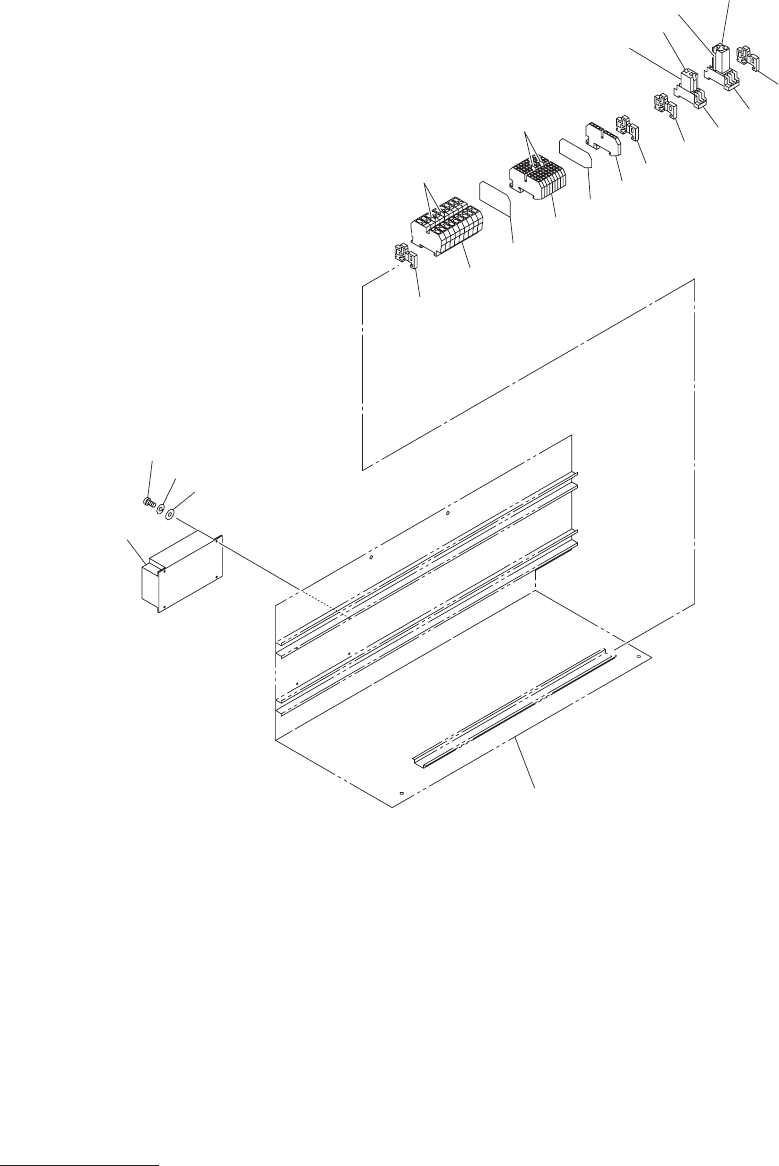

Fig. RC-3 200V
電源３
200V Power Supply 3
259
297
298
299
254
See Fig.RC-1
Key No.61
251
.
252
257
261
254
253
.
260
256
.
258
.
255
262
254
265
263
266
267
264
254
259
265
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
249
RC-3
251 630 127 0913 TERMINAL 9 801RC-110-251
252 630 127 0968 ACCESSORY,WIRING 1 801RC-110-252
253 630 127 1019 ACCESSORY,WIRING 3 801RC-110-253
254 630 091 1749 BRACKET,WIRING 4 801RC-110-254
255 630 058 8460 ACCESSORY,WIRING 2 801RC-110-255
256 630 127 0937 TERMINAL 12 801RC-110-256
257 630 127 0975 ACCESSORY,WIRING 1 801RC-110-257
258 630 127 0999 ACCESSORY,WIRING 3 801RC-110-258
259 630 083 5564 ACCESSORY,WIRING 2 801RC-110-259
260 630 083 5601 ACCESSORY,WIRING 1 801RC-110-260
261 630 127 0944 TERMINAL 1 801RC-110-261
262 630 116 8821 FILTER,NOISE 1 ZNF2 801RC-110-262
263 630 049 2125 RELAY 1 K63 801RC-110-263
264 630 007 3911 TIMER 1 KT6 801RC-110-264
265 630 000 4144 SOCKET 2 801RC-110-265
266 630 000 1020 BRACKET,WIRING 1 801RC-110-266
267 630 000 1037 BRACKET,WIRING 1 801RC-110-267
297 411 113 1400 SCR PAN 4X6 4 801RC-110-297
298 411 008 1706 WASHER SPR 4 4 801RC-110-298
299 411 119 2104 WASHER V 4X9X0.8 4 801RC-110-299
MODEL TCM-X210
0506-002
250
200V
電源部１
200V POWER SUPPLY SECTION 1
Fig. RC-4 200V
電源４
200V Power Supply 4
399
398
397
351
393
392
391
389
394
395
396
353
354
390
