P-0185-003 - 第266页
MODEL TCM-X210 0506-002 264 制御ボックス部 CONTROL BOX SECTION Fig. RH-1 制御基板レイアウト Control P .C.B. Layout 59 See Fig.RH-2 Key No.153 59 99 98 53 54 51 55 52 56 . 57 58 . 61 59 63 99 98 65
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
263
51 630 115 3353 BOX 1 801RG-110-051
52 630 094 7458 P.C.B,MOUNT 1 UA72*001*0000 801RG-110-052
53 630 115 3360 COVER 1 801RG-110-053
54 630 127 0937 TERMINAL 10 801RG-110-054
56 630 058 8460 ACCESSORY,WIRING 1 801RG-110-056
57 630 127 0975 ACCESSORY,WIRING 1 801RG-110-057
58 630 091 1749 BRACKET,WIRING 2 801RG-110-058
59 630 089 6480 RAIL,WIRING 1 801RG-110-059
60 630 094 7441 P.C.B,MOUNT 1 UA71*001*0000 801RG-110-060
63 630 090 1078 P.C.B,MOUNT(P.C.B.) 1 UA54*001*0000 801RG-110-063
64 630 087 7786 PROGRAM ROM 1 #CPLD CZT1E2 801RG-110-064
65 630 093 0054 ACCESSORY,P.C.B 6 801RG-110-065
66 630 093 0061 ACCESSORY,P.C.B 5 801RG-110-066
70 630 104 4323 P.C.B,MOUNT 1 UA99*001*0000 801RG-110-070
71 630 013 7637 ACCESSORY,P.C.B 2 801RG-110-071
89 630 000 7749 BOLT,HEX-SCT 2 801RG-110-089
90 411 141 6705 WASHER SPR 5 2 801RG-110-090
91 630 001 0220 WASHER 2 801RG-110-091
92 411 113 7501 SCR TRS 4X10 6 801RG-110-092
93 411 113 9109 SCR TRS 5X10 4 801RG-110-093
94 411 162 1604 SCR PAN 3X20 7 801RG-110-094
95 411 119 1909 WASHER V 3X7X0.5 12 801RG-110-095
96 411 086 4408 WASHER SPR 3 7 801RG-110-096
97 411 043 5004 SCR PAN 4X8 13 801RG-110-097
98 411 008 1706 WASHER SPR 4 13 801RG-110-098
99 411 119 2104 WASHER V 4X9X0.8 13 801RG-110-099
RG-1
MODEL TCM-X210
0506-002
264

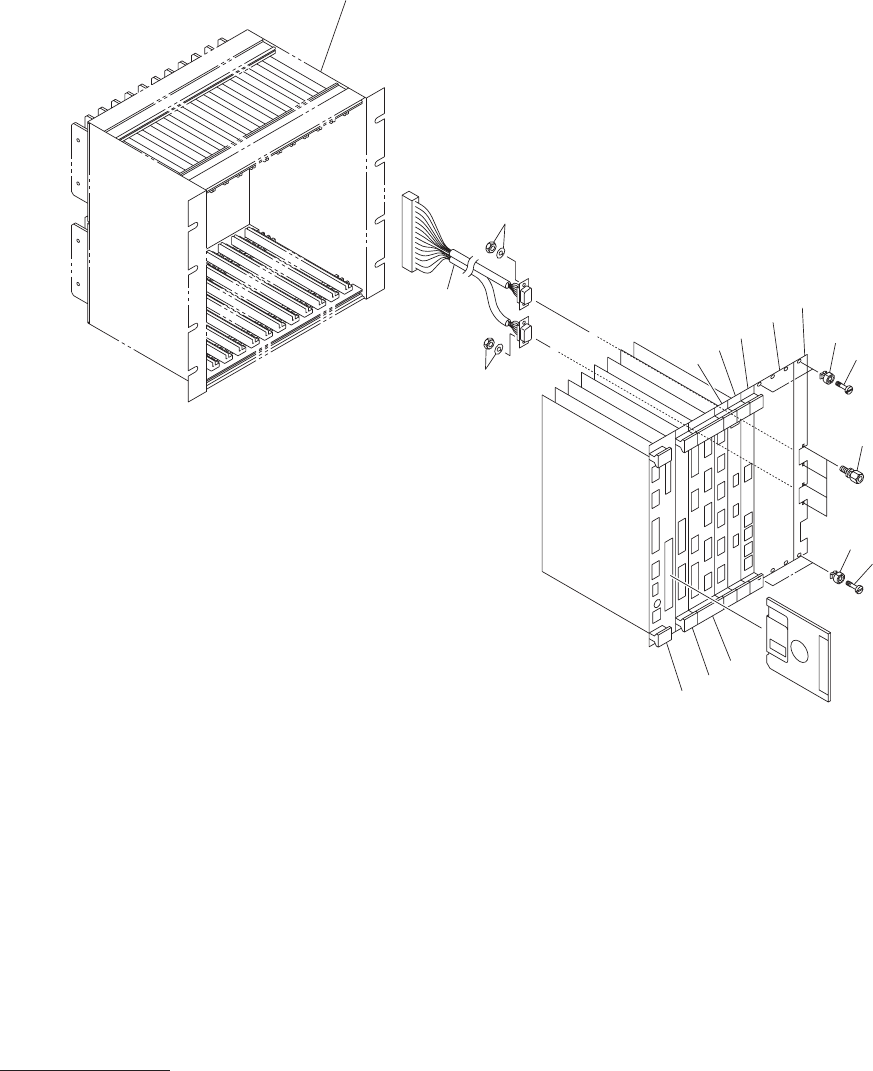

制御ボックス部
CONTROL BOX SECTION
Fig. RH-1
制御基板レイアウト
Control P.C.B. Layout
59
See Fig.RH-2
Key No.153
59
99
98
53
54
51
55
52
56
.
57
58
.
61
59
63
99
98
65
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
265
RH-1
51 630 085 3681 P.C.B,MOUNT 1 UA60*001*0000 801RH-110-051
52 630 131 3825 P.C.B,MOUNT 1 UB15*001*0000 801RH-110-052
53 630 121 1312 P.C.B,MOUNT 1 UA58*003*0000 801RH-110-053
54 630 090 1030 P.C.B,MOUNT(P.C.B.) 1 UA59*001*0000 801RH-110-054
55 630 090 1047 P.C.B,MOUNT(P.C.B.) 1 UA57*001*0000 801RH-110-055
56 630 131 3818 P.C.B,MOUNT 1 UB23*001*0000 801RH-110-056
57 630 120 8169 P.C.B,MOUNT 1 UA52*001*0001 801RH-110-057
58 410 142 1900 IC LE27C2001F-12Y1 1 801RH-110-058
59 630 029 5139 ACCESSORY,CONN 4 801RH-110-059
61 630 089 0624 COVER 1 801RH-110-061
63 630 093 8470 ASSY,CONNECTOR 1 XCN34,35-XCN33 801RH-110-063
65 630 129 1413 COVER 1 801RH-110-065
98 630 091 4795 ACCESSORY,P.C.B 6 801RH-110-098
99 630 091 4788 ACCESSORY,P.C.B 6 801RH-110-099
