MODEL TCM-X210 0306-001 270 92 94 95 96 57 54 62 89 55 56 61 54 56 58 92 サービスパネル部 SER VICE P ANEL SECTION Fig. RK-1 サービスパネル Service Panel
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
269
RH-3
251 630 085 4121 UNIT,POWER 1 G1,PAA-300F-5 801RH-110-251
252 630 085 9560 UNIT,POWER 1 G2A,PAA100F-12-RN 801RH-110-252
253 630 085 9577 UNIT,POWER 1 G2B,PAA50F-12-RN 801RH-110-253
254 630 115 3483 BOX 1 801RH-110-254
255 630 115 2301 PLATE 1 801RH-110-255
256 630 087 5270 PLATE 1 801RH-110-256
257 630 115 3476 COVER 1 801RH-110-257
290 411 034 7208 SCR FLT 3X8 2 801RH-110-290
291 411 035 2707 SCR FLT 4X8 4 801RH-110-291
292 411 114 7807 SCR PAN+SW+W 4X10 4 801RH-110-292
293 411 051 2804 SCR TRS 4X8 4 801RH-110-293
294 630 000 7626 BOLT,HEX-SCT 4 801RH-110-294
295 411 141 2905 WASHER SPR 4 4 801RH-110-295
296 411 141 4008 WASHER V 4X9X0.8 4 801RH-110-296
297 630 000 7756 BOLT,HEX-SCT 3 801RH-110-297
298 411 141 6705 WASHER SPR 5 3 801RH-110-298
299 411 141 4107 WASHER V 5X10X1 3 801RH-110-299
MODEL TCM-X210
0306-001
270
92
94
95
96
57
54
62
89
55
56
61
54
56
58
92
サービスパネル部
SERVICE PANEL
SECTION

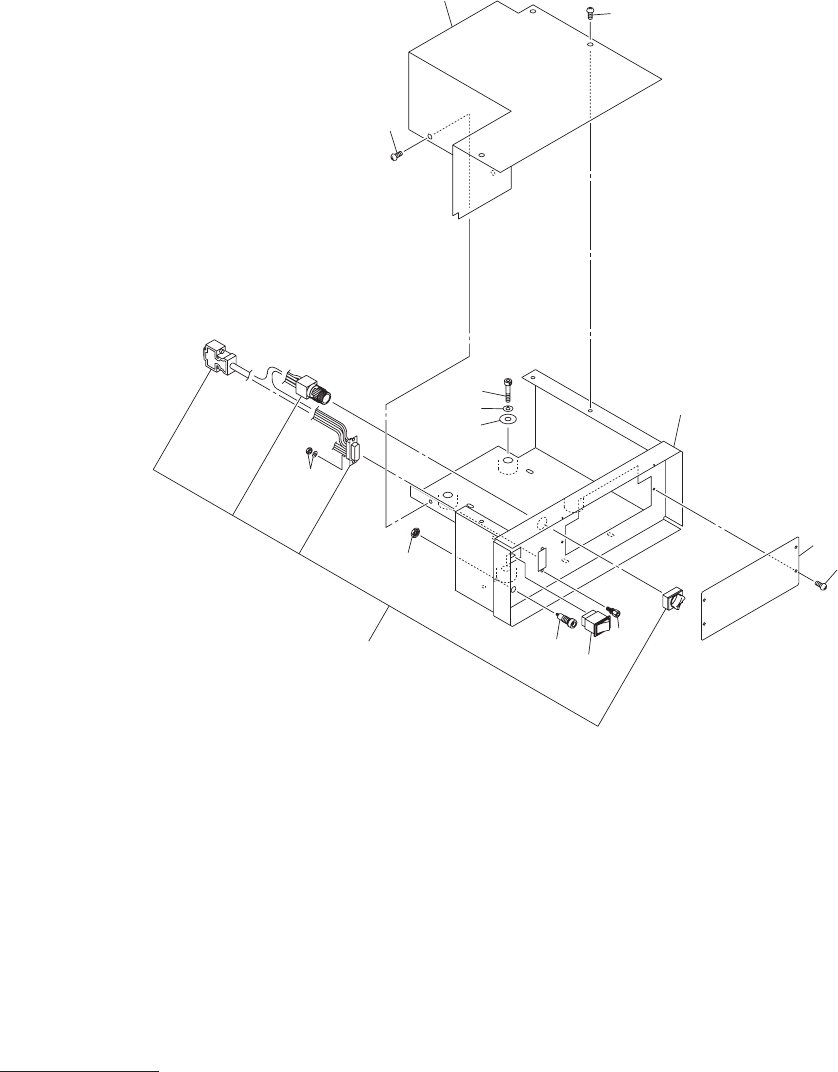

Fig. RK-1
サービスパネル
Service Panel
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
271
54 630 068 8375 ACCESSORY,CONN 2 801RK-110-054
55 630 076 0644 SWITCH,SEESAW 1 801RK-110-055
56 630 089 0556 SOCKET 1 801RK-110-056
57 630 119 8613 BRACKET 1 801RK-110-057
58 630 117 6406 COVER 1 801RK-110-058
61 630 121 8915 ASSY,CONNECTOR 1 SW4 801RK-110-061
62 630 117 6314 COVER 1 801RK-110-062
89 411 050 5004 SCR TRS 3X6 4 801RK-110-089
90 411 113 9109 SCR TRS 5X10 5 801RK-110-090
94 630 000 7909 BOLT,HEX-SCT 3 801RK-110-094
95 411 141 3001 WASHER SPR 6 3 801RK-110-095
96 630 001 0237 WASHER 3 801RK-110-096
RK-1
