P-0185-003 - 第297页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0306-001 295 SB-1 51 630 086 8722 CORD 1 XCN7- 801SB-1 10-051 52 630 087 0022 CORD (CRT 15P-15P ST2M) 1 XCN5- 801SB-1 10-052 53 630 087 0046 CORD (RS232C 9P…
MODEL TCM-X210
0306-001
294
ケーブル配線
CABLE WIRING

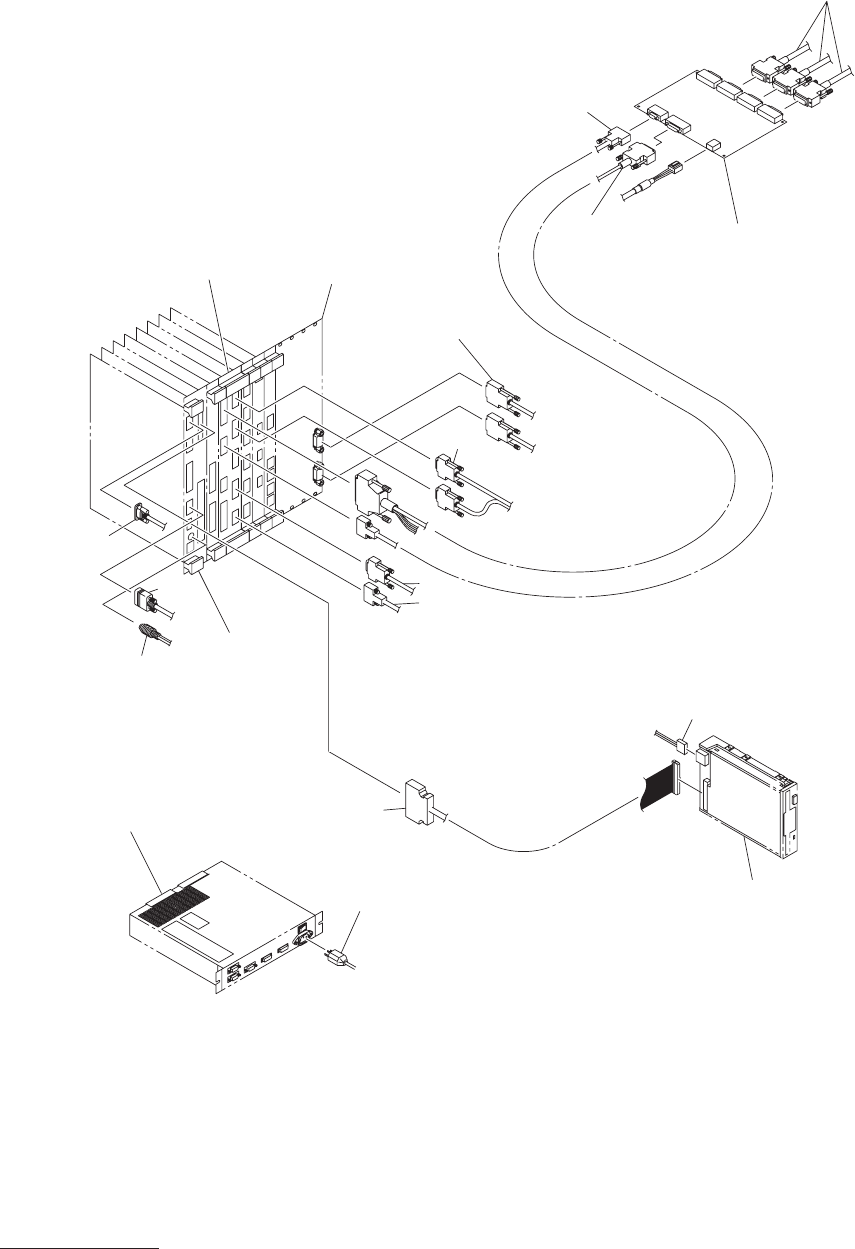

Fig. SB-1
本体部１
Main Body Section 1
55
59
60
57
56
58
See Fig.RH-1
Key No.61
See Fig.SB-1
Key No.770
See Fig.RH-1
Key No.51
REC PCB
CPU1 PCB
LIGHTING CONTROLLER
See Fig.EB-8
Key No.752
53
52
51
See Fig.RH-2
Key No.161
See Fig.RH-1
Key No.53
54
67
63
LCD-CONTROLLER
See Fig.MA-10
Key No.902-05
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
295
SB-1
51 630 086 8722 CORD 1 XCN7- 801SB-110-051
52 630 087 0022 CORD (CRT 15P-15P ST2M) 1 XCN5- 801SB-110-052
53 630 087 0046 CORD (RS232C 9P-9P ST2M) 1 XCN1- 801SB-110-053
54 630 049 2354 CORD 1 XCN3- 801SB-110-054
55 630 085 3414 CORD 1 XCN28/29- 801SB-110-055
56 630 097 0654 CORD(F-CAM) 1 XCN31- 801SB-110-056
57 630 117 1104 CORD(SIO 2M) 1 XCN26- 801SB-110-057
58 630 111 4859 CORD(MON1.5M) 1 XCN32- 801SB-110-058
59 630 117 6109 CORD(LIGHT 500MM) 3 CN1-,CN2-,CN3-, 801SB-110-059
60 630 117 1159 CORD(REC-PIO 2M) 1 XCN25- 801SB-110-060
63 630 052 5335 CORD 1 801SB-110-063
67 630 108 1861 CORD 1 801SB-110-067
MODEL TCM-X210
0306-001
296
ケーブル配線
CABLE WIRING
Fig. SB-4 F
軸ドライバ
F Axis Drivers
354
358
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
353
357
352
356
351
355
