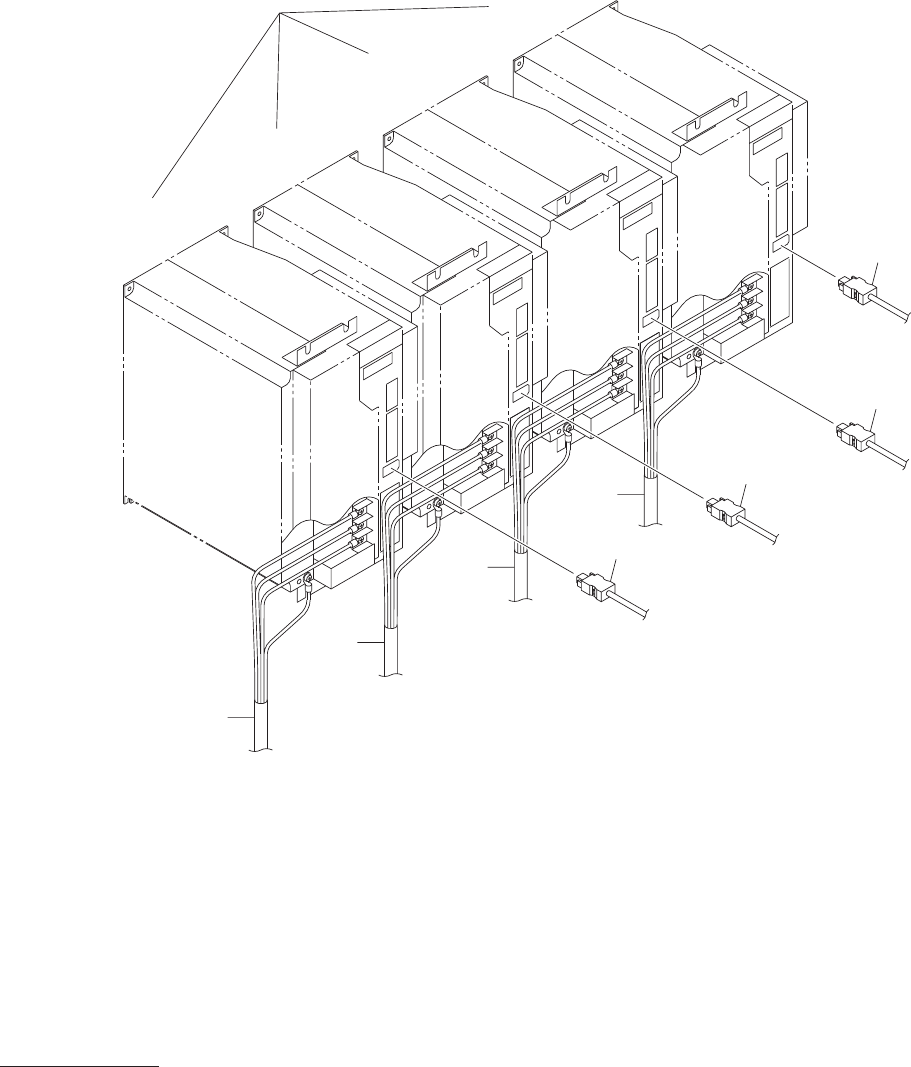

MODEL TCM-X210 0306-001 296 ケーブル配線 CABLE WIRING Fig. SB-4 F 軸ドライバ F Axis Drivers 354 358 See Fig.RL-5 Key No.453 ASMD2 (F1) ASMD3 (F2) ASMD4 (F3) ASMD5 (F4) 353 357 352 356 351 355
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
295
SB-1
51 630 086 8722 CORD 1 XCN7- 801SB-110-051
52 630 087 0022 CORD (CRT 15P-15P ST2M) 1 XCN5- 801SB-110-052
53 630 087 0046 CORD (RS232C 9P-9P ST2M) 1 XCN1- 801SB-110-053
54 630 049 2354 CORD 1 XCN3- 801SB-110-054
55 630 085 3414 CORD 1 XCN28/29- 801SB-110-055
56 630 097 0654 CORD(F-CAM) 1 XCN31- 801SB-110-056
57 630 117 1104 CORD(SIO 2M) 1 XCN26- 801SB-110-057
58 630 111 4859 CORD(MON1.5M) 1 XCN32- 801SB-110-058
59 630 117 6109 CORD(LIGHT 500MM) 3 CN1-,CN2-,CN3-, 801SB-110-059
60 630 117 1159 CORD(REC-PIO 2M) 1 XCN25- 801SB-110-060
63 630 052 5335 CORD 1 801SB-110-063
67 630 108 1861 CORD 1 801SB-110-067
MODEL TCM-X210
0306-001
296
ケーブル配線
CABLE WIRING
Fig. SB-4 F
軸ドライバ
F Axis Drivers
354
358
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
353
357
352
356
351
355
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
297
SB-4
351 630 092 4626 ASSY,CORD(X200MOT F1) 1 -XCN105 801SB-110-351
352 630 092 4633 ASSY,CORD(X200MOT F2) 1 -XCN109 801SB-110-352
353 630 092 4640 ASSY,CORD(X200MOT F3) 1 -XCN113 801SB-110-353
354 630 092 4657 ASSY,CORD(X200MOT F4) 1 -XCN117 801SB-110-354
355 630 104 9595 CORD (LINEAR 3.9M) 1 XCN106-XCN107 801SB-110-355
356 630 104 9601 CORD (LINEAR 3.4M) 1 XCN110-XCN111 801SB-110-356
357 630 104 9618 CORD (LINEAR 4.1M) 1 XCN114-XCN115 801SB-110-357
358 630 104 9601 CORD (LINEAR 3.4M) 1 XCN118-XCN119 801SB-110-358
