Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0506-002 95 H-1 1 630 1 16 741 1 BASE(CONVEYOR R) 1 801H--1 10-001 2 630 1 16 6261 PLA TE,LOCA TE 1 801H--1 10-002 3 41 1 141 4107 W ASHER V 5X10X1 8 801H--…
MODEL TCM-X210
0306-001
94
R
コンベア部

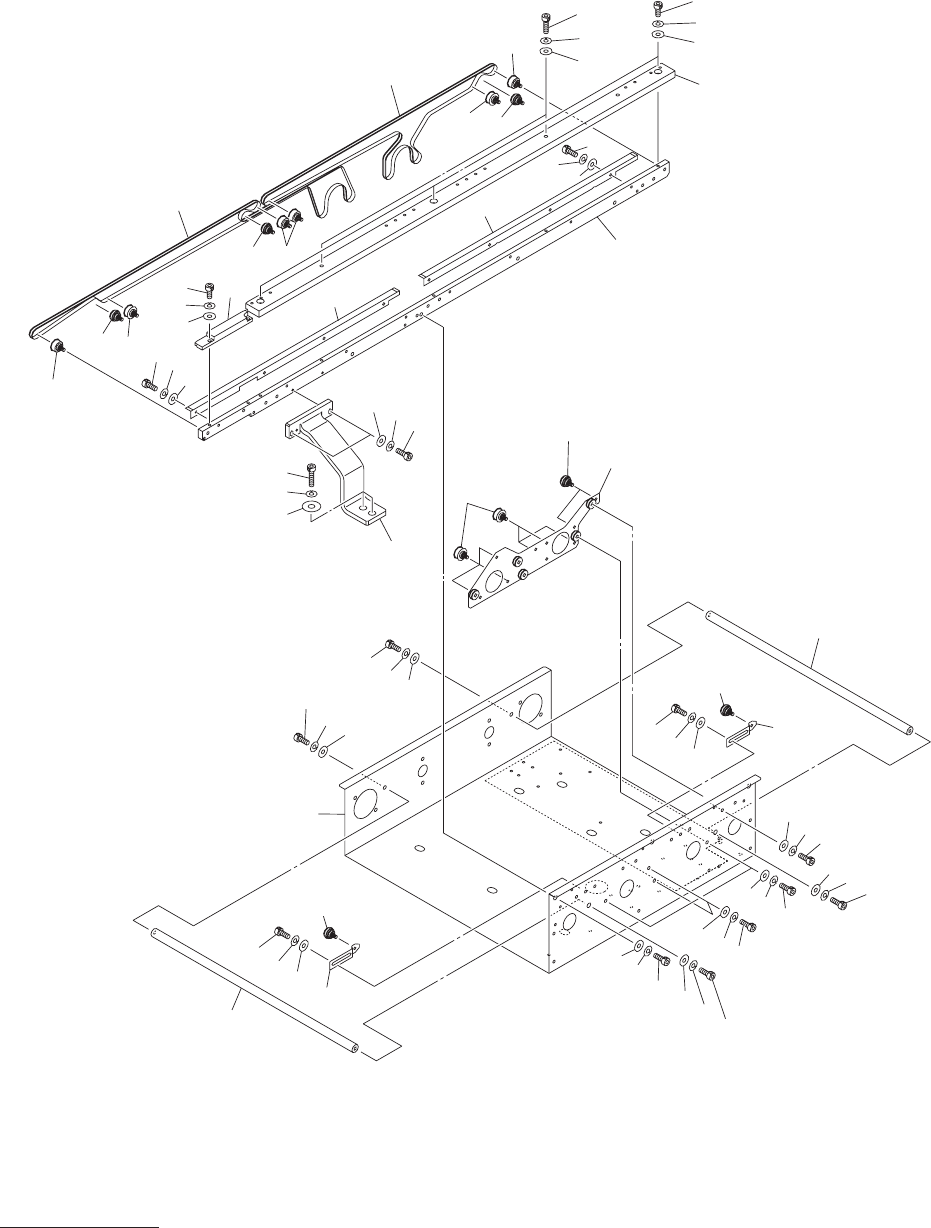

R CONVEYOR SECTION
Fig. H-1
固定側コンベアシュート
Fixed Side Conveyor Chute
5
4
3
26
23
5
4
3
26
23
39
44
43
42
38
40
41
27
33
31
30
25
20
21
46
45
35
26
17
31
33
30
29
6
35
49
48
47
8
9
22
3
4
5
3
4
5
8
9
22
37
8
9
22
37
2
26
22
9
8
1
22
9
8
17
26
18
17
26
35
21
28
31
32
30
46
45
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
95
H-1
1 630 116 7411 BASE(CONVEYOR R) 1 801H--110-001
2 630 116 6261 PLATE,LOCATE 1 801H--110-002
3 411 141 4107 WASHER V 5X10X1 8 801H--110-003
4 411 141 6705 WASHER SPR 5 8 801H--110-004
5 630 000 7763 BOLT,HEX-SCT 8 801H--110-005
6 630 118 5422 PLATE(MAE) 1 801H--110-006
8 411 141 4305 WASHER V 6X12.5X1.6 7 801H--110-008
9 411 141 3001 WASHER SPR 6 7 801H--110-009
17 630 092 6224 PULLEY,FLAT 4 801H--110-017
18 630 124 0848 GUIDE(MAE 2) 1 801H--110-018
20 630 118 5361 CHUTE(R MAE) 1 801H--110-020
21 630 000 7626 BOLT,HEX-SCT 8 801H--110-021
22 630 000 7886 BOLT,HEX-SCT 7 801H--110-022
23 630 116 5141 PLATE 2 801H--110-023
25 630 118 5378 CHUTE(L MAE) 1 801H--110-025
26 630 092 6231 PULLEY,FLAT 7 801H--110-026
27 630 120 0446 BELT,FLAT 1 801H--110-027
28 630 120 0392 BELT,FLAT 1 801H--110-028
29 630 124 0619 GUIDE(MAE1) 1 801H--110-029
30 411 141 4008 WASHER V 4X9X0.8 7 801H--110-030
31 411 141 2905 WASHER SPR 4 7 801H--110-031
32 630 000 7664 BOLT,HEX-SCT 2 801H--110-032
33 630 000 7633 BOLT,HEX-SCT 5 801H--110-033
35 630 092 6217 PULLEY,FLAT 8 801H--110-035
37 630 116 4922 STAY 2 801H--110-037
38 630 118 1448 BRACKET 1 801H--110-038
39 411 141 4008 WASHER V 4X9X0.8 2 801H--110-039
40 411 141 2905 WASHER SPR 4 2 801H--110-040
41 630 000 7657 BOLT,HEX-SCT 2 801H--110-041
42 630 001 0220 WASHER 2 801H--110-042
43 411 141 6705 WASHER SPR 5 2 801H--110-043
44 630 000 7787 BOLT,HEX-SCT 2 801H--110-044
45 411 141 5906 WASHER F 4X8X0.8 8 801H--110-045
46 411 141 2905 WASHER SPR 4 8 801H--110-046
47 630 000 7640 BOLT,HEX-SCT 1 801H--110-047
48 411 141 4008 WASHER V 4X9X0.8 1 801H--110-048
49 411 141 2905 WASHER SPR 4 1 801H--110-049
MODEL TCM-X210
0306-001
96
R
コンベア部
R CONVEYOR SECTION
Fig. H-2
可動側コンベアシュート
Movable Side Conveyor Chute
132
124
105
106
107
132
124
105
106
107
117
11
8
11
9
116
147
147
D
121
130
128
126
132
123
126
135
132
133
134
11
8
11
7
127
148
149
150
103
11
4
11
2
111
107
106
105
122
125
11
8
117
11
2
135
11
7
11
6
11
8
11
9
146
140
139
138
145
143
A
A
C
B
B
C
D
144
143
144
140
139
138
145
146
140
139
138
141
142
137
11
0
109
108
135
115
101
See Fig.H-1
Key No.2
See Fig.H-1
Key No.1
101
11
5
11
5
11
3
104
113
135
132
126
123
102
126
136
126
136
132
