P-0185-003 - 第99页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0506-002 97 H-2 101 630 001 1548 BEARING,RADIAL 2 6200ZZNR 801H--1 10-101 102 630 1 18 5439 PLA TE(OKU) 1 801H--1 10-102 103 630 097 1750 PLA TE,LOCA TE(R) …
MODEL TCM-X210
0306-001
96
R
コンベア部
R CONVEYOR SECTION

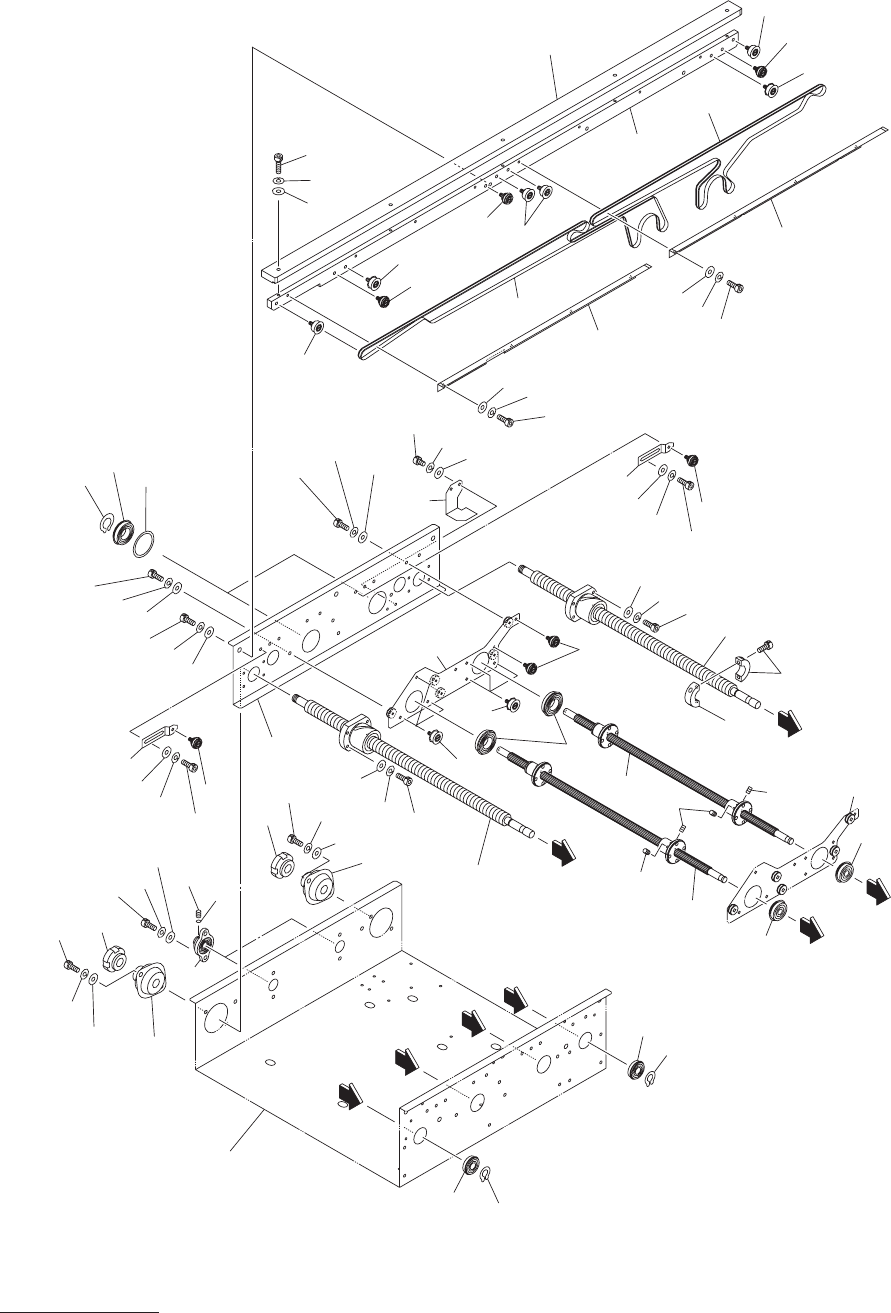

Fig. H-2
可動側コンベアシュート
Movable Side Conveyor Chute
132
124
105
106
107
132
124
105
106
107
117
11
8
11
9
116
147
147
D
121
130
128
126
132
123
126
135
132
133
134
11
8
11
7
127
148
149
150
103
11
4
11
2
111
107
106
105
122
125
11
8
117
11
2
135
11
7
11
6
11
8
11
9
146
140
139
138
145
143
A
A
C
B
B
C
D
144
143
144
140
139
138
145
146
140
139
138
141
142
137
11
0
109
108
135
115
101
See Fig.H-1
Key No.2
See Fig.H-1
Key No.1
101
11
5
11
5
11
3
104
113
135
132
126
123
102
126
136
126
136
132
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
97
H-2
101 630 001 1548 BEARING,RADIAL 2 6200ZZNR 801H--110-101
102 630 118 5439 PLATE(OKU) 1 801H--110-102
103 630 097 1750 PLATE,LOCATE(R) 1 801H--110-103
104 630 116 6278 PLATE,LOCATE 1 801H--110-104
105 411 141 4107 WASHER V 5X10X1 8 801H--110-105
106 411 141 6705 WASHER SPR 5 8 801H--110-106
107 630 000 7763 BOLT,HEX-SCT 8 801H--110-107
108 411 141 4305 WASHER V 6X12.5X1.6 3 801H--110-108
109 411 141 3001 WASHER SPR 6 3 801H--110-109
110 630 000 7886 BOLT,HEX-SCT 3 801H--110-110
111 630 030 5913 COLLAR 2 801H--110-111
112 630 001 1531 BEARING,RADIAL 4 6904ZZNR 801H--110-112
113 630 118 2551 GUIDE,LINEAR 2 801H--110-113
114 411 000 7805 RING C 20 2 801H--110-114
115 630 000 8883 SET SCREW 4 801H--110-115
116 630 120 0378 BALL SCREW 2 801H--110-116
117 411 141 4008 WASHER V 4X9X0.8 15 801H--110-117
118 411 141 2905 WASHER SPR 4 15 801H--110-118
119 630 000 7657 BOLT,HEX-SCT 8 801H--110-119
120 411 141 5906 WASHER F 4X8X0.8 8 801H--110-120
121 630 124 0626 GUIDE(OKU) 1 801H--110-121
122 630 116 7305 PLATE 1 801H--110-122
123 630 000 7626 BOLT,HEX-SCT 8 801H--110-123
124 630 116 5141 PLATE 2 801H--110-124
125 630 000 7602 BOLT,HEX-SCT 2 801H--110-125
126 630 092 6224 PULLEY,FLAT 4 801H--110-126
127 630 120 0446 BELT,FLAT 1 801H--110-127
128 630 120 0392 BELT,FLAT 1 801H--110-128
130 630 118 5385 CHUTE(R OKU) 1 801H--110-130
132 630 092 6231 PULLEY,FLAT 7 801H--110-132
133 630 118 5392 CHUTE(L OKU) 1 801H--110-133
134 630 000 7664 BOLT,HEX-SCT 5 801H--110-134
135 630 092 6217 PULLEY,FLAT 8 801H--110-135
136 411 141 2905 WASHER SPR 4 8 801H--110-136
137 630 008 5303 BEARING,UNIT 2 UFL000 801H--110-137
138 411 141 4305 WASHER V 6X12.5X1.6 8 801H--110-138
139 411 141 3001 WASHER SPR 6 8 801H--110-139
140 630 000 7879 BOLT,HEX-SCT 8 801H--110-140
141 630 000 8920 SET SCREW 2 801H--110-141
142 630 053 5419 COLLAR 2 801H--110-142
143 630 001 1432 BEARING,RADIAL 2 6001ZZNR 801H--110-143
144 411 000 7300 RING C 12 2 801H--110-144
145 630 031 0566 BEARING,UNIT 2 BPFL1 801H--110-145
146 630 031 0573 NUT 2 801H--110-146
147 630 035 6618 MECH PARTS (SET COLLARS) 1 801H--110-147
148 630 000 7640 BOLT,HEX-SCT 1 801H--110-148
149 411 141 4008 WASHER V 4X9X0.8 1 801H--110-149
150 411 141 2905 WASHER SPR 4 1 801H--110-150
MODEL TCM-X210
0306-001
98
R
コンベア部
R CONVEYOR SECTION

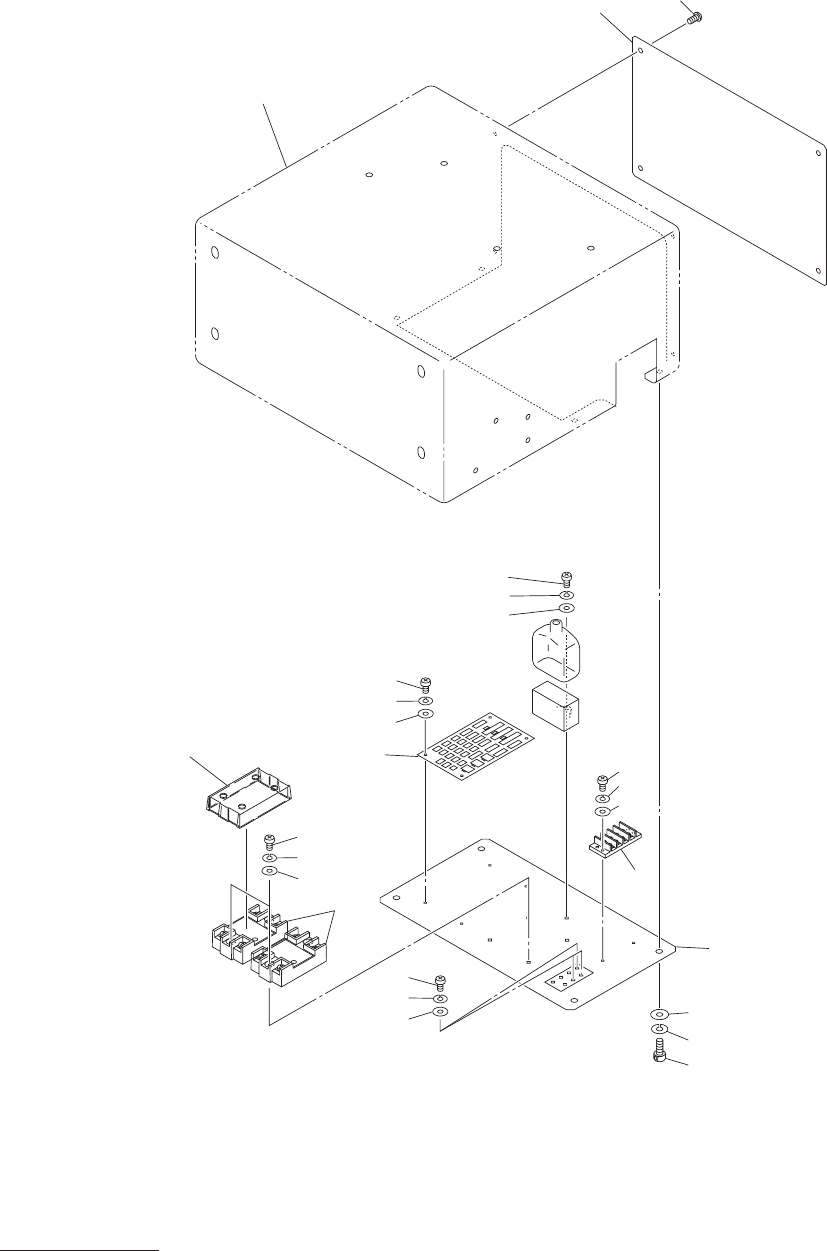

Fig. H-3
電装ボックス
R Electrical Box R
259
260
258
See Fig.G-4
Key No.316
202
201
281
270
282
283
284
285
286
287
252
271
261
272
273
251
258
259
260
276
275
274
