15 Description The component bar code scanner enables a speedy, reliable set-up and refill check. To this end the bar codes of the tr acks (on the track scale on the feeder table) and the components allocated to them (ba…

Danger

Some local safety requirements

dictate that all feeder locations

must be equipped with feeders.

If the feeder set-up does not fill all

feeder locations, guards (dummy

feeders) may be used in place of

the modules.

Component Supply:

Dummy Feeder

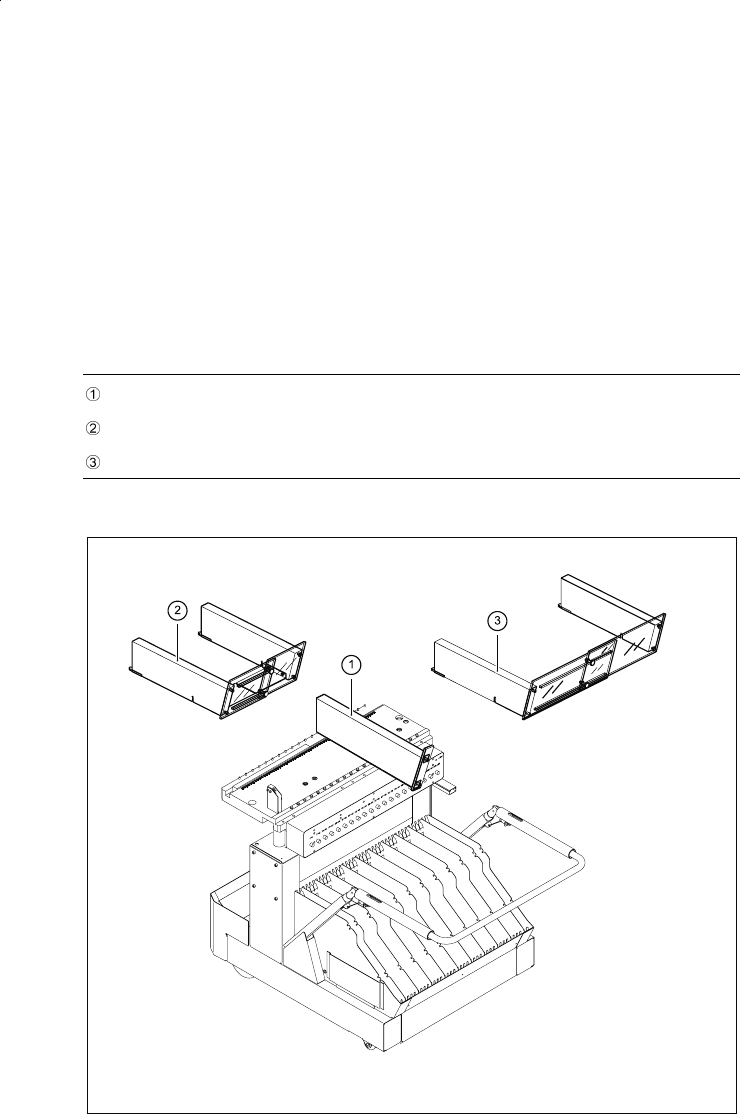

The following dummy feeder variants can be used:

Item no. 00116961-01

Item no. 00116962-01

Item no. 00116963-01

SIPLACE guard for 1 location

SIPLACE guard for 6 - 10 locations

SIPLACE guard for 11 - 20 locations

Various Dummy Feeders

Description

The component bar code scanner

enables a speedy, reliable set-up

and refill check. To this end the bar

codes of the tracks (on the track

scale on the feeder table) and the

components allocated to them (bar

code labels on tapes, Bulk Cases,

etc.) are read in with a hand scan-

ner. An audible and optical signal

acknowledges a successful read-

ing operation. If a label is dam-

aged, the bar code can also be en-

tered at the keyboard.

The allocation of the components

to their respective track is de-

scribed in the set-up data. If the

data received from the bar code

scanner does not correspond with

the set-up data, an error message

is displayed.

If the set-up check is switched on,

it becomes a mandatory step in

the set-up process. If it is switched

off, the set-up check is optional.

Component Supply:

Component Bar Code Scanner for Set-Up and Refill Check

(Option)

Component

Control

Set-Up File

Track Bar Code

Scanner

Technical Data

Connection Station computer

Data entry Bar code scanner or keyboard

Number of characters max. 40

Restrictions Bar codes beginning with number 1 or 2

or with less than 5 characters

Number of bar codes max. 6 per component

Number of filters to blank out

data max. 1 per bar code

Preset types of codes Code 39 (standard or full ASCII),

Code 2 from 5 interleaved and normal,

Code 128, UPC/EAN/JAN codes

(more upon request)

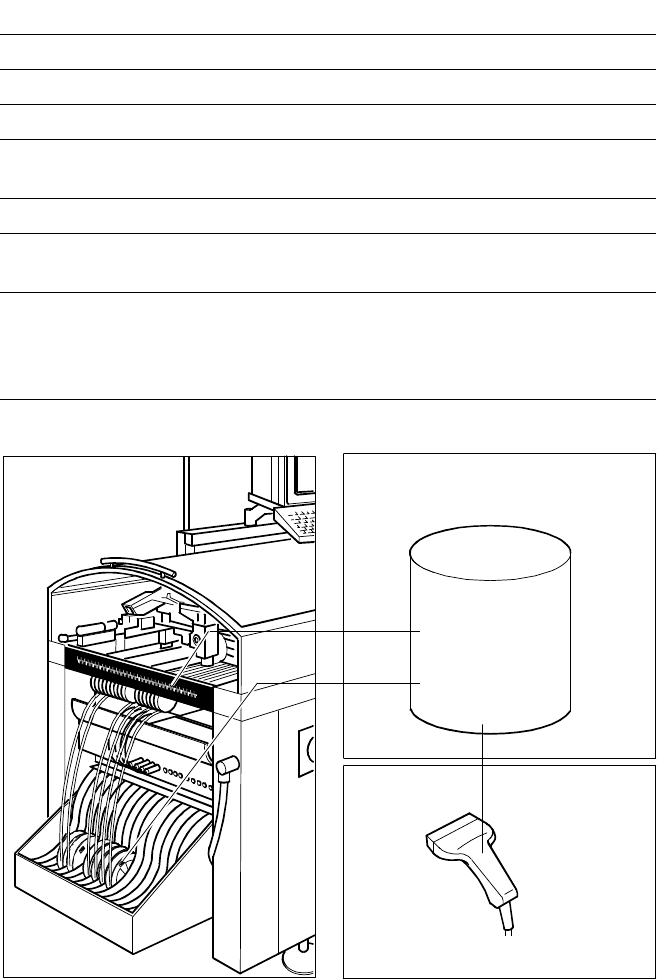

The scanner checks the corresponding track and the components.

Component

Bar Code

Description

When a batch change occurs, the

changeover tables can be set up

and checked at the external

SIPLACE set-up station quickly and

without machine idle time. The

costs for production of a vast

number of variants are greatly re-

duced. When a bar code check is

conducted outside the machine,

10 minutes of machine idle time

are eliminated per set-up change.

Access to all current set-up data

from as many as 4 lines exists via

a link to a Local Area Network

(LAN) for the line computer.

Two component changeover ta-

bles belong to the standard

equipment of an SIPLACE

S-23 HM. Additional component

changeover tables are required for

optimal use of the set-up station.

Component Supply:

External SIPLACE Set-Up Station (Option)

Example for SIPLACE Set-Up Station

PC for External

Set-Up

LAN Scanner

Serial Interface

Line Computer

Line

LAN

Accessories

Operating system Windows NT 4.0

Set-up check Using bar code scanner

Time required:

Component table change 2 min / table side

Tape Reel

with

Bar Code

Changeover

Table

Component Changeover Tables
