37 Component Forms Dimensions in µ µ µ µ m Nozzle Type on Component GF- No Designation Length Width Height 12-Noz zle Revolver Hea d 570 DIL4 4800 9700 4800 919 571 DIL6 8600 10000 4400 917 572 DIL8 9300 10000 4400 917 5…

100%1 / 44
36

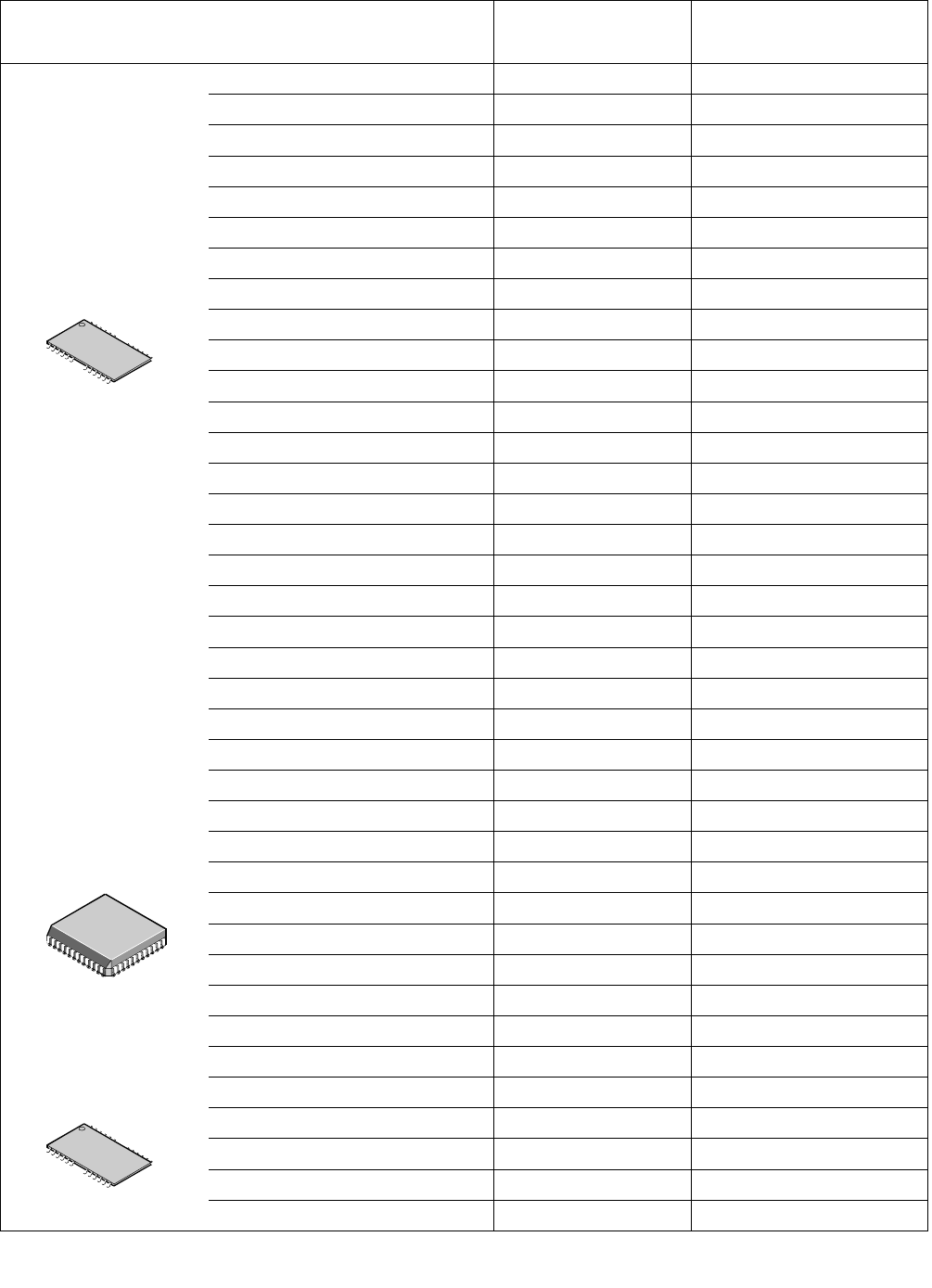

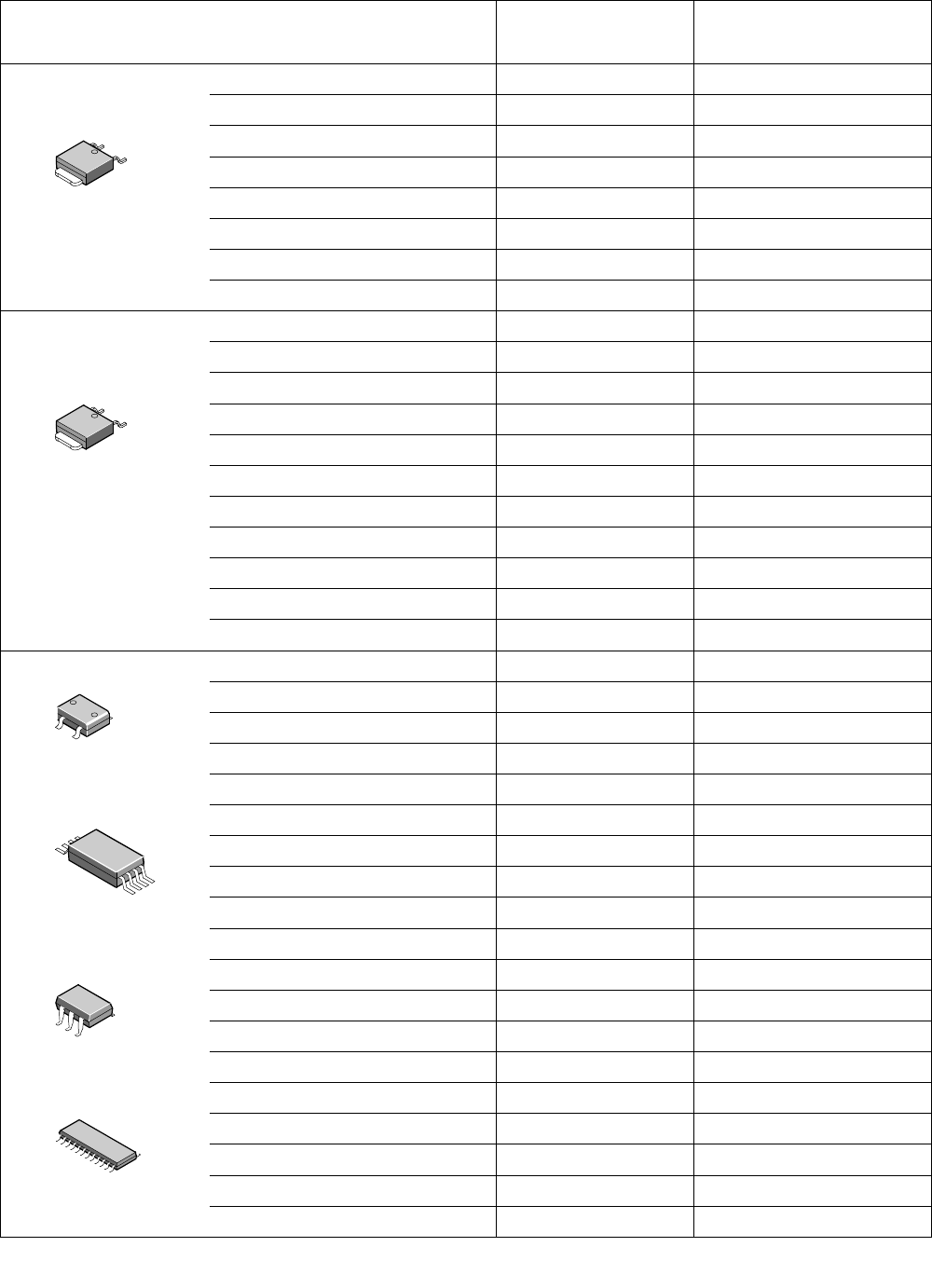

Component Forms
Dimensions in µ
µµ
µm
Nozzle Type on
Component GF-
No
Designation
Length Width Height 12-Nozzle Revolver Head
Transistors 400 SOT23 2900 2300 1100 904 / 914
401 SOT_89 4500 4100 1500 915
402 SOT_143 3000 2500 1100 904 / 914
403 SOT_223 6500 7000 1800 915
404 DPACK_TO252 6500 10000 2700 917
405 TO120 similar 5100 5100 1600 904 / 914
406 D2PACK_TO263_AB 10000 15200 4400 917
407 D2PACK_TO263_AA 10000 14200 4400 920
Power Transistors 410 SOD123 3700 1550 1400 913
411 SOD323 2500 1250 1200 904 / 914
412 SC90 Ultra-Mini 1600 1600 700 901 / 911
413 SOT323 2000 2100 1100 904 / 914
414 SOT343 Mini 2000 2100 1100 904 / 914
416 SOT363 2000 2100 1100 904 / 914
417 SOT25 2900 2800 1200 913
418 SOT26 2900 2800 1200 913
420 DIODE_DO214_AC 5080 2600 2290 915
421 DIODE_DO214_AA 5400 3600 2160 915
422 Diode DO214_AB 8000 5900 2160 917
Semiconductors 501 SO6 3800 6000 1450 913
502 SO8 4900 6000 1550 915
504 SO14 8650 6000 1550 915
505 SO16 10000 6000 1600 915 / 917
506 SO8L 8000 10300 2500 917 / 920
508 SO14L 9100 10320 2500 917 / 920
509 SO16L 10280 10300 2500 917 / 920
510 SO18L 11550 10300 2500 917 / 920
511 SO20L 12800 10325 2500 917 / 920
512 SO24L 15400 10325 2500 920
513 SO28L 18000 10300 2450 920
515 SOW24 15650 12100 2300 917 / 920
516 SOW24_high 15650 12100 2800 917 / 920
517 SOW28 18100 12100 2300 920
518 SOW28_high 18100 12100 2800 920
519 SOY28 18000 14100 2790 920
523 SSOP48_0.025 15900 10300 2700 920
524 SOX32 21100 13800 2500 920
541 TSSOP20 6500 6400 1400 917
37
Component Forms
Dimensions in µ
µµ
µm
Nozzle Type on
Component GF-
No
Designation
Length Width Height 12-Nozzle Revolver Head
570 DIL4 4800 9700 4800 919
571 DIL6 8600 10000 4400 917
572 DIL8 9300 10000 4400 917
582 SO8_high_OK8 4900 6000 3200 915
600 TSOP24_20 16000 6000 1200 917
601 TSOP I 24 20000 6000 1000 917
602 TSOP32 20000 8000 1000 920
603 TSOP40 20000 10100 1200 920
604 TSOP I 48 20000 12000 1200 920
605 TSOP24/28 18600 11800 1500 920
606 TSOP28/32 20000 8000 1200 920
650 SSOP8 3000 7800 1800 915
651 SSOP14 6200 7800 1800 915 / 917
652 SSOP16 6200 7800 1800 915 / 917
653 SSOP18 7200 7800 1800 917
654 SSOP20 7200 7800 1800 917
655 SSOP22 9200 7800 1800 917
656 SSOP24 9200 7800 1800 917
657 SSOP28 10200 7800 1800 917
658 SSOP30 10200 7800 1800 917
659 SSOP34 18100 10250 2600 920
660 SSOP36 15600 10350 2600 920
661 SSOP38 12600 7800 1800 917
663 SSOP44 17900 10300 2515 920
664 SSOP48 15880 10310 2590 917 / 920
665 SSOP56 18400 10350 2600 920
700 PLCC20 9850 9850 4350 917 / 920
701 PLCC28 12350 12350 4350 917 / 920
702 PLCC44 17550 17550 4350 920
708 PLCC18R /11.75x8.15 11750 8150 3450 917 / 920
709 PLCC18R /13.45x8.25 13450 8250 3450 917 / 920
710 PLCC22R 13450 8250 3450 917 / 920
711 PLCC28R 15050 9950 3450 917 / 920
712 PLCC32R 15050 12450 3400 917 / 920
800 SOJ24 /b8.6 15880 8660 3500 920
801 SOJ26 /b8.6 17150 8660 3500 920
802 SOJ28 /b8.66 18410 8660 3500 920
803 SOJ28 /b9.8 18420 9780 3500 920
38
Component Forms
Dimensions in µ
µµ
µm
Nozzle Type on
Component GF-
No
Designation
Length Width Height 12-Nozzle Revolver Head
804 SOJ28 /b18.42 18420 11180 3500 920
807 SOLJ16 10300 8700 3200 917 / 920
810 SOJ26_20 /b8.5 17150 8510 3500 920
811 SOJ26_20 /b9.8 17150 9780 3500 920
900 QFP44_1.0 18600 18600 2600 920
