Page 1 of 3
Conexis
®
Coating Applicators
Providing a Variety of Solutions for Conformal Coating Applications
The Conexis® conformal coating platform provides
flexibility and modularity by leveraging a wide range
of applicators to meet coating requirements for
coverage and quality. Available applicators apply
material in a needle bead, atomized spray and curtain
coat pattern.
The system can be configured with single, dual, or
triple applicators in various combinations.
Applicators an be set up with capabilities for tilt
and rotate and dual simultaneous coating for
increased accessibility and productivity.
Features and Benefits
DD-5130 Needle valve
- Luer lock adapter for low-to-high
material viscosities
- High flow rate for high cycle time
DD-5140 Spray valve
- Adjustable spray cap provides the
ability to adjust atomizing air for
various viscosities
- Round beam for wide range of fluid
viscosities
- Uniquely designed with guided needle
inside the valve
DD-5150 Curtain valve
- Best performance with optional rotate
- Non-atomized, uniform film pattern

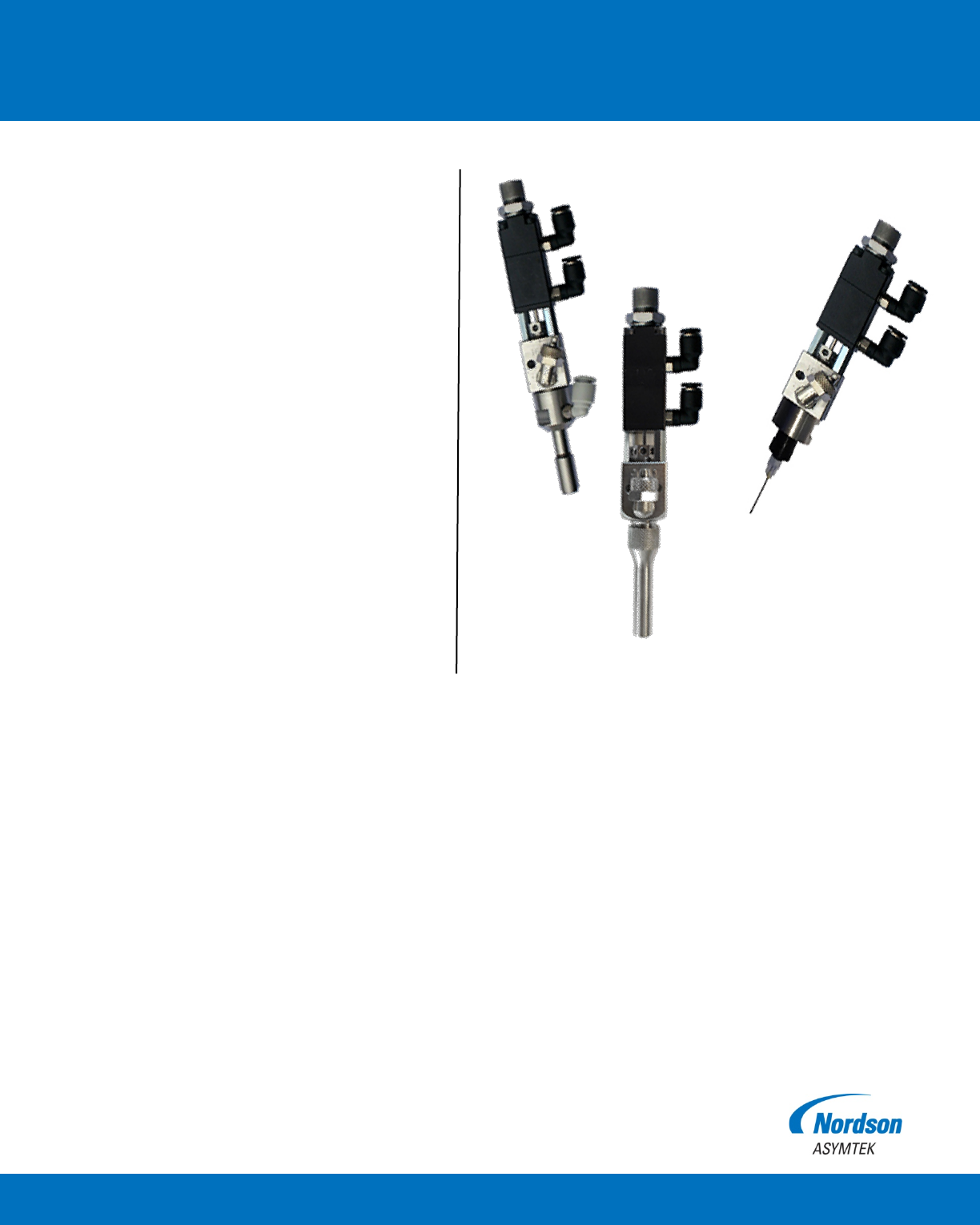

Needle
DD-5130
Spray
DD-5140
Curtain
DD-5150
Page 2 of 3

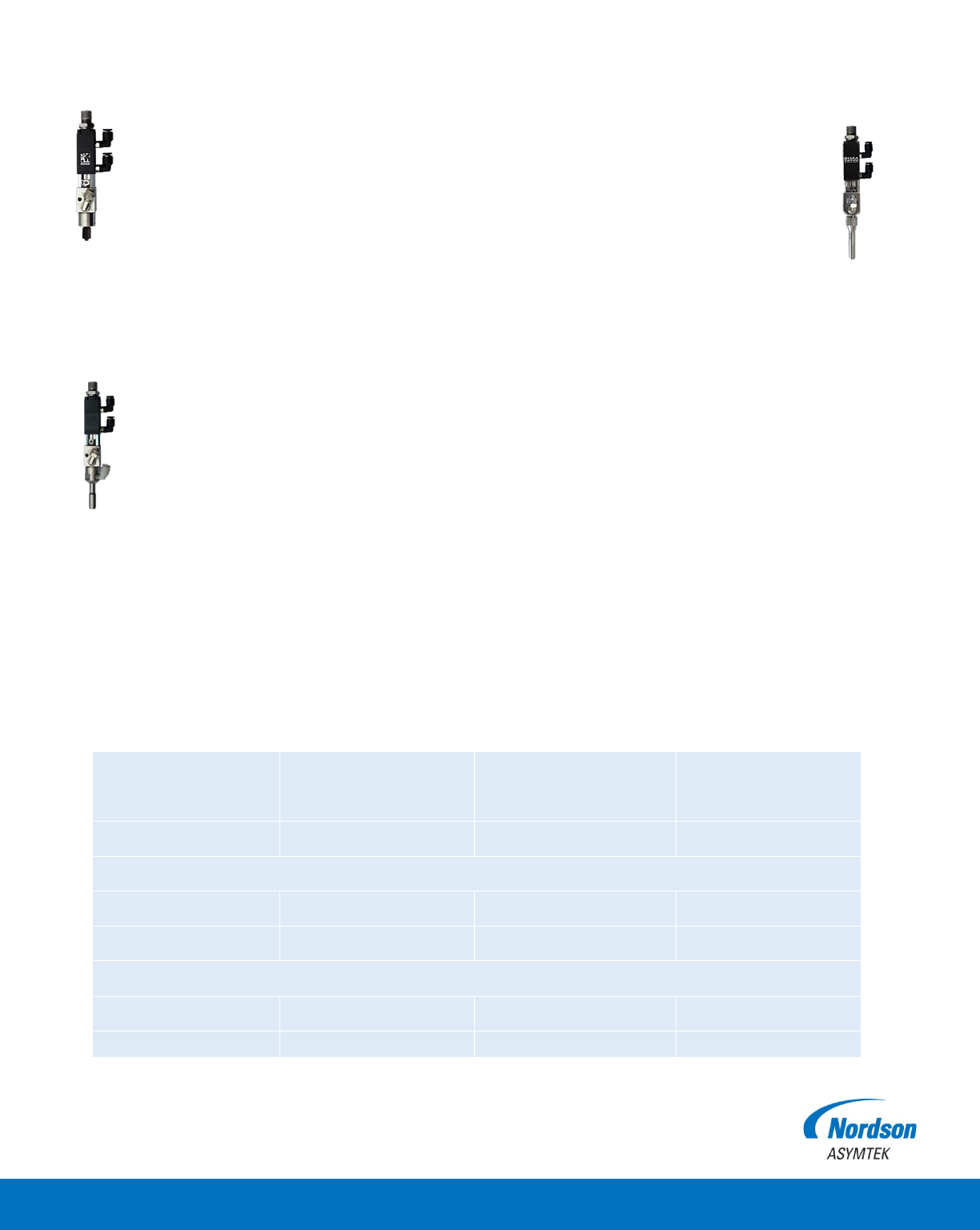

DD-5130 Needle Valve
The DD-5130 series is a stainless steel high
pressure front closing needle valve. One of the
unique features is the high flow rate at high
viscosity materials and the fast cycle time. The
volume can be controlled over the time the valve
opened and how far it is opened. An internal
micrometer adjust allows you exactly to set the
opening of the valve. Max. viscosity 1,000,000 cps.
Shot size has a minimum shot size from 0.003 ml,
low volume.
DD-5140 Narrow Beam Spray Valve
The round spray valve is designed for selective
conformal coating but is also used for several other
applications. Once the valve is set at a certain width
it will apply the material in a path with defined
sharp edges making it possible to apply coating
exactly there where it is needed while at the same
time restricted areas are kept free of coating
material. Max. viscosity 5000 cps. Spray diameter: 5
to 15 mm.
DD-5150 Airless Curtain Valve
This non-atomized coating curtain valve
provides automated, selective application of
conformal coating materials. Using this dispensing
technology, the curtain valve applies conformal
coating material in a controlled, uniform film rather
than atomized spray. Material is directed under low
pressure through the special designed and pre-
centered ceramic nozzle. Material is applied to the
circuit board prior of atomization. Viscosities of
less than 100 centipoise. Achievable coating
thicknesses range from 0.013mm to 0.2mm for
solvent-based material and 0.1mm to 0.2mm for
100% solids materials.
Conexis
®
Coating Applicator Specifications
DD-5130
Needle
DD-5140
Spray
DD-5150
Curtain
Viscosity range
1 – 100,000cps
1 – 25,000cps
1 – 125cps
Pass width
Min (mm)
N/A
8
5
Max (mm)
N/A
45
20
Dry thickness range
Min (µm)
30
10
25
Max (µm)
200
100
200
Page 3 of 3
Featured Options
- Four Position Tilt and Rotate
- Motorized Rotate with Pneumatic Tilt
- Dual-Simultaneous
- One, two, or three applicator configurations
Fifth-Axis Tilt – Additional Benefits
Tilt and rotate capabilities provide access hard-to-reach
areas of the product that may not be achievable with
the standard downward approach (0 degrees).
Programmers can easily set and modify the rotate and
tilt parameters for an applicator within Easy Coat
®
software.
• Ideal for coating vertical surfaces and underneath
components
• The applicator can tilt at 30 degrees, and the
mechanism can be rotated in 4 positions – in 90-degree
increments (0, 90, 180, and 270) to direct the pattern to
the left, right, front or back to coat all four sides of a
component
• The motorized rotate allows for rotation in 1-degree
increments for precise contouring around components.

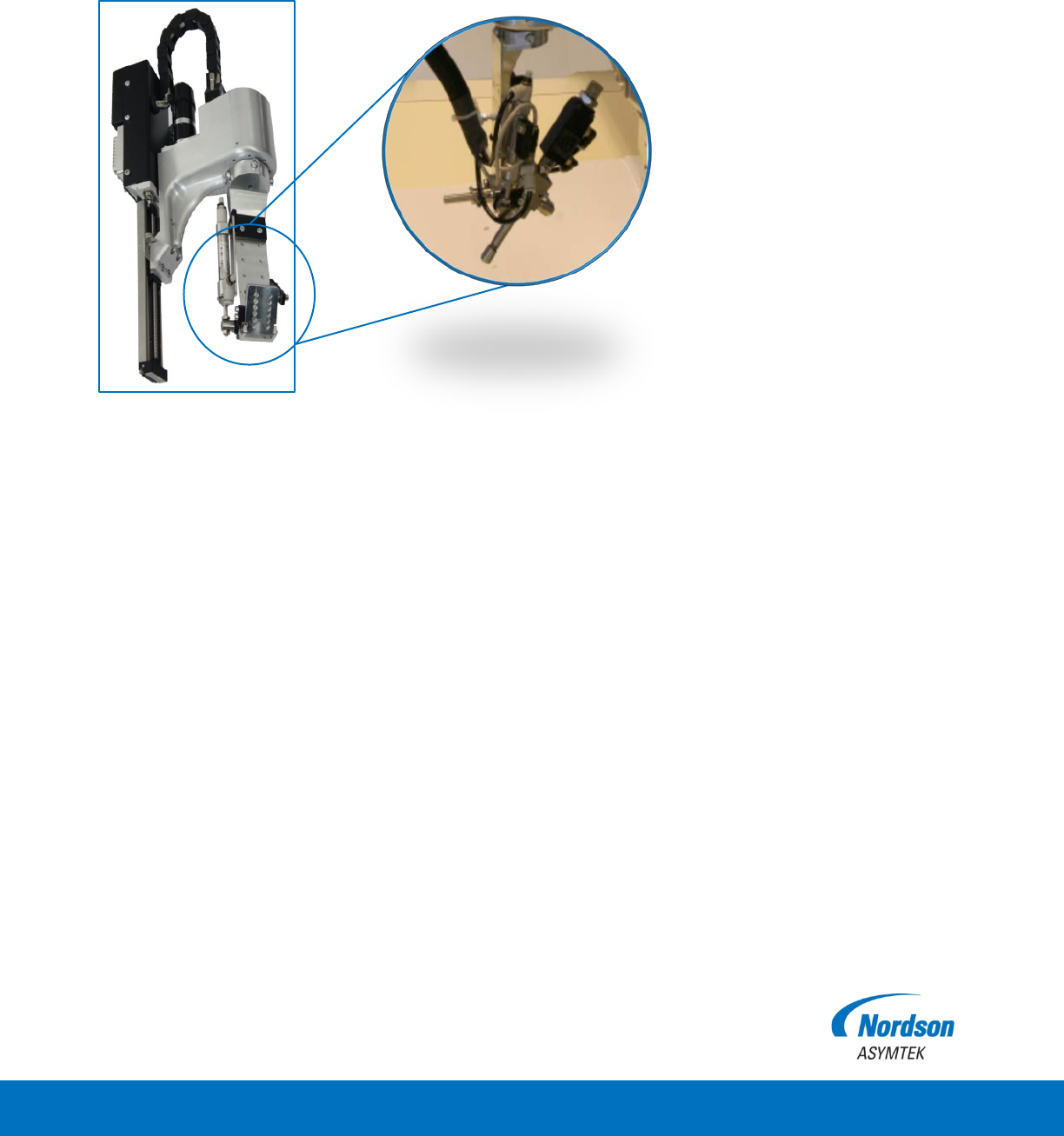

SC-280 Film Coater with
optional Fifth-Axis Tilt
Motorized Rotate with Pneumatic Tilt
