SIPLACE Software Guide Version 408.xx 2 Introduction and basic terms Issue 03/06 EN 2.2 Overview 13 2.2.1 Overview of the SIPLACE CS and S23 2 Fig. 2.2 - 2 Overview of the SIPLACE CS and S23 Key to Fig. 2.2 - 2 (1) Colle…
2 Introduction and basic terms SIPLACE Software Guide Version 408.xx
2.2 Overview Issue 03/06 EN
12
2.2 Overview
2

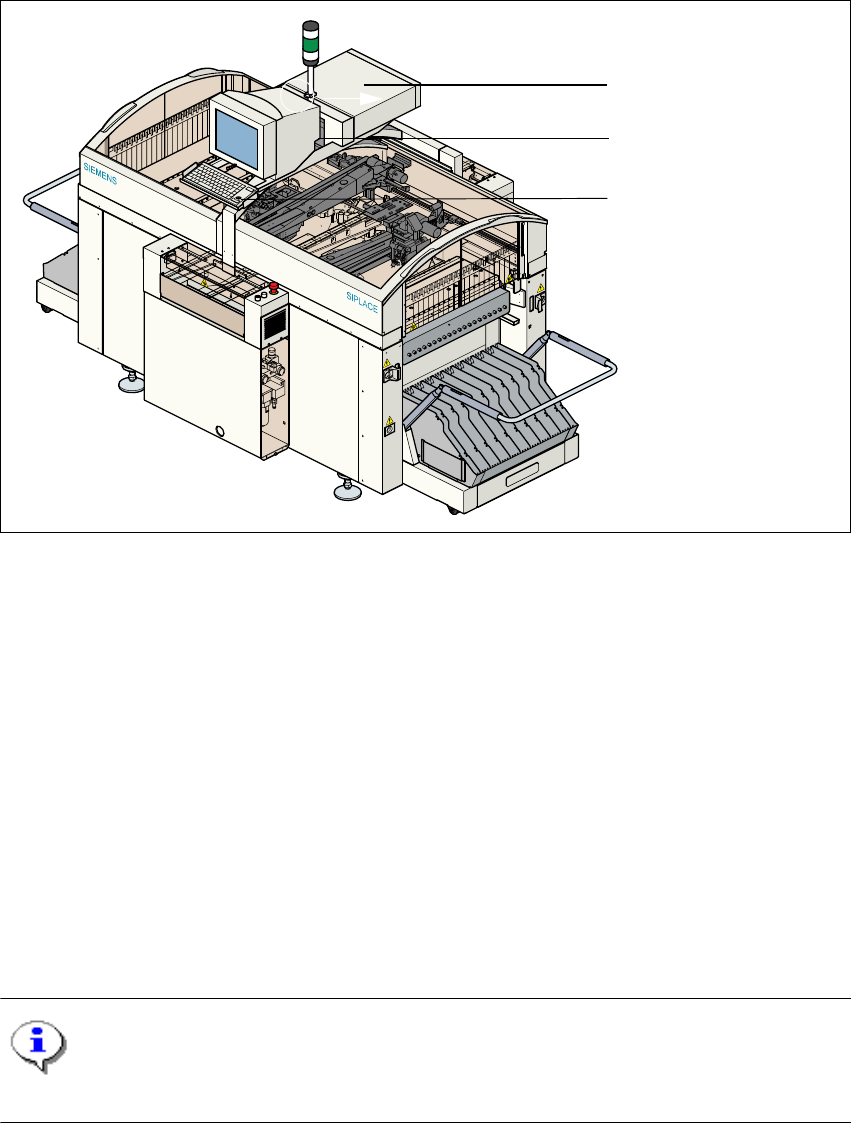

Fig. 2.2 - 1 Example SIPLACE F5 HM
Key to Fig. 2.2 - 1
(1) Station computer
(2) Monitor
(3) Keyboard
A station may exist as part of a line or may be the only machine in a line. 2
Every station is equipped with a station computer: 2
– which is mounted over the output conveyor on a support (SIPLACE S23 and F5 HM)
– which is located in the machine frame (SIPLACE CS and CF).
A monitor and a keyboard with an integrated trackball and mouse buttons are mounted above the
cover on a pivot arm (see Fig. 2.2 - 1). 2
NOTE
You can operate the station computer software either via the keyboard or via the trackball. 2
1
2
3
1
2
(1)
(2)
(3)
SIPLACE Software Guide Version 408.xx 2 Introduction and basic terms
Issue 03/06 EN 2.2 Overview
13
2.2.1 Overview of the SIPLACE CS and S23
2

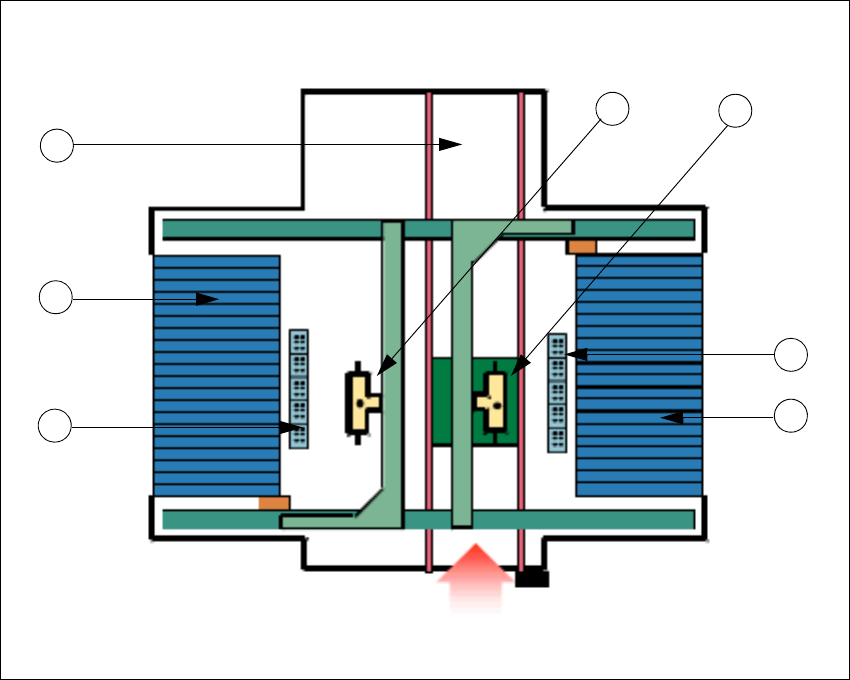

Fig. 2.2 - 2 Overview of the SIPLACE CS and S23
Key to Fig. 2.2 - 2
(1) Collect & Place placement head on gantry 1
(2) Collect & Place placement head on gantry 2
(3) Nozzle changer for Collect & Place placement head on gantry 1
(4) Nozzle changer for Collect & Place placement head on gantry 2
(5) Location 1 (with changeover table)
(6) Location 3 (with changeover table)
(7) PCB conveyor (dual conveyor for SIPLACE S23)
2
Transport direction
5
1
7
3
6
4
2
2 Introduction and basic terms SIPLACE Software Guide Version 408.xx
2.2 Overview Issue 03/06 EN
14
2.2.2 Overview of the SIPLACE CF and F5 HM
2
Fig. 2.2 - 3 Overview of the SIPLACE CF and F5 HM with WPC
Key to Fig. 2.2 - 3
(1) Collect&Place placement head on gantry 1
(2) Pick&Place placement head on gantry 1
(3) Nozzle changer for Collect&Place placement head
(4) Nozzle changer for Pick&Place placement head
(5) Location 1 (with WPC)
(6) Location 2 (with component table)
(7) Location 3 (with changeover table)
(8) PCB conveyor (dual conveyor for SIPLACE F5 HM)
Transport direction
5
2
8
3
7
4
1
6
