SIPLACE Software Guide Version 408.xx 3 Graphical user interface Issue 03/06 EN 3.3 User interface - vie ws and menus 27 3 Fig. 3.3 - 2 " Shut down computer" dialog box Æ Click Ye s if you want to terminate you…

3 Graphical user interface SIPLACE Software Guide Version 408.xx

3.3 User interface - views and menus Issue 03/06 EN

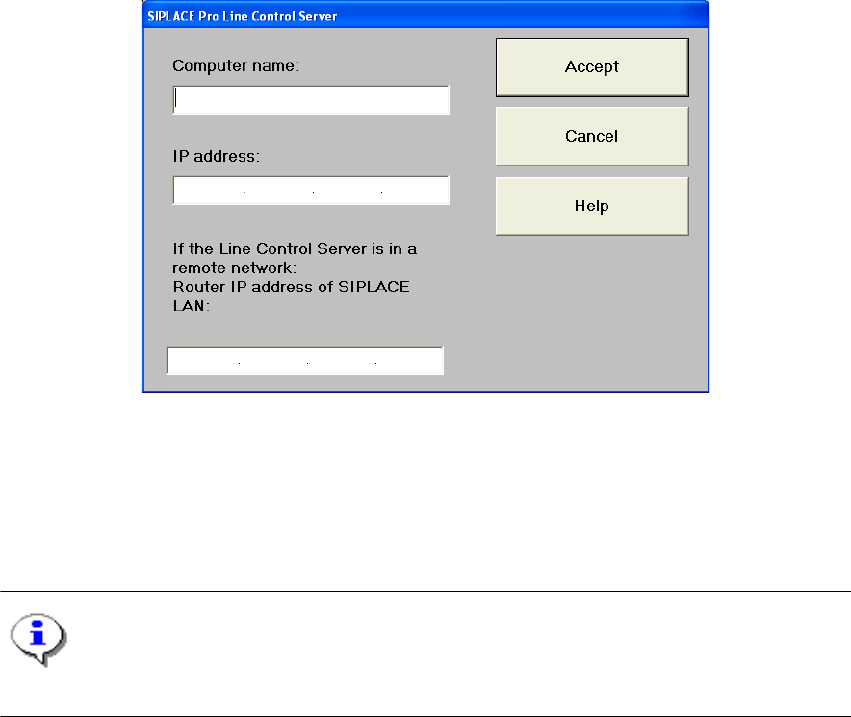

Fig. 3.3 - 1 SIPLACE Pro Line Control Server

Switch to operating system... 3

You use this menu item to switch to the Windows operating system after entering your password.

From here, you can then subsequently return to the SIPLACE user interface. 3

NOTE

This menu option is not available at the "Operator" access level. 3

Æ Click the Switch to operating system... menu item.

This shows the Windows user interface. The SC software continues to run in the background.

Shut down computer... 3

All applications are closed without any files which may have been processed being saved and the

station computer is shut down. 3

Æ Click the Shut down computer... menu item.

The following dialog box will be opened.

SIPLACE Software Guide Version 408.xx 3 Graphical user interface

Issue 03/06 EN 3.3 User interface - views and menus

Fig. 3.3 - 2 " Shut down computer" dialog box

Æ Click Yes if you want to terminate your work.

The station computer is shut down.

Æ Wait until the computer has shut down completely, and then switch off the station at the main

switch.

3.3.2.2 "View" menu"

The "View" menu contains the options for calling the placement functions, single functions and vi-

sion functions. It is also used to start the SITEST test program. 3

Æ Click the required menu option.

The screen display is switched to the corresponding view. From there you can carry out the

required functions.

NOTE

All the options in this menu can also be started by clicking the corresponding toolbar button (see

section 3.2.2) or by pressing the corresponding function key.

The assignment of the function keys differs from machine to machine and depends on the options

which are installed.

If shortcuts have been defined, these can also be used. 3

The 3 menu options below belong to the group of

placement functions. 3

Set-up F2 3

The setup for a feeder location is displayed in tabular form. It can be called separately for each of

the max. 4 locations. 3

3 Graphical user interface SIPLACE Software Guide Version 408.xx

3.3 User interface - views and menus Issue 03/06 EN

Error F3 3

Errors are differentiated by type and each error type is presented in a separate table. You can call

separate tables for track errors, conveyor errors, machine errors and general errors.

The last error to have occurred is always displayed at the top of the table. Identical errors are cu-

mulated in the error counter ("#E" column). 3

Feeders F4 3

Here you can use a variety of functions to display and fill empty tracks for vibratory stick feeders

or to display and modify component levels for magazines and wafflepack changers. 3

The following 3 menu options belong to the group of

single functions.

The single functions are used to execute specific actions following fatal errors as well as to set up

and test the machine since they allow you to address the various functional modules in a defined

manner. 3

SF gantry 1 F5 3

This is used to call the single functions for gantry 1. These can be used to, for example, test the

functions of the pick&place head. 3

NOTE

Each of the two gantries of the SIPLACE CS and S23 can be addressed separately.

The functions are identical for both gantries. 3

SF gantry 2 F6 (only for SIPLACE CS and S23) 3

Single functions for gantry 2 3

Conveyor 1 F7 3

This is used to call the single functions for PCB conveyor. These are used to test and set the func-

tional modules for PCB conveyor as well as to set the conveyor width. 3

NOTE

The SIPLACE S23 and F5 HM machine support the dual conveyor. Therefore 2 conveyor

functions (right, left) are available in the toolbar. The functions are identical for both. 3
