3 Graphical user interface SIPLACE Software Guide Version 408.xx 3.3 User interface - views and menus Issue 03/06 EN 30 3.3.2.3 "Op tions" menu The "Options" menu is only available in the main view . …

SIPLACE Software Guide Version 408.xx 3 Graphical user interface

Issue 03/06 EN 3.3 User interface - views and menus

The next two menu options belong to the group of vision functions.

These functions are used to teach and test fiducials, measure components and change compo-

nent package form data.

The vision functions cannot be executed at the "Operator" access level. 3

Teach fiducial F8 3

This menu item is used to call the functions for the processing of fiducials for PCB position recog-

nition.

For a more extensive description of the procedure refer to the "Vision functions" section of the op-

erating instructions and in the online Help system. 3

Test component F9 3

This menu item is used to call the functions for the processing of component package forms for

component centering.

For a more extensive description of the procedure refer to the "Vision Functions" section of the

operating instructions. 3

Start SITEST F10 3

This automatically starts the SITEST test program for machine set-up and calibration.

The user interface, together with the procedure for the execution of the functions, is described in

the separate User’s Manual for the SITEST test program. 3

NOTE

The SITEST test program cannot be started from the "Operator" access level. 3

3 Graphical user interface SIPLACE Software Guide Version 408.xx

3.3 User interface - views and menus Issue 03/06 EN

3.3.2.3 "Options" menu

The "Options" menu is only available in the main view. This menu contains all the supplementary

functions. 3

Æ Click the required menu item and then make the appropriate settings or selections in the cor-

responding windows or dialog boxes.

Machine options... 3

Depending on access level, you can obtain information about the station configuration ("Opera-

tor") or activate or deactivate the displayed machine options ("Line engineer", "Service"). 3

Æ Click the Machine options... menu item (or the appropriate button in the working area of the

main view). The following window is displayed.

Fig. 3.3 - 3 "Machine options" dialog box (example: SIPLACE CF)

NOTE

Only those machine options are displayed which are configured at the current station.

This dialog box may contain different information and check boxes depending on the type of

SIPLACE machine being used. 3

SIPLACE Software Guide Version 408.xx 3 Graphical user interface

Issue 03/06 EN 3.3 User interface - views and menus

Æ Click the checkboxes corresponding to the machine options which you want to activate or de-

activate.

NOTE

At "Operator" access level, it is only possible to activate and deactivate the conveyor interface op-

tions. 3

Æ Click Accept to save the settings.

Access level... 3

It is possible to protect some of the functions of the user interface against unauthorized use by

setting an access level and allocating a password. Functions which are not accessible from a

given access level cannot be executed since the associated push buttons, radio buttons and

menu commands are either inactive or not displayed. 3

You can choose between the access levels "Operator", "Line engineer" and "Service". Passwords

can be allocated for the access levels "Line engineer" and "Service". 3

Æ Click the Access level... menu item.

The "Access level" dialog box is displayed.

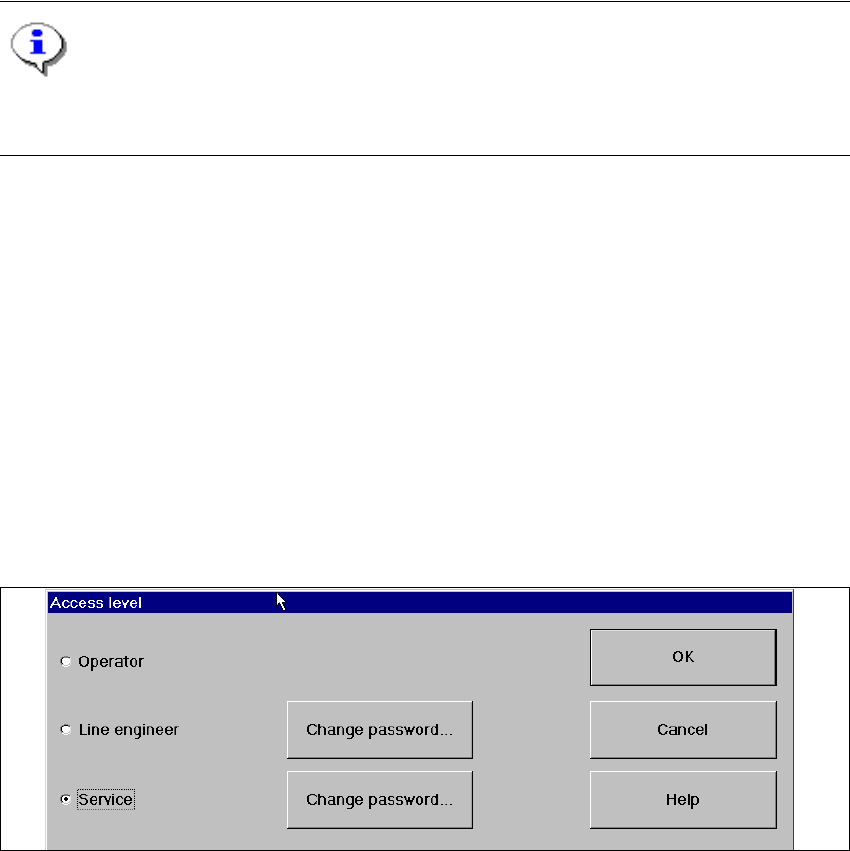

Fig. 3.3 - 4 "Access level" dialog box

Æ Click the radio button for the required access level.

Æ Click the "Change password" button to the right of the access level if you want to allocate a

password or change an existing password.

The dialog box for password entry is now displayed.
