SIPLACE Software Guide Version 408.xx 3 Graphical user interface Issue 03/06 EN 3.3 User interface - vie ws and menus 35 Æ Select the required gantr y and activate/deact ivate the test commands by clicking the corre- spo…

3 Graphical user interface SIPLACE Software Guide Version 408.xx

3.3 User interface - views and menus Issue 03/06 EN

Æ Now enter the name of the required panel in the displayed text box and click OK to confirm.

The panel data is now loaded.

NOTE

The data, including the fiducial and component package form data, of the last panel successfully

specified by SIPLACE Pro, is now saved on the station computer’s hard disk under the panel

name "AKTUELL" and can be loaded by entering this name. 3

Software... 3

This menu item is used to activate the test commands (test functions) for checking a variety of

machine components. 3

NOTE

This menu item can only be called from the "Service" access level. 3

WARNING

Settings for test commands and test command execution should be performed by service engi-

neers only. 3

Æ Click the Software... menu item.

The following window is opened.

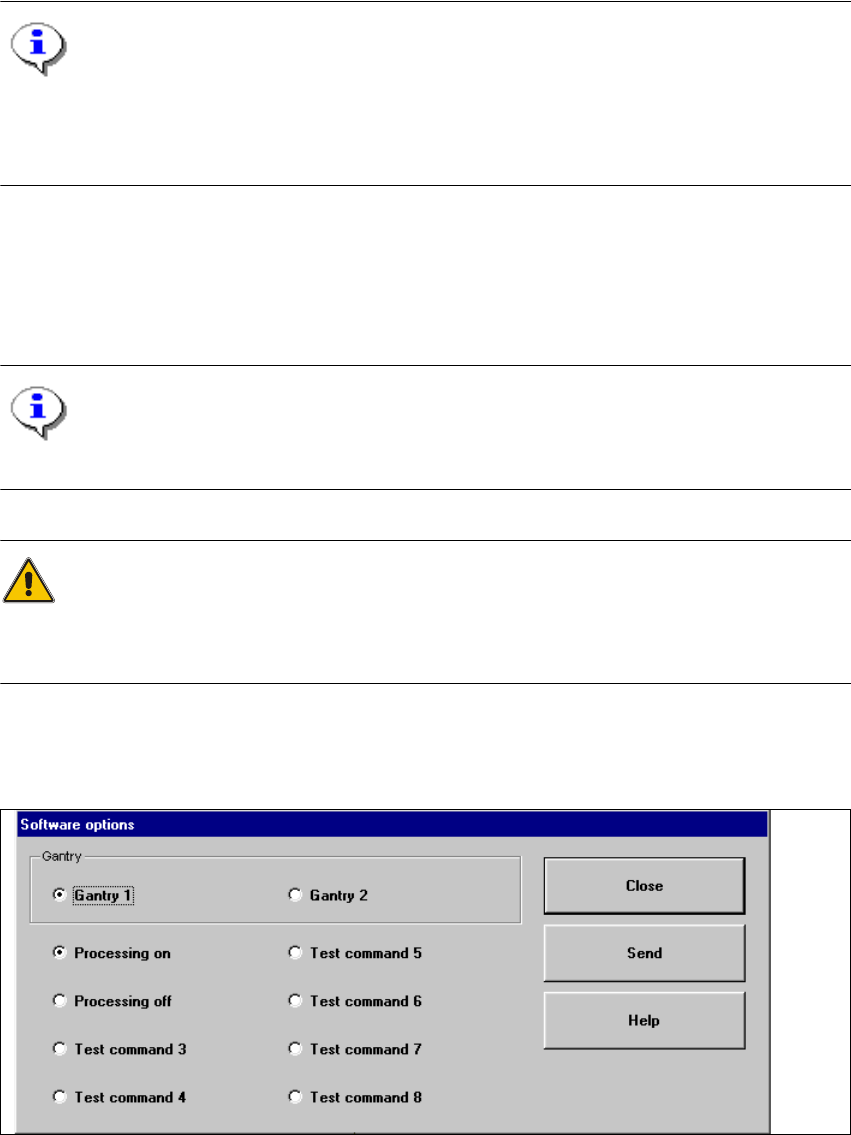

Fig. 3.3 - 9 "Software options" dialog box (example: SIPLACE CS)

SIPLACE Software Guide Version 408.xx 3 Graphical user interface

Issue 03/06 EN 3.3 User interface - views and menus

Æ Select the required gantry and activate/deactivate the test commands by clicking the corre-

sponding radio buttons.

Æ Click Close to set the software options.

NOTE

When the station is rebooted, the software options are reset to their original settings. 3

Cycle mode... Alt+t 3

This menu item can be used to switch the station to cycle mode (after pressing the stop button).

This function can be used to localize errors. 3

Æ Click the Cycle mode... menu item or press the key combination ALT+t. The "Cycle mode"

settings box is opened.

Æ Click the On radio button to activate cycle mode or the Off radio button to deactivate it.

Æ Click the OK button. Cycle mode is now either activated or deactivated.

NOTE

In cycle mode, you must press the Start button on the machine for every operating step. 3

Load table program 3

This menu item allows you to reload the table program into the memory of the table program

controller. You may need to do this, for example, if a machine error has resulted in the loss of the

table program. 3

NOTE

This function cannot be executed in "Operator" access mode. 3

Æ Click the menu item "Load table program".

The program is loaded. (The loading process can take some time).

3 Graphical user interface SIPLACE Software Guide Version 408.xx

3.3 User interface - views and menus Issue 03/06 EN

Video image > Alt+8 3

In the case of certain actions, it may be necessary to display the camera image of the machine

vision system (vision evaluation unit) on-screen during assembly. 3

Æ Click the Video image > menu item or press the key combination ALT+8. The display area is

switched to the MVS camera image in processing area 1.

Æ Press the ESC key to restore the display area to the normal view.

Cluster for fine calibration... (only for SIPLACE S23 and F5 HM) 3

In "Stand alone" control mode, you can use this menu item to load the data of a selected panel

(placement program) from the station computer’s hard disk. 3

NOTE

A detailed description can be found in the fine calibration manual and in the online Help system.3

Fluxing (only for SIPLACE CF and F5 HM) 3

NOTE

A detailed description can be found in the online Help system. 3

PCB barcode 3

You use this item to display a dialog box with a list of the barcodes most recently read by the PCB

barcode reader. This dialog box also informs you if an error occurred while reading the barcode,

if the file format is incorrect or if no data is available. 3

NOTE

You cannot call the menu item "PCB barcode ..." unless the PCB barcode reader has been in-

stalled in the machine and has been activated in the machine options. 3

Configure traceability... 3

This menu item can be used to specify the settings for the "Traceability" option. The item is only

active if the "Traceability" option has been installed on the SIPLACE machine and is activated in

the "Component verification with barcode" machine options. 3
