4 Switching the SIPLACE line on and off SIPLACE Software Guide Version 408.xx 4.1 Switching on the SIPLACE line Issue 03/06 EN 46 4 Fig. 4.1 - 2 "Switching on the SIPLACE line" flow chart Nozzle check If necess…
SIPLACE Software Guide Version 408.xx 4 Switching the SIPLACE line on and off
Issue 03/06 EN 4.1 Switching on the SIPLACE line
45
Æ When the "Press start button“ prompt appears, press one of the start buttons.
(The start buttons are located on the input side and on the output side.)
A reference run is executed on all axes. The station is ready for operation after the reference
run has been completed.
The icon is displayed in the work area of the user interface.
4.1.4 "Switching on the SIPLACE line" flow chart
The following flow chart shows the actions executed while the SIPLACE line is being switched on
and started up. 4
4 Switching the SIPLACE line on and off SIPLACE Software Guide Version 408.xx
4.1 Switching on the SIPLACE line Issue 03/06 EN
46
4

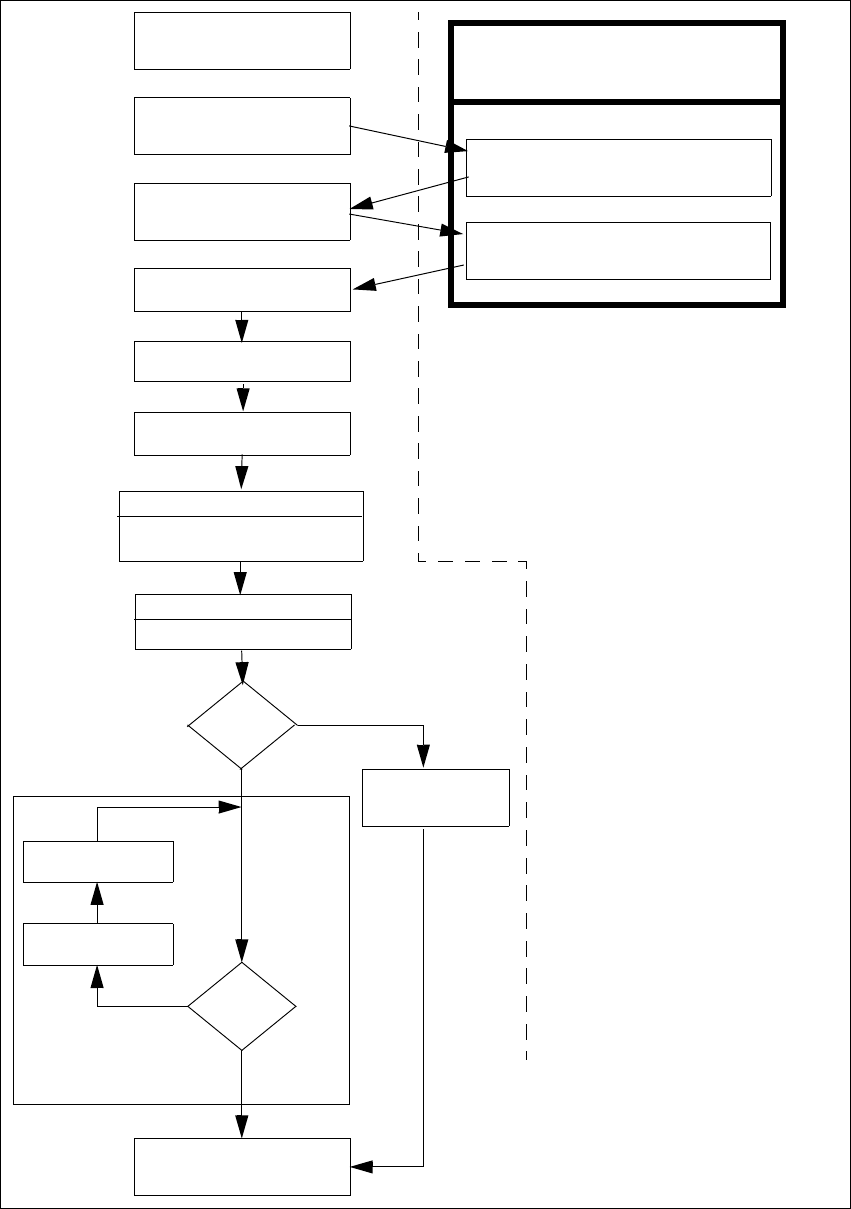

Fig. 4.1 - 2 "Switching on the SIPLACE line" flow chart
Nozzle check
If necessary, change
nozzle configuration
Test set-up
Set tracks to full
No
Tasks of the programming system
computer
Load panel data
Fiducials
OK?
Make settings on the machine
Download-Assistent
Check the set-up
(attach feeder modules)
Switch on
Wait for reference run
Track
errors
Yes
Abort
placement
No
PCB to output conv.
Yes
Station computer
Bold type:
Italic type:
To be carried out by the
operator
Carried out or signaled
by the station
Confirm change over in the
download wizard
Wait for PCB
Introduce PCB
Press the Start button
SIPLACE Software Guide Version 408.xx 4 Switching the SIPLACE line on and off
Issue 03/06 EN 4.2 Switching off the SIPLACE line
47
4.2 Switching off the SIPLACE line
CAUTION
Before you switch off the line, ALWAYS make sure that: 4
– All placement operations on the stations have been completed
– The z-axis of all placement heads are in the top end position
– None of the placement heads still contain components
– All gantries have moved into the standby position
– The station computers have been properly shut down.
4.2.1 Switching off SIPLACE Pro (Windows)
Æ Select Item --> Exit from the SIPLACE Pro menu bar.
Æ Close all other programs on the computer.
Æ Select Shutdown from the Windows Start menu.
4.2.2 Switching off the stations
Proceed as follows to switch off the station: 4
Æ Terminate all placement operations.
Æ Check to make sure that the z-axes of all placement heads are in the top end position.
Æ Check to see if there are components in the placement heads and, if necessary, remove.
Æ If necessary, move all gantries to the waiting position with the help of the corresponding gantry
functions (see the user manual for your machine).
NOTE
Gantries are usually moved automatically to the waiting position. 4
