7 Additional programs SIPLACE Software Guide Version 408.xx
7.1 Test program "SITEST" Issue 03/06 EN
58
Æ

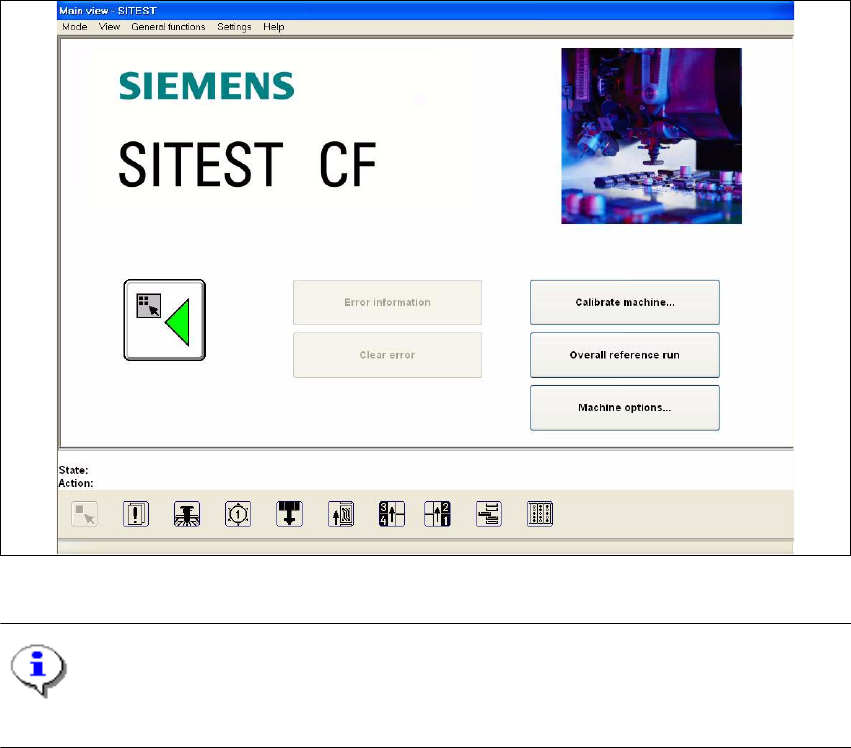

Fig. 7.1 - 1 SITEST user interface (Example: SIPLACE CF)
NOTE
The SITEST test program can only be started from the "Service technican" access level.
7.1.4 Overview plans - Menus in the main view
On the following pages you will find an overview of the menus and sub-menus available in the
main view of the SITEST user interface for the machine types supported by version SC.408.xx of
the software.
SIPLACE Software Guide Version 408.xx 7 Additional programs
Issue 03/06 EN 7.1 Test program "SITEST"
59
GUI SITEST Version 408.xx
SIPLACE CS, CF, F5 HM, S23
Edition 03/20
0
(only SIPLACE F5 HM and S23)
main view [F1]
Access level ...
Save WPC maschine data
Copy maschine data ...
Language
Save maschine data
Maschine configuration ...
Settings
(only SIPLACE S23 and CS)
Test functions ...
Cycle mode ... - Alt+t
General functions
RV camera P1 - Alt+6
IC camera - Alt+7
Flip-chip camera - Alt+8
PCB camera P2 - Alt+3
PCB camera P1 - Alt+4
View
Error - F2
Wafflepack changer - F11
Gantry 1 - F3
Gantry 2
RV head 1 - F4
RV head 2
IC head - F5
Flux dispenser - F6
PCB conveyor 1 - F7
PCB conveyor 2 - F8
Table, left - F9
Table, right - F10
In-/outputs - F12
(only SIPLACE F5 HM and CF)
(only SIPLACE F5 HM and CF)
German
English
Help
Content - Ctrl+F1
Help - Alt+F1
Use help
Info ...
(only SIPLACE F5 HM)
(only SIPLACE S23 and CS)
(only SIPLACE S23 and CS)
Mode
Exit - Alt+F4
Shut down computer
7 Additional programs SIPLACE Software Guide Version 408.xx
7.1 Test program "SITEST" Issue 03/06 EN
60

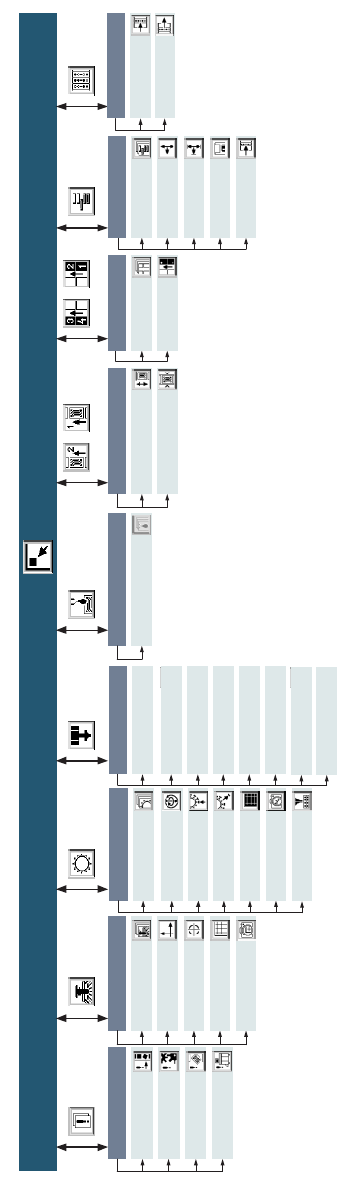

main view [F1]
[F2] [F3] [F4]
Functions
Axes
Settings
Maschine data
Inputs
WPW
[F9] [F10]
Flux dispenser
Functions
[F5] [F6]
[F8] [F7]
[F11]
[F12]
Error
Track errors
Maschine errors
Transport errors
General errors
Functions
Gantry
Axes
Calibrate position
PCB mapping
PCB camera
PCB conveyor
Conveyor functions
Conveyor width
Table
Functions
Calibrate
pick-up position
Inputs
In-/Outputs
Outputs
Revolver head
Functions
Axes
Holding and reject
circuit/ turning station
Placement and
pick-up circuit
RV mapping
RV head/ camera
Nozzle changer
IC head
Functions
Axes
Head board
IC mapping
IC head and
camera
Flip-chip camera
Nozzle changer
Coplanarity
