Fig. H1-8 可動ベース２ Movable Base 2 1 101-001 758 766 744 743 733 744 743 723 757 765 767 736 742 741 731 749 725 760 Key No.606 See Fig. H1-7 Key No.606 See Fig. H1-7 746 738 746 738 728 726 728 717 733 742 741 754 735 721 …
MEMO

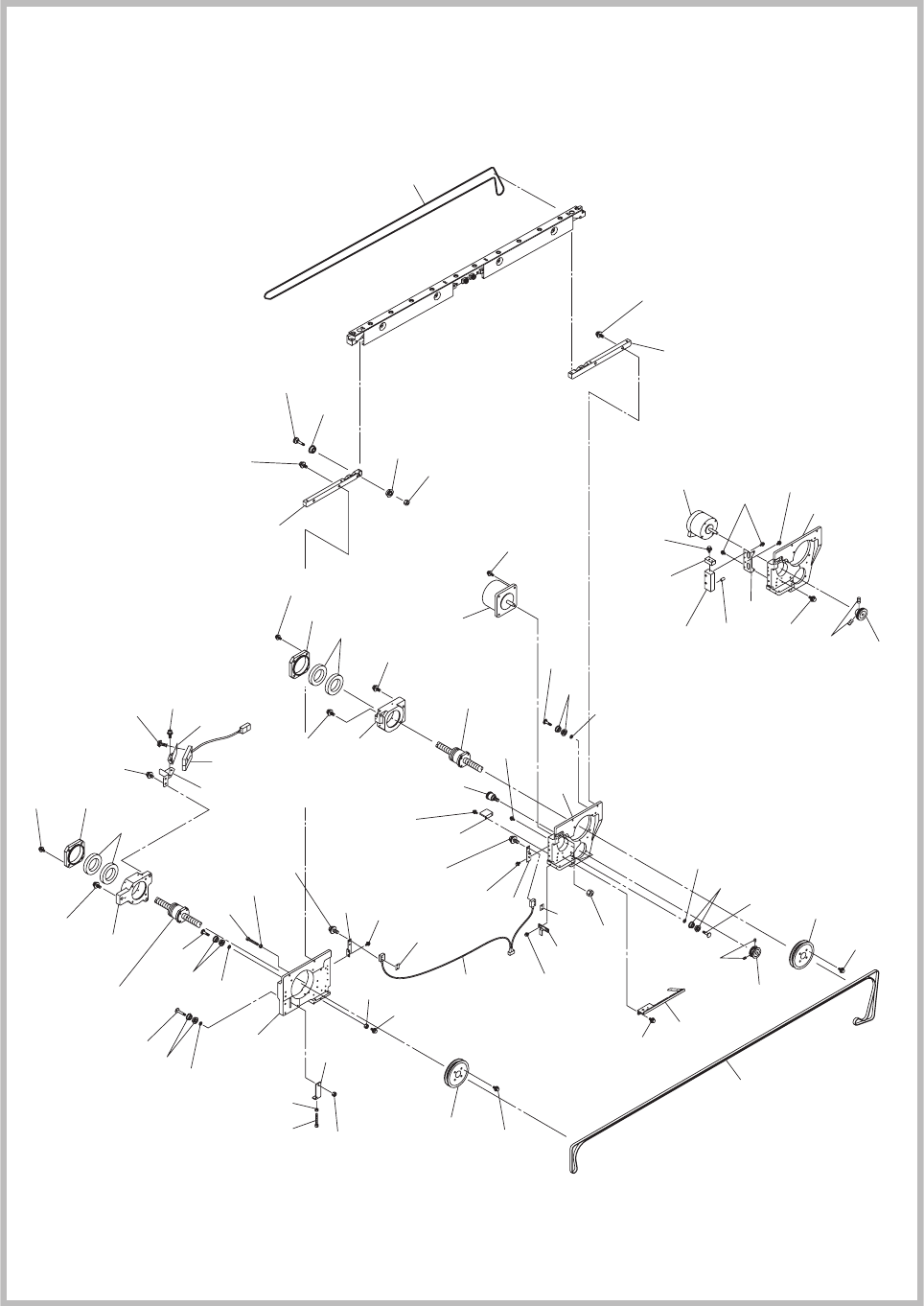

Fig. H1-8
可動ベース２
Movable Base 2
1101-001
758
766
744
743
733
744
743
723
757
765
767
736
742
741
731
749
725
760
Key No.606
See Fig. H1-7
Key No.606
See Fig. H1-7
746
738
746
738
728
726
728
717
733
742
741
754
735
721
724
719
747
744
743
709
750
743
749
730
730
729
722
737
739
740
762
740
739
745
708
763
707
755
117
117
720
703
701
715
727
717
742
741
732
744
743
756
744
743
714
740
739
748
740
739
751
740
739
745
734
755
741
760
732
744
743
733
712
710
716
735
744
743
733
744
743
714
749
740
739
713
727
755
702
755
727
752
753
713
704
708
764
707
718
755
727
713
759
720
705
756
744
743
761
736
702
Fig. H1
デュアル搬送 (
Y
サイズ
250mm
対応 )
DUAL TRANSFER(FOR
Y SIZE 250mm)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
701 0948C41B BLOCK(2L) 1 1099202402-001
702 0948C41C BLOCK(2R) 1 1099202402-002
703 0948C41J BLOCK(2L3RT) 1 1099202402-003
704 0948C41K BLOCK(2R3LT) 1 1099202402-004
705 0948C41P BRACKET(DOG2) 1 1099202402-005
707 216B1798 HOLDER 2 1099202402-007
708 222D0423 BEARING_RADIAL 4 1099202402-008
709 223L0383 BELT_TIMING 1 1099202402-009
710 223L0327 BELT_TIMING 1 1099202402-010
711 223Q0767 PULLEY_TIMING 2 1099202402-011
712 223Q0758 PULLEY_TIMING 1 1099202402-012
713 213A1581 SHAFT 4 1099202402-013
714 221AB008 BOLT_HEX-SCT 4 1099202402-014
715 213A1574 SHAFT 1 1099202402-015
716 0948C41V BRACKET(2R) 1 1099202402-016
717 221AA016 ROHS_HEX-SCT 4 1099202402-017
718 4M140174 MOTOR_STEPPING 1 1099202402-018
719 4M140178 MOTOR_STEPPING 1 1099202402-019
720 211FD659 BRACKET 2 1099202402-020
721 223Q0749 PULLEY_TIMING 1 1099202402-021
722 223M0059 PULLEY_FLAT 1 1099202402-022
723 0948250H ASSY_SENSOR 1 1099202402-023
724 0948250C ASSY_CYLINDER 1 1099202402-024
725 0948C40Y TENSIONBRACKET 1 1099202402-025
726 0948250L ASSY_SENSOR 1 1099202402-026
727 222D0017 BEARING_RADIAL 10 1099202402-027
728 211FD666 BRACKET 2 1099202402-028
729 223Q0755 PULLEY_TIMING 1 1099202402-029
730 222D0016 BEARING_RADIAL 2 1099202402-030
731 221BA004 ROHS_BOLT_HEX 1 1099202402-031
732 221AA005 ROHS_HEX-SCT 4 1099202402-032
733 221AA006 ROHS_HEX-SCT 8 1099202402-033
734 221AA018 ROHS_HEX-SCT 2 1099202402-034
735 221CA005 SET_SCREW 4 1099202402-035
736 221FA007 NUT_HEX 2 1099202402-036
737 221FA009 NUT_HEX 1 1099202402-037
738 221DA004 MACHINE_SCREW 4 1099202402-038
739 221HA005 WASHER 11 1099202402-039
740 221HA105 WASHER 11 1099202402-040
741 221HA004 WASHER 7 1099202402-041
742 221HA104 WASHER 5 1099202402-042
743 221HA003 WASHER 23 1099202402-043
744 221HA103 WASHER 22 1099202402-044
745 221AA017 ROHS_HEX-SCT 8 1099202402-045
746 221HA101 WASHER 8 1099202402-046
Fig. H1
1101-001
Fig. H1-8
GS-CU300
