P-324-001e - 第43页
MEMO
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
747 221AA010 ROHS_HEX-SCT 2 1099202402-047
748 221AA031 ROHS_HEX-SCT 1 1099202402-048
749 221FA005 NUT_HEX 3 1099202402-049
750 221HA203 WASHER 1 1099202402-050
751 221AA033 ROHS_HEX-SCT 2 1099202402-051
752 211G5843 BLOCK 1 1099202402-052
753 0948C411 STOPPERBRACKET 1 1099202402-053
754 225F0240 PIPE_FITTINGS 2 1099202402-054
755 221HA204 WASHER 7 1099202402-055
756 221AA007 ROHS_HEX-SCT 8 1099202402-056
757 0948C42A 2LRSENSORBRACKET 1 1099202402-057
758 221DA013 MACHINE_SCREW 2 1099202402-058
759 0948C40Z 2RMOTORBRACKET 1 1099202402-059
760 221A0229 HEX-SCT(BUTTON 2 1099202402-060
761 221BB002 ROHS:BOLT_HEX 1 1099202402-061
762 221AA032 ROHS_HEX-SCT 3 1099202402-062
763 0948C40J HOLDER(2L) 1 1099202402-063
764 0948C41F HOLDER(2R) 1 1099202402-064
765 0948C425 SENSORBRACKET21 1 1099202402-065
766 221AA099 ROHS_HEX-SCT 2 1099202402-066
767 221BA003 ROHS_BOLT_HEX 1 1099202402-067
Fig. H1-8
1101-001
Fig. H1
GS-CU300
MEMO

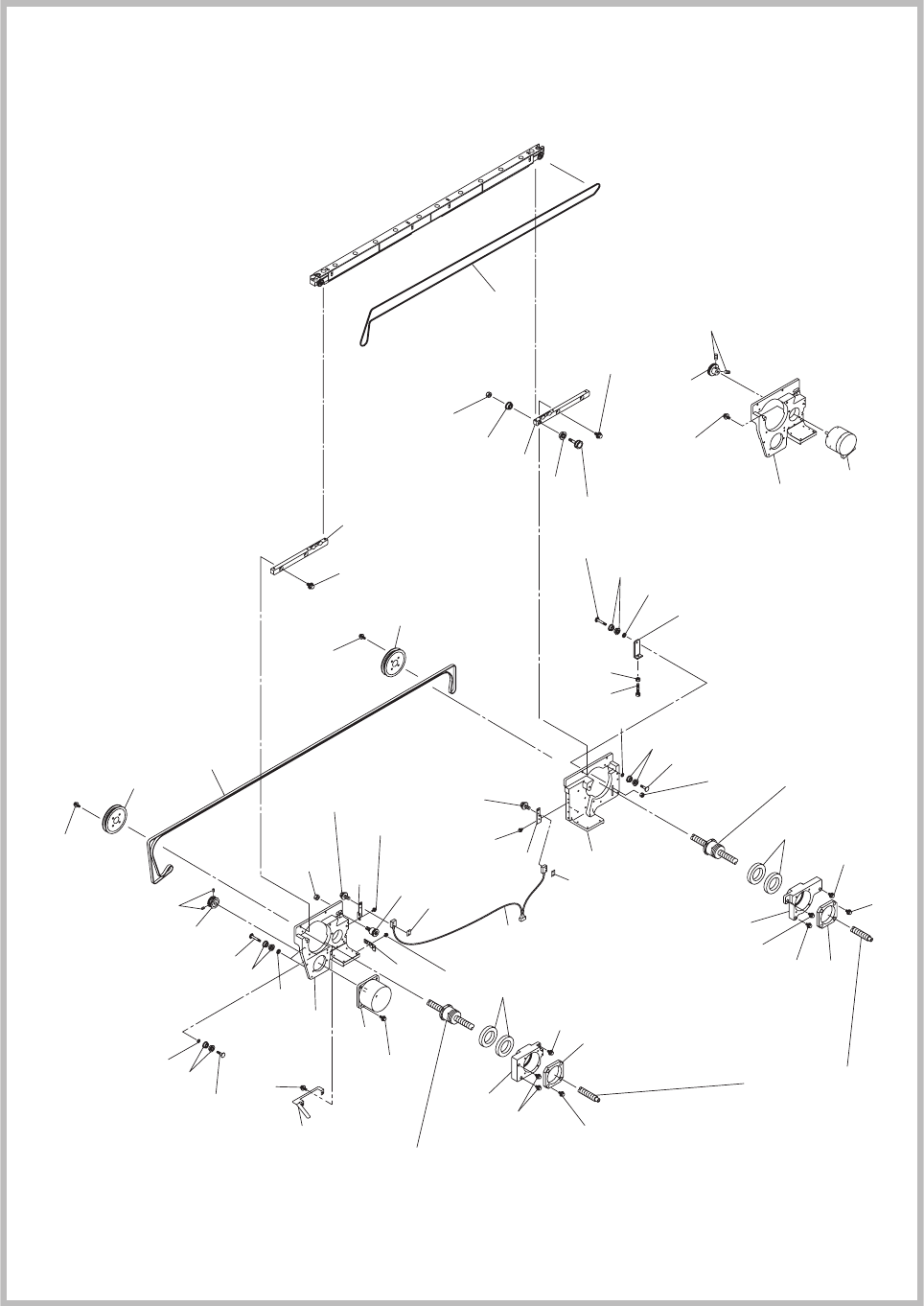

Fig. H1-9
可動ベース３
Movable Base 3
1101-001
846
838
846
838
828
826
828
Key No.606
See Fig. H1-7
Key No.606
See Fig. H1-7
Key No.606
See Fig. H1-7
822
840
839
837
849
830
829
850
843
830
835
821
801
819
844
843
847
809
817
842
841
851
840
839
845
834
855
841
856
844
843
856
844
842
841
836
842
840
814
839
833
844
843
833
844
843
832
824
807
844
843
814
840
839
118
839
848
840
851
845
840
839
831
849
823
807
808
816
835
812
815
827
855
801
818
805
820
820
810
813
827
855
804
803
808
802
825
855
827
815
813
827
855
118
848
840
839
851
840
839
Fig. H1
デュアル搬送 (
Y
サイズ
250mm
対応 )
DUAL TRANSFER(FOR
Y SIZE 250mm)
