3 Technical data and assemblies User manual SIPLACE E 3.5 Placement head From software version SC 708.0 12/2014 Editio n 118 3.5.2 SIPLACE CP12 for high-speed placement Item no. 030825 32-xx, SIPLACE CP12 Item no. 031016…
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 12/2014 Edition 3.5 Placement head
117

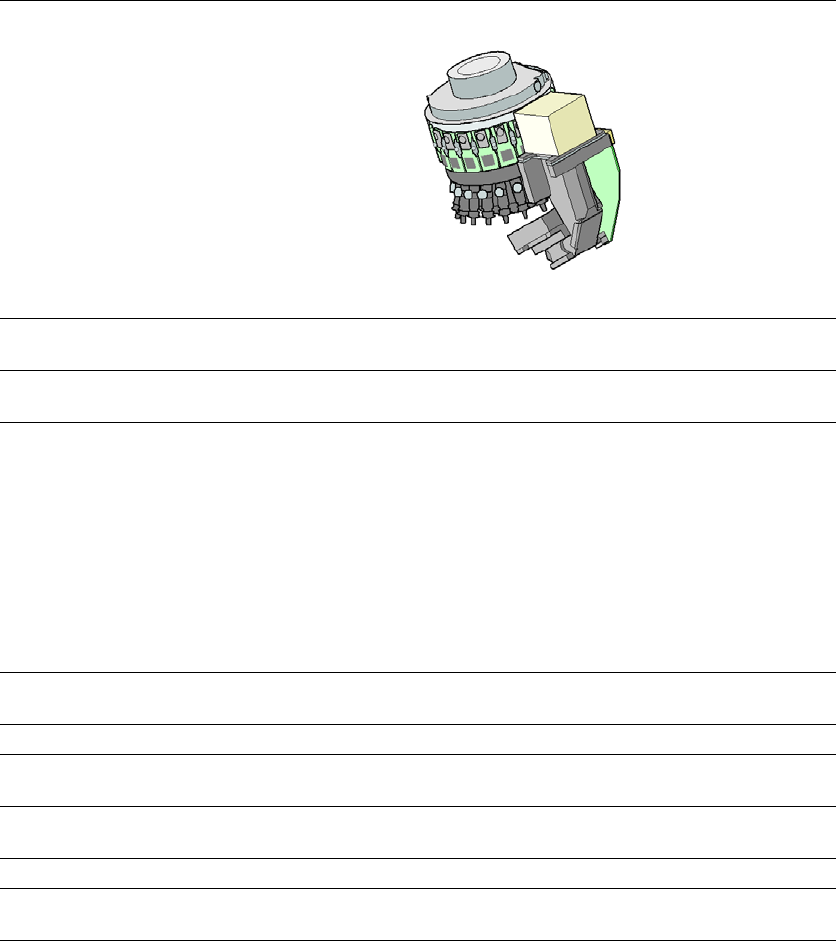

3.5.1.4 Technical data SIPLACE CP14
3
SIPLACE CP14
with component camera type
23 GigE
Component range
*a
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-spe-
cific standards, the component packaging tolerances and the component tolerances.
01005 to 2220, Melf, SOT,
SOD
Component spec.
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
4 mm
0.25 mm
0.1 mm
0.4 mm
0.2 mm
0.4 mm x 0.2 mm
6 mm x 6 mm
0.25 g
Programmable set-down
force
1.3 - 4.5 N
Nozzle types 4xxx
X/Y accuracy
*b
*)b The SIPLACE benchmark value is measured during the machine acceptance tests. It corresponds to the
conditions set out in the SIPLACE scope of service and supply.
± 41 µm/3σ
± 55 µm/4σ
Angular accuracy ± 0.5° / 3σ
± 0.7° / 4σ
Illumination level 5
Possible illumination
level settings
256
5
3 Technical data and assemblies User manual SIPLACE E
3.5 Placement head From software version SC 708.0 12/2014 Edition
118
3.5.2 SIPLACE CP12 for high-speed placement
Item no. 03082532-xx, SIPLACE CP12
Item no. 03101672-xx, Component camera, type 30 GigE
3

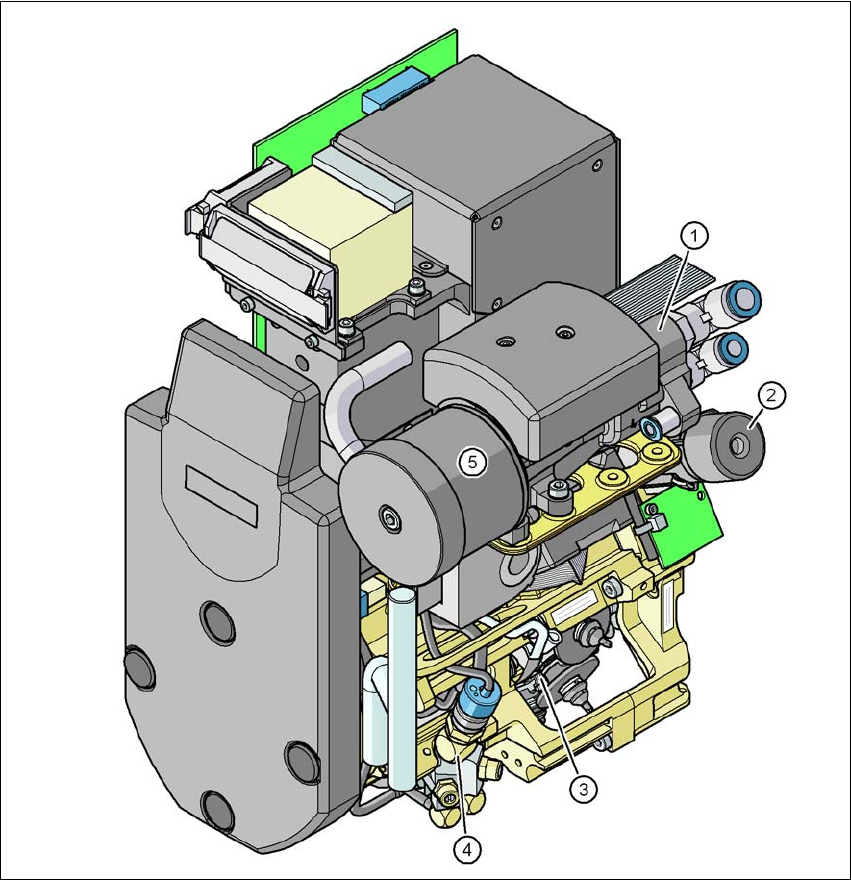

Fig. 3.5 - 3 SIPLACE CP12 - Function groups, part 1
3
(1) Vacuum generator
(2) Turning station, DP axis
(3) Star with 12 sleeves, star axis
(4) Forced air valve
(5) Silencer
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 12/2014 Edition 3.5 Placement head
119
3

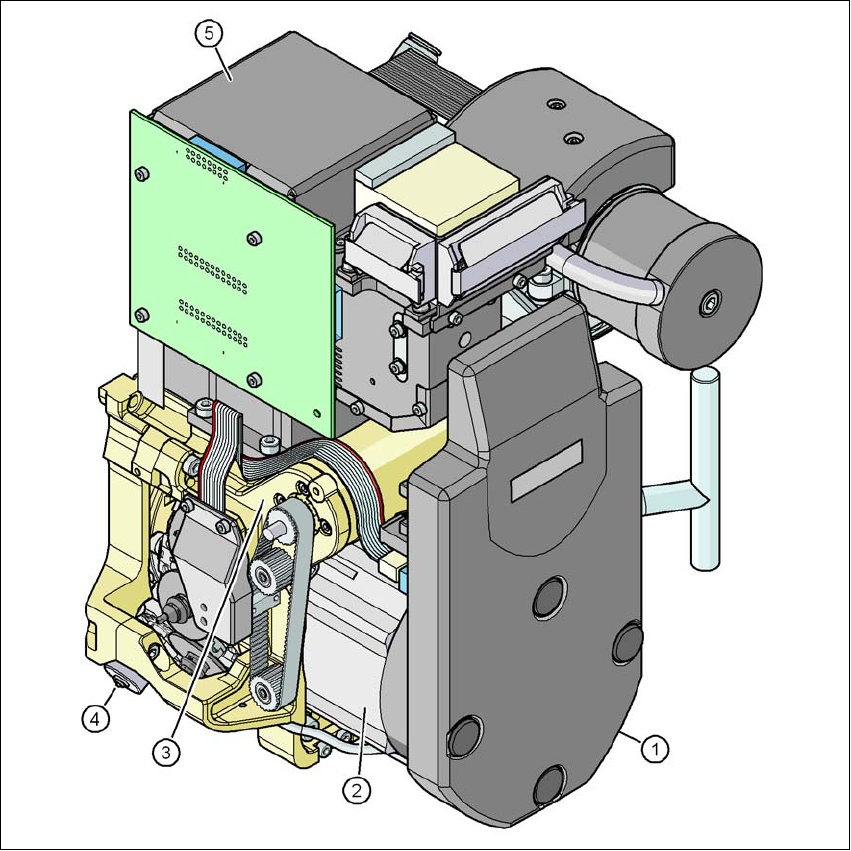

Fig. 3.5 - 4 SIPLACE CP12 - Function groups, part 2
3
(1) Intermediate distributor board (beneath the cover)
(2) Star drive - DR motor
(3) Z axis motor
(4) Valve adjustment drive
(5) Component camera, type 30 GigE
