3 Technical data and assemblies User manual SIPLACE E
3.5 Placement head From software version SC 708.0 12/2014 Edition
122
3.5.3 SIPLACE CP6 for high-speed IC placement
Item no. 03105986-xx SIPLACE CP6
Item no. 03101672-xx, Component camera, type 30 GigE
3

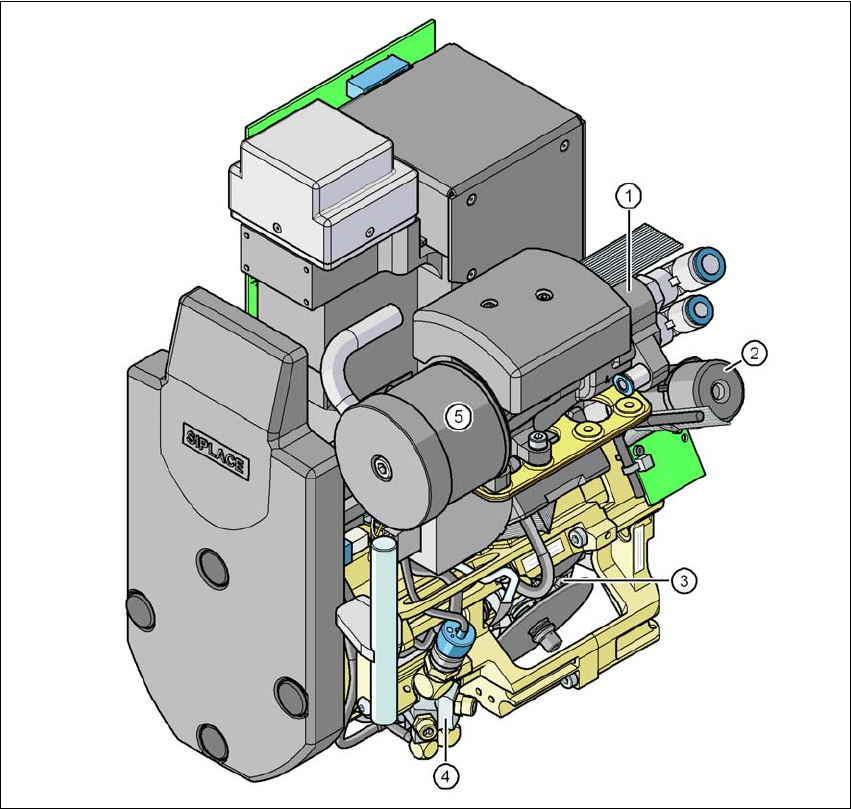

Fig. 3.5 - 5 SIPLACE CP6 - Function groups, part 1
(1) Vacuum generator
(2) Turning station, DP axis
(3) Star with 6 sleeves - star axis
(4) Forced air valve
(5) Silencer
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 12/2014 Edition 3.5 Placement head
123
3
Fig. 3.5 - 6 SIPLACE CP6 - Function groups, part 2
3
(1) Intermediate distributor board, beneath the cover
(2) Star drive - DR motor
(3) Z axis motor
(4) Valve adjustment drive
(5) Component camera, type 30 GigE
3 Technical data and assemblies User manual SIPLACE E
3.5 Placement head From software version SC 708.0 12/2014 Edition
124
3.5.3.1 Description
The SIPLACE CP6 works on the Collect&Place principle. The high-resolution digital component
camera allows the SIPLACE CP6 to place components with an edge length of up to 27 mm accu-
rately and very quickly. It is therefore ideal for use with products containing a large proportion of
ICs. A considerable increase in output can be achieved even in the main application range from
PLCC 44 to QFP 208.
3.5.3.2 Sensor for the component reject bin
Item no. 03103405-xx Sensor for component reject bin
The sensor for the component reject bin monitors whether the reject bin is seated correctly in its
mount.
– If the reject bin was not inserted correctly, the machine cannot be started.
– If the reject bin jumps out of its mount during the placement process, the machine is stopped
immediately to avoid a head crash.
Each reject bin is monitored by a separate sensor.
3.5.3.3 Operation with a vacuum pump
The SIPLACE CP6 can be converted for operation with a vacuum pump for more efficient vacuum
generation (see Section 3.5.4
, page 126).
