5 Working with the machine User manual SIPLACE E 5.6 The user interface From software version SC 708.0 12/2014 Ed ition 208 Board processing terminated If processing is terminated, the PCB icon will be shown in red. Chec…

User manual SIPLACE E 5 Working with the machine

From software version SC 708.0 12/2014 Edition 5.6 The user interface

207

5.6.1 Status field

The status field shows the current machine status, the error which occurred most recently and the

action to be performed (see section 5.7

, page 214).

(Green) Starts the context-sensitive Online Help function for the current view. All operating con-

trols for the current view are explained

(Red) Starts the help system, showing the possible causes of the current errors and suitable solu-

tions (see section 5.7.1

, page 215).

Opens a dialog box in which the error source, error message text and the error date with time are

shown (see section 5.7.1

, page 215). The help function for the current error can also be opened

from here.

Deletes the error currently shown from the status field.

5.6.2 Display and processing area

This area shows the buttons for setting/deleting functions, general information about the board,

setup, recipes and other information.

Animated and color-coded items helps explain processes or states (e.g. editing, empty location

etc.).

The "Production" (basic view) view indicates certain operating states (editing, error etc.).

Stop processing. This stops the current processing run.

Continue processing. This starts or continues board placement.

Placement progress

The placement progress is shown for each board on the chart view.

Boards being processed

The board is taken up by the system and placed. The PCB icon will be shown as a dark green

button.

5 Working with the machine User manual SIPLACE E

5.6 The user interface From software version SC 708.0 12/2014 Edition

208

Board processing terminated

If processing is terminated, the PCB icon will be shown in red.

Check the board

If the board is in the output conveyor and the board status needs to be checked by the operator,

the PCB icon will be shown in yellow.

5.6.3 Toolbar

The toolbar contains buttons for the main station software functions.

These enable you to switch the user interface over to other views and to use the functions avail-

able there (see section 5.6.5

, page 212).

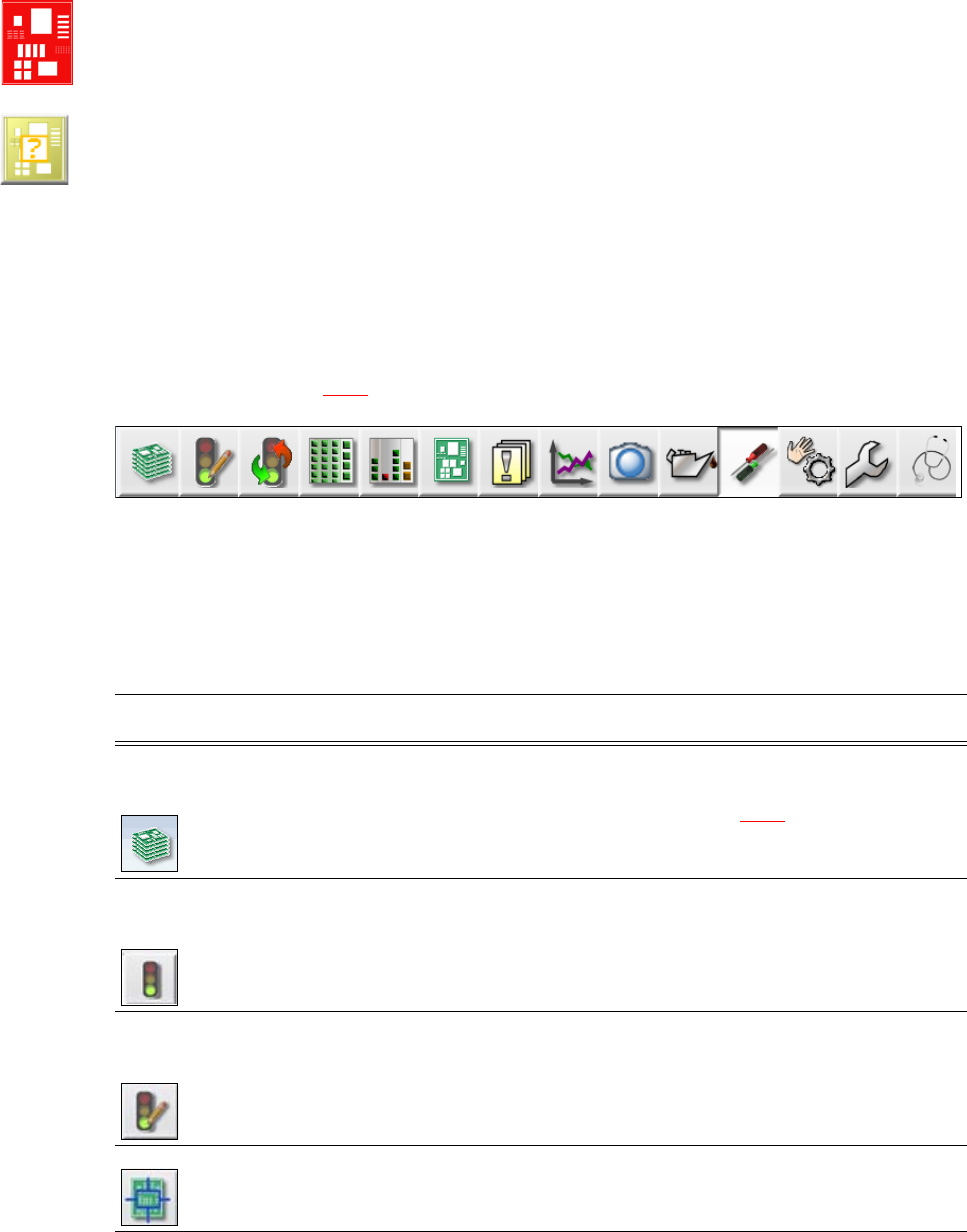

Fig. 5.6 - 2 Toolbar

The buttons vary according to your individual configuration and the operator level set. Some views

are only available in higher operator levels.

The following table briefly describes the buttons and main functions.

Icon View Description

Production

(main view)

Shows the machine status for the most frequently performed tasks

during production.

Shows the operating states, see section 5.6.2

, page 207.

Shows locations, name of setup, name of recipe, configuration

changes and additional options.

Job editor Opens the Job editor for SIPLACE Station Programming. The job

editor allows the user to perform any edit actions in a job. A job in

SIPLACE Station Programming consist of one or more boards and

a setup.

Only available from operator level Advanced Production.

Job control Opens the Job control for SIPLACE Station Programming.

In the job control dialog you can see which board is being produced;

you can stop/start the production of other boards and select a board

for teaching purposes.

Only available from operator level Advanced Production.

Teach job Opens the Teach job for SIPLACE Station Programming.

The teach job completes the parameterization of elements within

the job.

User manual SIPLACE E 5 Working with the machine

From software version SC 708.0 12/2014 Edition 5.6 The user interface

209

Locations The setup can be individually opened for each of the 2 locations.

Allows you to check and configure feeder modules, components

and nozzles.

Allows you to teach component shapes and component pocket

shapes.

Shows the component level indicator.

Filling level Check state of feeders filling level.

Board Shows the boards and placement positions list.

Allows you to check and configure boards and components.

Allows you to teach fiducials.

Messages Shows notifications about current and previous events. The notifi-

cations vary according to their type. Individual tables can be viewed

for track errors, conveyor errors, machine errors, general errors and

linked error messages (see section 5.7

, page 214).

Statistics Shows the statistics for performance, quality and rejected material.

Shows the machine and board performance.

Starts the OIS (Operator Information System), for more information

refer to the OIS documentation.

SIPLACE Vision

live images

Shows the individual live camera images.

Allows you to view and save the Vision dump.

Maintenance Contains information about the maintenance status of the machine.

Refer to the maintenance guide for further information.

Settings Contains all the settings and options.

Allows you to set the operator level and the user interface language.

Allows you to display and edit the machine settings, user settings,

machine options and software options, see section 5.6.5

, page 212.

Manual opera-

tions

Contains information and functions for tests and diagnoses.

Allows you to set the action performed when you press the start

button.

Allows you to test the complete reference run and head functions.

Single functions and continuous runs. Each gantry is addressed

individually.

Service Service tools.

Only available from operator level Machine service.

Allows you to set up and calibrate the SIPLACE placement ma-

chines, download embedded software versions, calibrate and con-

figure the entire machine.

Icon View Description
