User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 12/2014 Edition 5.6 The user interface
213
5.6.6 Application-oriented operation via color-coding markings
Icons, buttons and views can be highlighted in color. These color-coded highlights give you a clear
overview of when operator action is required or when warnings have been issued.
The station software uses the following color coded highlights:
5
Color State Meaning
Red Alert Operator action required.
Only in the view "Feeder modules, components and nozzles".
Orange Warning Operator notification is present.
Immediate operator action is not required.
Only in the view "Feeder modules, components and nozzles".
Green In progress Icon or button has machine under control and state is OK.
Only available in the views "Production", "Feeder Module,
Components and Nozzles", "Board", "Check Sensors and
Functions" and "Service".
Flashes green Waiting for board Replaces the "Busy" state if the machine is ready in production
operations but unable to process because there is no board
present.
Insert a board.
Only in the "Production" view.
5 Working with the machine User manual SIPLACE E
5.7 Messages and online help From software version SC 708.0 12/2014 Edition
214
5.7 Messages and online help
If alerts occur during placement machine operations, the alert message in the status field of the
user interface will be shown in red. The icon (1) for alert information will be active.
The button highlighted in red in the toolbar indicates that operator action is required.
5

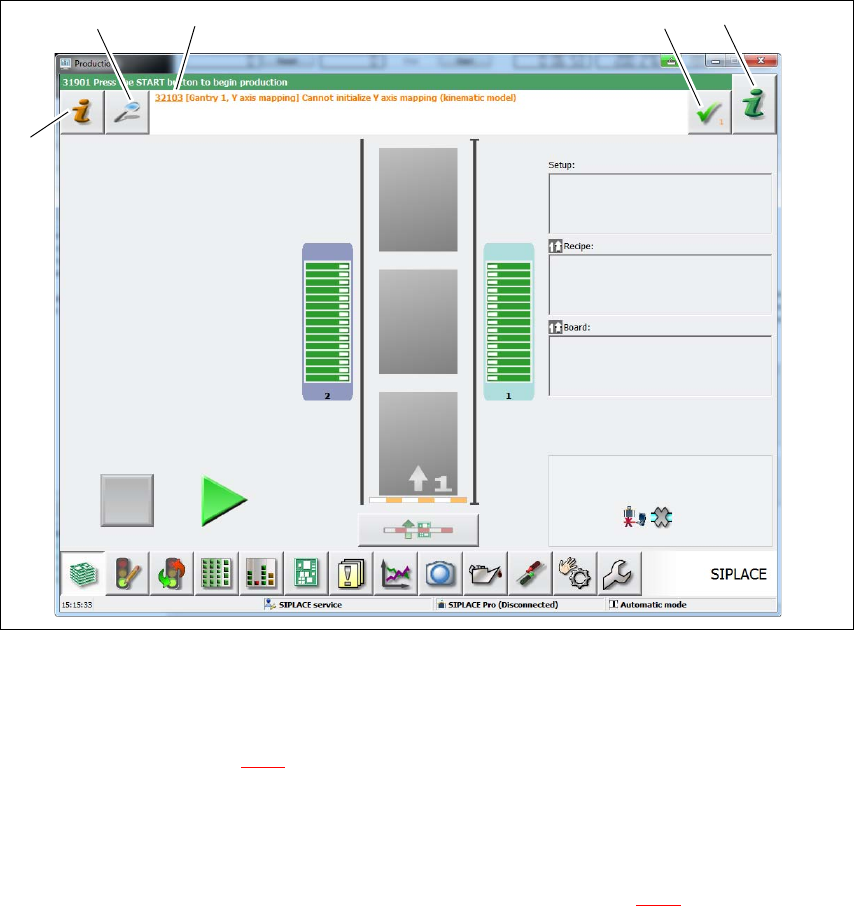

Fig. 5.7 - 1 "Production" view with alert message (example)
Legend for fig. 5.7 - 1
(1) Starts the help system, showing the possible causes of the current errors and suitable
solutions (see section 5.7.1
, page 215).
(2) Opens a dialog box in which the error source, error message text and the error date with time
are shown. The help function for the current error can also be opened from here.
(3) Alert number and brief information about the alert.
(4) Deletes the error currently shown from the status field (see section 5.7.1
, page 215).
(5) Starts the context-sensitive Online Help function for the current view. All operating controls
for the current view are explained.
(1)
(2)
(3) (4)
(5)
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 12/2014 Edition 5.7 Messages and online help
215
5.7.1 "Viewing information about the current alert
5
To view information about the current alert, click on the red icon to start the help system
for the station computer.
The main window of the help system will open with alert information. The information refers to the
alert currently shown and from which the help function was started.
Once an alert has been resolved and the solution has been automatically determined by the ma-
chine, this alert will be automatically removed from the status field.
If the solution is not recognized automatically, the alert can also be manually deleted from the sta-
tus field.
To do this, click on the icon; the alert message will no longer be shown in the status field.
