User manual SIPLACE E 5 Working with the machine From software version SC 708.0 12/2014 Edition 5.15 Refilling co mponents 245 5.15 Refilling components The online help c ontains information on r efilling components wi t…
5 Working with the machine User manual SIPLACE E
5.14 Avoiding track errors From software version SC 708.0 12/2014 Edition
244
5.14.3 Component coordinate system and pickup angle
5
Fig. 5.14 - 1 Position of the component and its pick-up angle
Special
component
Stick
magazine:
Chip-
components
with polarity
0402
2220
The anode must be
aligned with the +X
coordinate.
Package form 0° coordinate system
Position in the feeder module
Pickup angle/
nozzle angle
Tape:
SOT 23
Stick
magazine:
Tape:
Tape:
SO-IC
DIL-IC
SOT 194
Tape:
Holes
Y
X
Y
X
Y
X
Y
X
Y
X
90°
90°
0°
90°
-90°
0°
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 12/2014 Edition 5.15 Refilling components
245
5.15 Refilling components
The online help contains information on refilling components with and without barcodes.
With tape feeder modules, make sure that you always splice on a new tape early enough so
that the feeder modules do not run out of components.
However, do not splice the tapes too early because if you wind the tape onto the new reel
after splicing the end of the old tape, the reel with the new tape may be overfilled. The tape
could then slip off the reel and become tangled. Under certain circumstances, this could
cause pick-up errors and prolonged down times.
5 Working with the machine User manual SIPLACE E
5.16 Docking the changeover table in or out From software version SC 708.0 12/2014 Edition
246
5.16 Docking the changeover table in or out
5.16.1 Safety instructions for docking changeover tables in and out
5
5

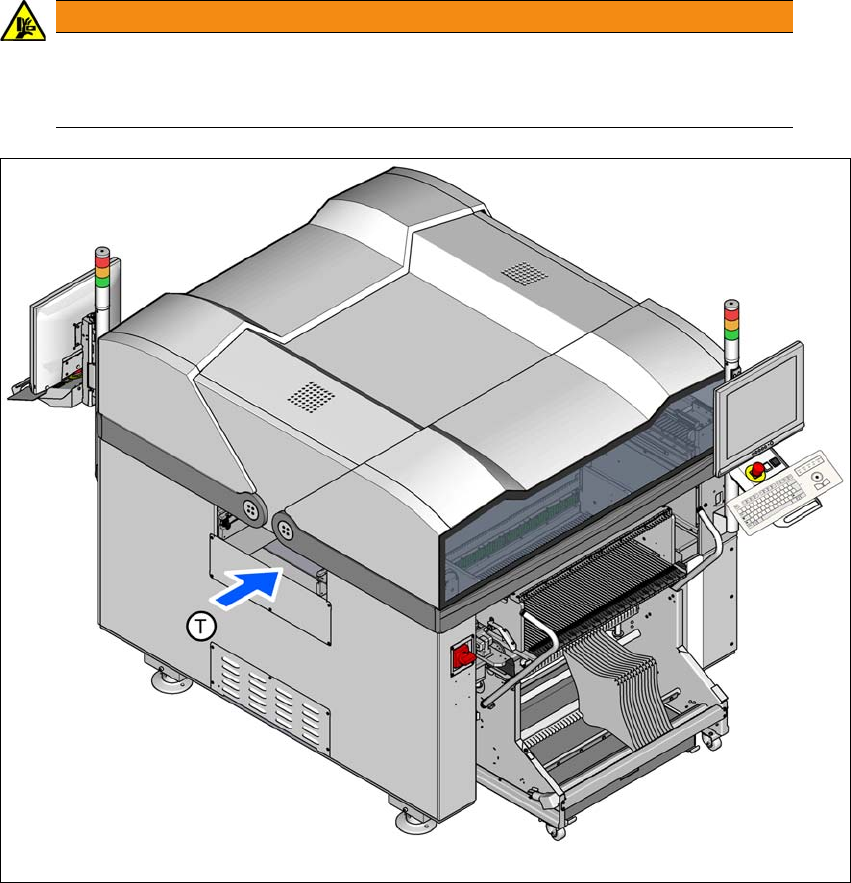

Fig. 5.16 - 1 Safety instructions for docking the changeover table in or out
In addition, the changeover table can only be docked in if the protective covers are closed.
WARNING
DANGER OF CRUSHING!
Risk of crushing when docking and undocking the changeover table.
Always dock/undock the changeover table alone.
