User manual SIPLACE E 6 Station extensions From software version SC 708.0 12/2014 Edition 6.1 Nozzle change r 273 Place the ma gazine on the snap fastener ba lls (item 5 in fig. 6.1 - 5 , page 258 ). Press the magazi…
6 Station extensions User manual SIPLACE E
6.1 Nozzle changer From software version SC 708.0 12/2014 Edition
272
6

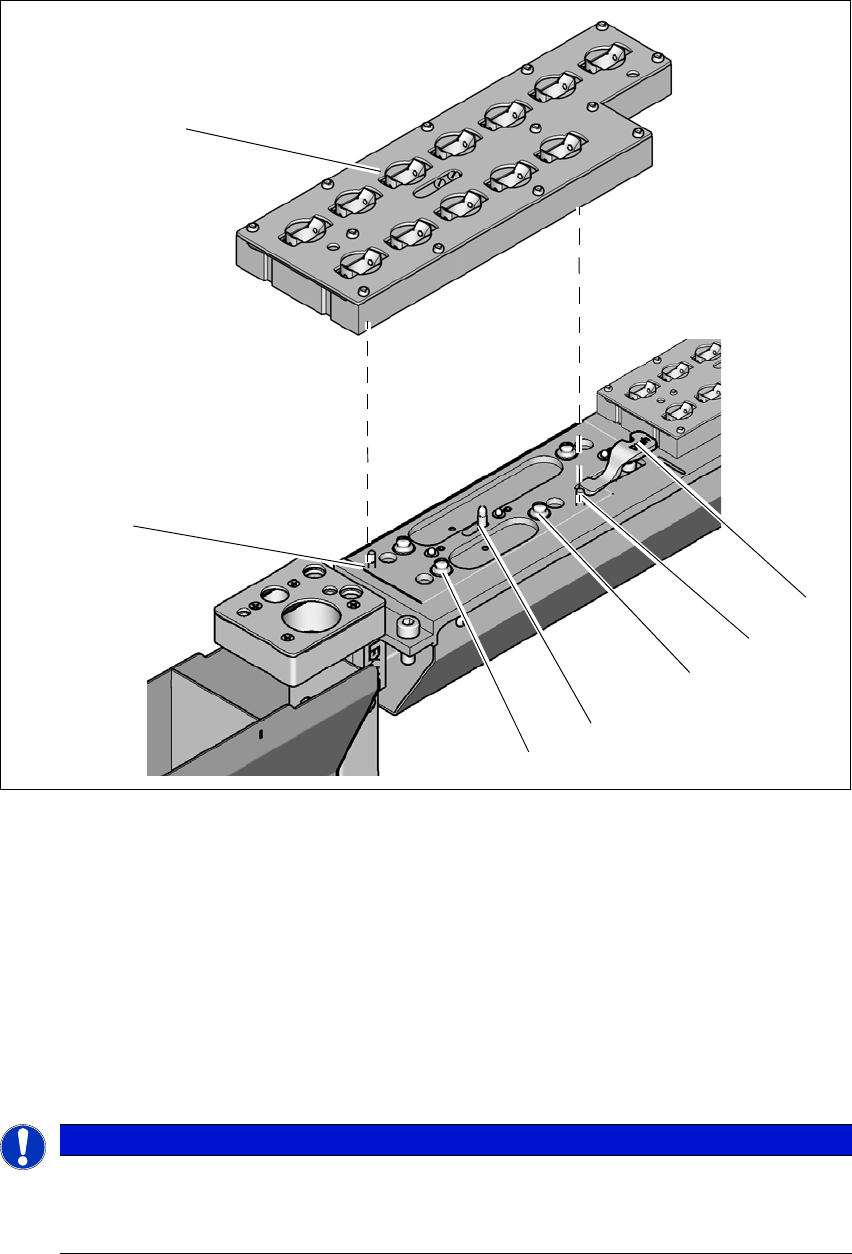

Fig. 6.1 - 14 Nozzle changer for the SIPLACE CP12 - changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) Spring pin (3 x) for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Magazin
6
PLEASE NOTE
Move the locking plate into the "Magazine locked" position.
Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig.
6.1 - 5, page 258) slide into the centering holes and slot.
(1)
(3)
(4)
(5)
(7)
(6)
(2)
User manual SIPLACE E 6 Station extensions
From software version SC 708.0 12/2014 Edition 6.1 Nozzle changer
273
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 5, page 258).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
6 Station extensions User manual SIPLACE E
6.1 Nozzle changer From software version SC 708.0 12/2014 Edition
274
6.1.4 Nozzle changer for the SIPLACE CP6
Item no. 03113131-xx Nozzle changer SIPLACE E, CP6, location 1
Item no. 03113126--xx Nozzle changer SIPLACE E, CP6, location 2
Item no. 03105864-xx Magazine for 1 x 12 nozzles for nozzle type 39xx
Item no. 03106048-xx Magazine for 1 x 6 nozzles for nozzle type 38xx
6
Fig. 6.1 - 15 Nozzle changer for the SIPLACE CP6
(1) Nozzle changer magazin (38xx)
(2) Nozzle changer
(3) Component reject bin
(2)
(3)
(1)
