Installation Manual 1 Introduction
SIPLACE Pro 8.0 Edition 03/2010 US
10
2 System components and configurations Installation Manual
Edition 03/2010 US SIPLACE Pro 8.0
11
2 System components and configurations
2.1 Overview of system components
A complete installation of SIPLACE Pro consists of the following components. 2
2

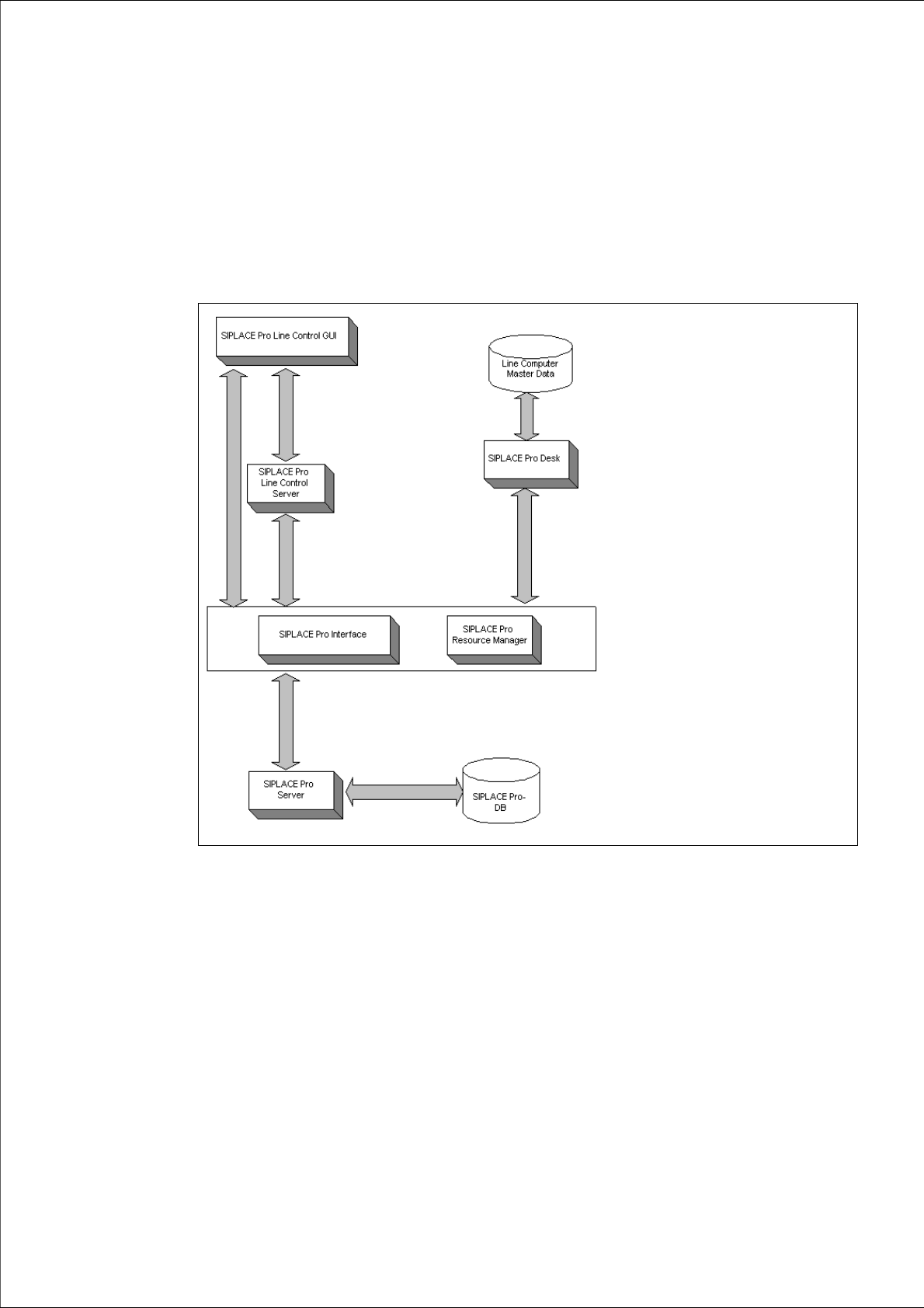

Fig. 2 - 1 Overview of SIPLACE Pro system components
Æ Weitere Installationsanleitungen zum Installieren von Betriebssystemen, Datenbanken,
Netzwerken und zur Datensicherung befinden sich im Ordner ".\SIPLACE NET\NAVIGATION
GUIDE" auf der Support Media DVD Nr.1.
Installation Manual 2 System components and configurations
SIPLACE Pro 8.0 Edition 03/2010 US
12
2.2 System configurations
There are various configurations for the SIPLACE Pro installation depending on your production
environment. 2
2.2.1 "Stand alone" configuration
Install all software components on one computer. This computer then functions as both server and
client. If installing on one computer, we recommend using a computer with at least 512 MB disk
space; a high-performance computer is advantageous. 2
2.2.2 "Client/Server" configurations
If installing on separate computers, you work with one computer as the dedicated server and one
or more other computers as clients. 2
Example of a client/server configuration:
MS SQL Server, SIPLACE Pro Database, Line Control Server and SIPLACE Pro Server are in-
stalled on the server computer. One or more clients can work with this server computer. SIPLACE
Pro Desk, SIPLACE Pro Interface and Line Control GUI are installed on the client computers. 2
Note
This configuration is not mandatory. For example, you can also install Line Control Server on a
client computer or a separate computer.
It is also possible to change the configuration subsequently. 2
Warning:
Installation on separate computers cannot be performed via the network. Install the individual
components on separate computers by calling up the setup function for the components locally on
each destination computer. 2
