Installation Manual 4 Installation of SIPLACE Pro and possible Setup Types

SIPLACE Pro 8.0 Edition 03/2010 US

Step 2

In the "Select languages" dialog box, select the languages you want to install to make them avail-

able for the applications. In addition, select which language should be active first. 4

You can switch the active language subsequently in SIPLACE Pro Desk and Line Control to any

other language installed. 4

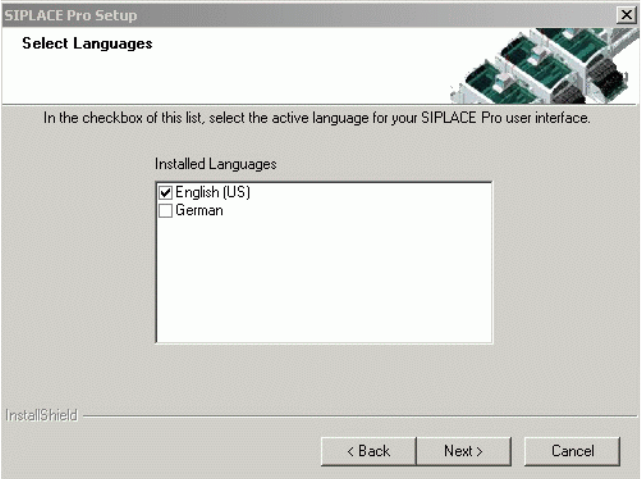

Fig. 4 - 9 "Select Languages" dialog box

Æ Select the check box of the language with which the installed applications like SIPLACE Pro

Desk should start first.

Æ Click Next.

4 Installation of SIPLACE Pro and possible Setup Types Installation Manual

Edition 03/2010 US SIPLACE Pro 8.0

Note

English and German are always installed. You cannot de-select either language. Additional

languages are listed " only if the language pack for this version of SIPLACE Pro has been in-

stalled. 4

Step 3

The "Configuration of SIPLACE Pro Server" dialog box specifies under which Windows user

account the server component of SIPLACE Pro should run. The current domain appears as the

default value in the account text box. This means it is usually sufficient just to add the account

name and the password. However, if this account is local, be sure to change the domain specifi-

cation appropriately. 4

Fig. 4 - 10 "Configuration of SIPLACE Pro" dialog box

Æ Enter the Account and Password for the Windows user in the dialog box.

Æ For new installations and upgrades, the option Access rights is deactivated by default. This

means there is no restriction of access rights on stored objects. We recommend you leave this

deactivated until you have created Users, Groups and set Privileges & Permissions in

SIPLACE Pro Desk. After having done that you may activate the option "Access Rights" by

modifying the option "Security On/Off" in the dialog "Settings" of SIPLACE Pro Desk.

Æ Click Next.

Installation Manual 4 Installation of SIPLACE Pro and possible Setup Types

SIPLACE Pro 8.0 Edition 03/2010 US

Hint

Make sure that the properties for the user account are set to "Password never expires". Otherwise,

as soon as the password has expired, the system will not be operable until the COM+ package

SIPLACE Pro has been reconfigured. This can be done using the script COM+ServerAdmin.vbs,

which is located in the Start Menu (Start -->Programs --> SIPLACE Pro-->Administration -->

COM+Server Administration). For more details please contact your system administrator. 4

After SIPLACE Pro has successfully checked the user account and its administrator rights, the

SQL Server window opens. 4

Step 4

In the "Select SQL-Server" dialog box you enter the information required to connect to the SQL

Server and database. 4

In case a SIPLACE Pro database already exists, the integrity of the database will be checked now.

If the check results in error messages, these messages will be displayed and the setup cannot

continue with this database. Only after selecting another database by choosing another SQL

server instance or after restoring the database in an error-free state setup can continue. 4

Fig. 4 - 11 "Select SQL-Server" dialog box - in case a database exists

Æ Enter the "Password for the SQL Server user "sa", i.e. the SQL server system administrator.

Note
