3 Technical data for the machine User Manual SIPLACE X-Series 3.6 Gantry system From software version SR.605.xx 07/2008 EN Edition 136 3.6 Gantry system 3.6.1 Position of the gantries 3.6.1.1 Position of the gantries for…
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.5 Placement head
135
Programmable set-down
force
1.0 N - 15 N
2.0 N - 30 N
d
1.0 N - 15 N
2.0 N - 30 N
d
Nozzle types 5 xx (standard)
4 xx + adapter
8 xx + adapter
9 xx + adapter
gripper
5 xx (standard)
4 xx + adapter
8 xx + adapter
9 xx + adapter
gripper
Nozzle spacing on the two
Pick&Place heads
70.8 mm 70.8 mm
X/Y accuracy
e
± 26 μm / 3σ, ± 35 μm / 4σ ± 22 μm / 3σ, ± 30 μm / 4σ
Angular accuracy ± 0.05° / 3σ, ± 0.07° / 4σ ± 0.05° / 3σ, ± 0.07° / 4σ
CO camera type 33 25
Illumination level 6 6
Possible illumination level
settings
256
6
256
6
a) Please note that the component range that can be placed is also affected by the pad geometry, the cus-
tomer-specific standards and the packaging tolerances.
b) If the C&P head and TwinHead are combined in a placement area, the maximum dimensions are restricted.
c) If standard nozzles are used
d) SIPLACE High-Force Head, Section 6.6
, page 431.
e) The accuracy value was measured using the vendor-neutral IPC standard.
3 Technical data for the machine User Manual SIPLACE X-Series
3.6 Gantry system From software version SR.605.xx 07/2008 EN Edition
136
3.6 Gantry system
3.6.1 Position of the gantries
3.6.1.1 Position of the gantries for the X4 placement machine
3

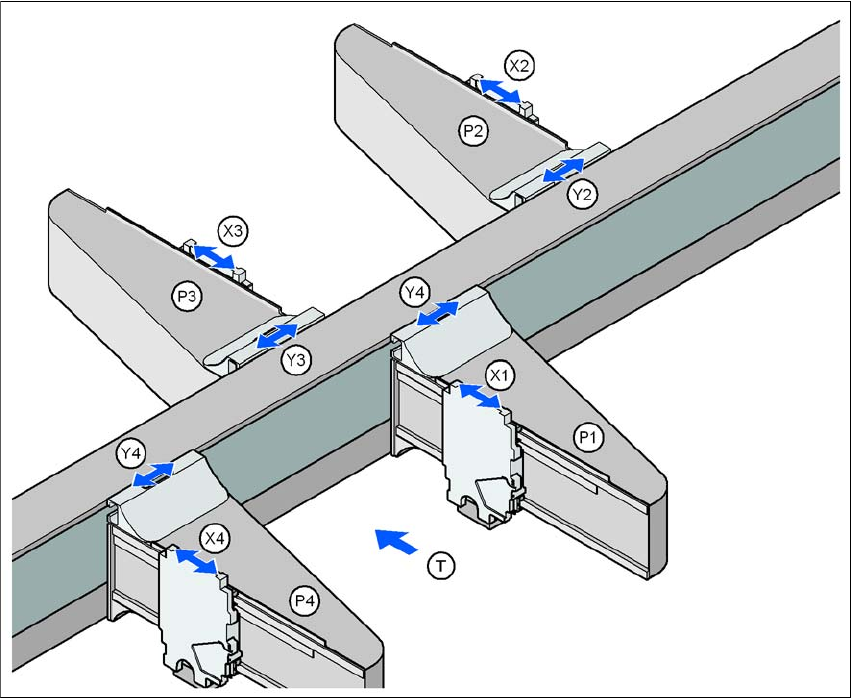

Fig. 3.6 - 1 Position of the gantries for the X4 placement machine
P1, P2, P3, P4 (gantry 1, gantry 2, gantry 3, gantry 4)
X1 X axis, gantry 1
Y1 Y axis, gantry 1
X2 X axis, gantry 2
Y2 Y axis, gantry 2
X3 X axis, gantry 3
Y3 Y axis, gantry 3
X4 X axis, gantry 4
Y4 Y axis, gantry 4
(T) Direction of PCB transport
Placement area 2
Placement area 1
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.6 Gantry system
137
3.6.1.2 Position of the gantries for the X3 placement machine
3

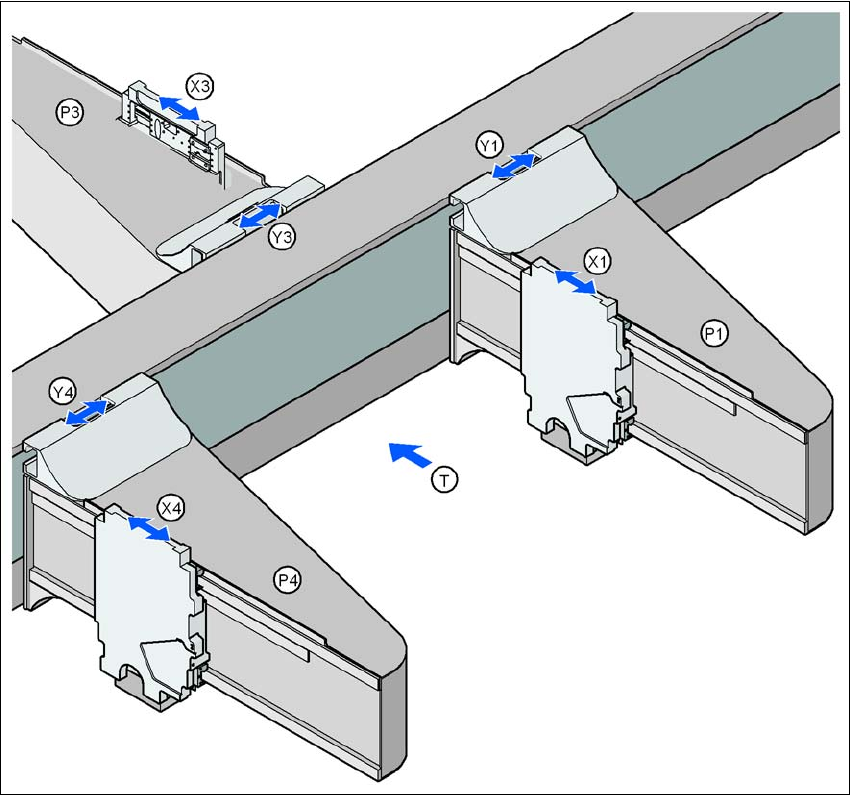

Fig. 3.6 - 2 Position of the gantries for the X3 placement machine
P1 Gantry 1
X1 X axis, gantry 1
Y1 Y axis, gantry 1
P3 Gantry 3
X3 X axis, gantry 3
Y3 Y axis, gantry 3
P4 Gantry 4
X4 X axis, gantry 4
Y4 Y axis, gantry 4
(T) Direction of PCB transport
Placement area 2
Placement area 1
