User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 X feeder modules for the component trolley from the SIPLACE X-series
169
3.9.2.2 12 mm X tape feeder module
3

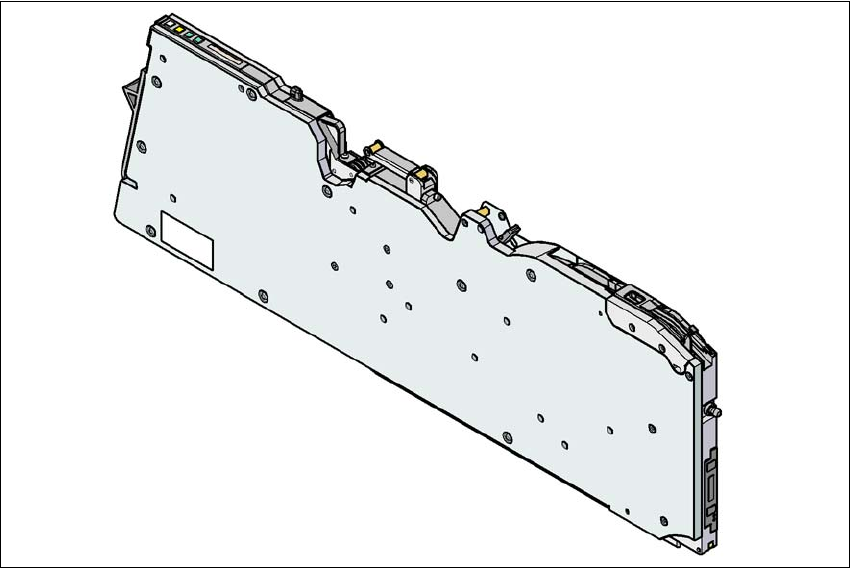

Fig. 3.9 - 4 12 mm X tape feeder module
3
3
3
3
3
12 mm X tape feeder module Item no. 00141271-xx
12 mm X tape feeder module with splice sensor Item no. 00141291-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment From 4 mm to 16 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
≤ 8 s
3 Technical data for the machine User Manual SIPLACE X-Series
3.9 X feeder modules for the component trolley from the SIPLACE X-series From software version SR.605.xx 07/2008 EN Edition
170
3.9.2.3 16 mm X tape feeder module
3
Fig. 3.9 - 5 16 mm X tape feeder module
3
16 mm X tape feeder module Item no. 00141272-xx
16 mm X tape feeder module with splice sensor Item no. 00141292-xx
Width 34.4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 20 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
≤ 8 s
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 X feeder modules for the component trolley from the SIPLACE X-series
171
3.9.2.4 24 mm X tape feeder module
3
Fig. 3.9 - 6 24 mm X tape feeder module
3
3
3
24 mm X tape feeder module Item no. 00141273-xx
24 mm X tape feeder module with splice sensor Item no. 00141293-xx
Width 34.4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 32 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
≤ 8 s
